Starter replacing BOSCH 0001417005 / 0001411025 / 0001410065

Information:

Voltage 24

KW 6.6

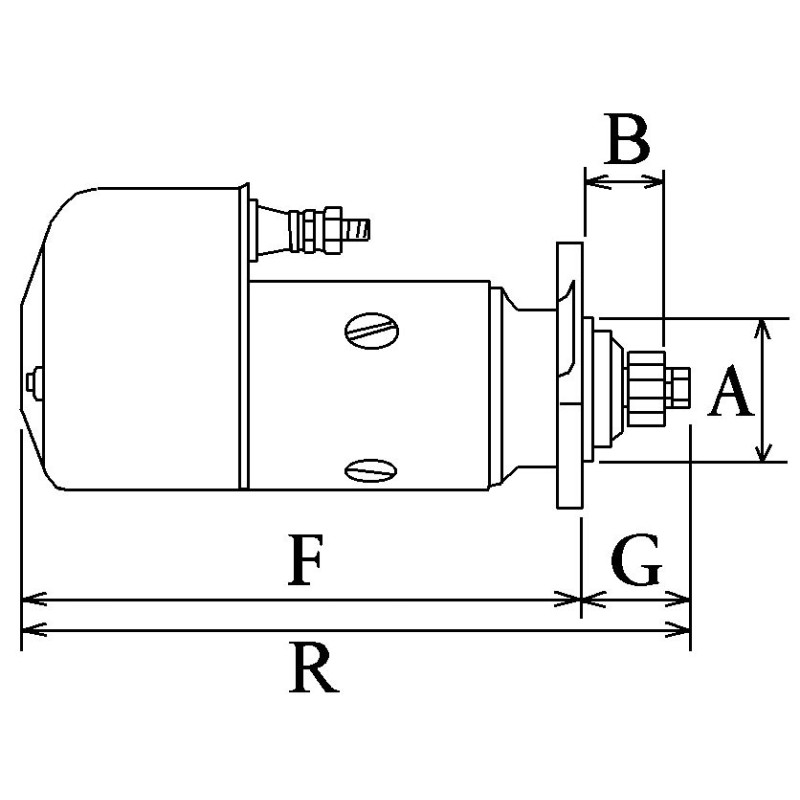

A = Mount flange 115.00

B = Drive distance 20.80

F = Distance / Back 365.35

G = Distance / Front 36.40

H = Nbr of teeth 11

B+ M12

B- M10

Gear type Dd

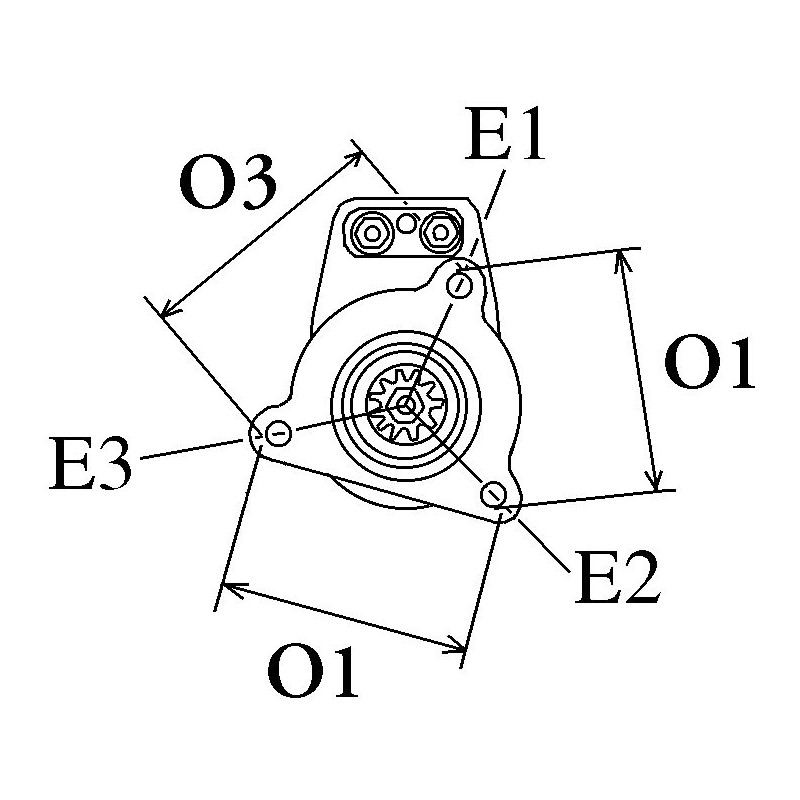

O = Distance 1 127.00

O = Distance 2 127.00

O = Distance 3 127.00

Rotation Cr

Nbr of mounting holes 3 (0)

Drive Tipo Steel

R = Total length mm 407.00

marque générique

= BOSCH 0001417005 / 0001411025 / 0001410065

= Elmot R22.07 / 0070000

= ISKRA AZK5179 / 11.139.020

= MAGNETI MARELLI 63226391 / 63226301

= MAGNETON 9125020

= DELCO REMY 19024053

= FIAT 4732242 / 4782803

= Efel 22703

= AVF im316 / im362 / im605

                                                   NO CORE EXCHANGE NEEDED

                                                                      TWO YEARS WARRANTY
