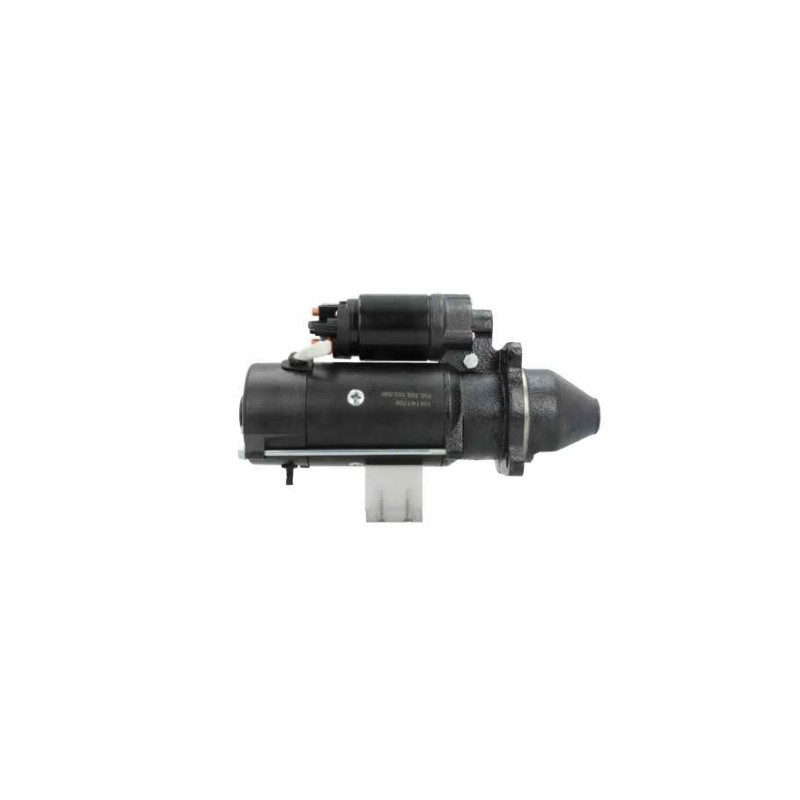

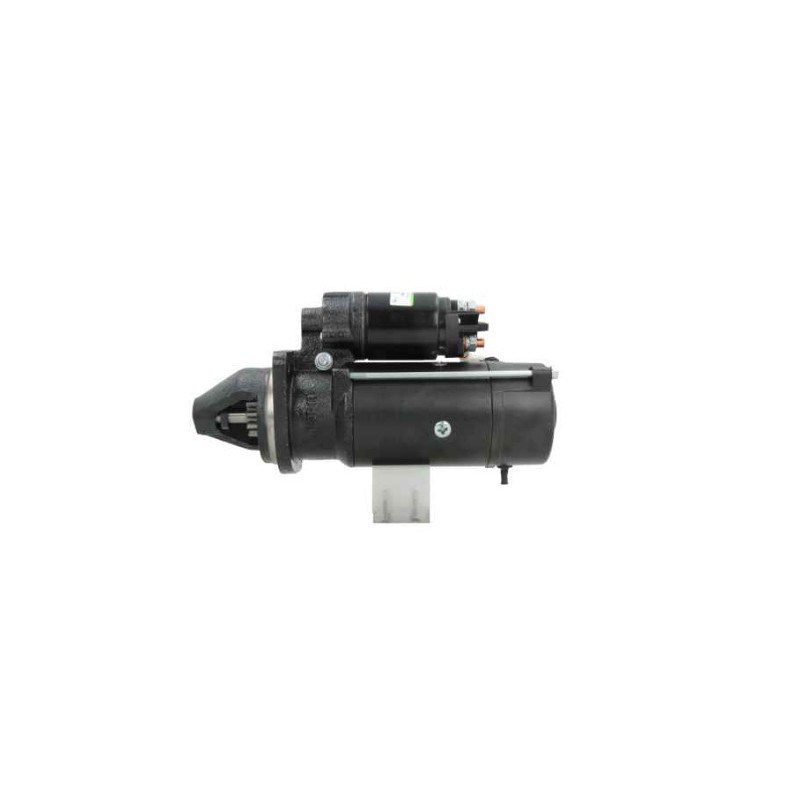

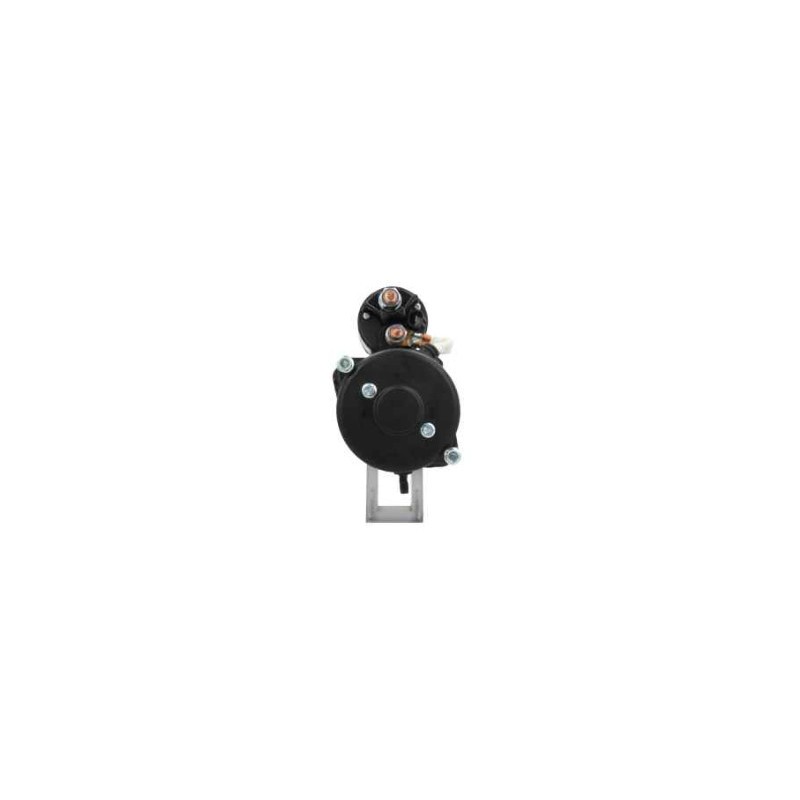

Starter replacing 2873K624 / 2873K625 / 2873K626 / 2873K634 / 11.131.761
Starter replacing 2873K624 / 2873K625 / 2873K626 / 2873K634 / 3873K625 / T410865
BOBCAT 7169477, CATERPILLAR 225 3149, 312 7540, 329 0290, 365 3422, JCB 714/40159 , 714/40159R, 714/40231, 714/40531, 714/40536
OE Starter available here ISKRA under the reference w114388
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information :
Electrical Information | ||
|---|---|---|
| Voltage | 12 | |
| KW | 3.2 | |
Physical Information | ||
|---|---|---|

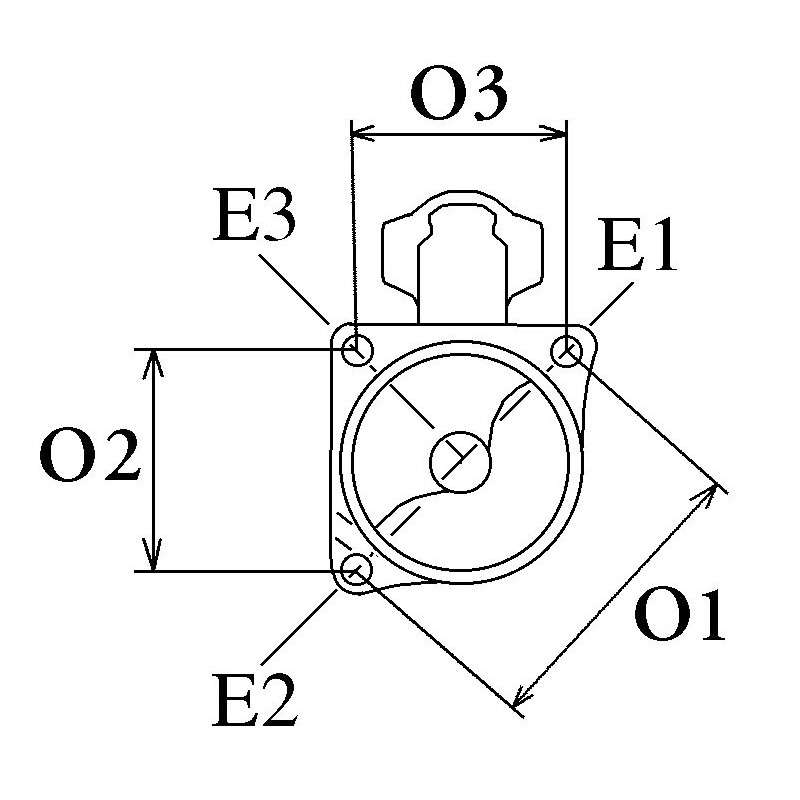

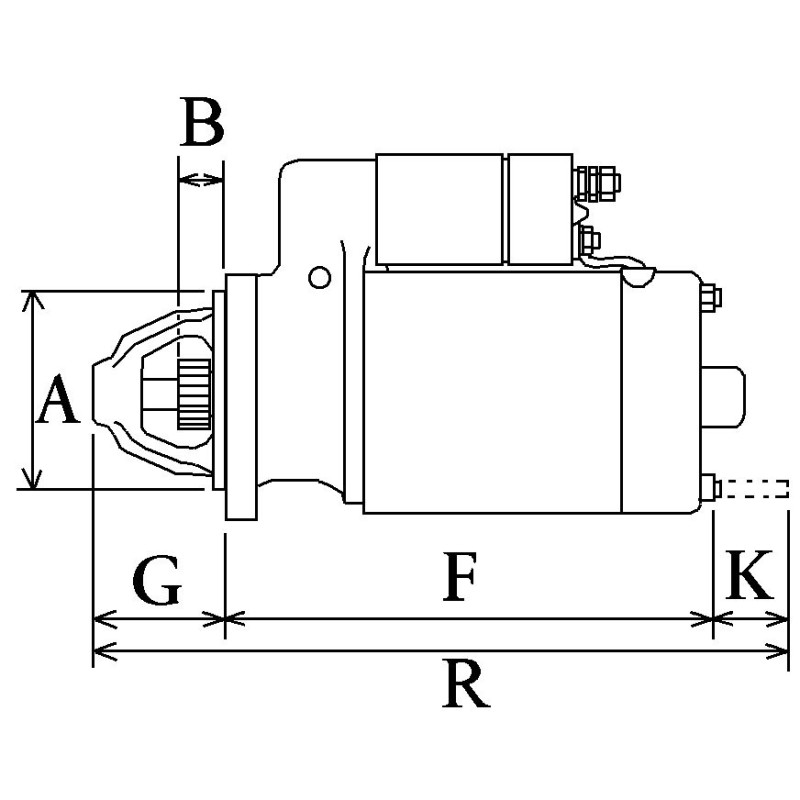

| A | Mount flange | 89.00 |
| E | Mounting holes | 11.05 |
| E | Mounting holes 2 | 11.05 |
| E | Mounting holes 3 | 11.05 |
| B | Drive distance | 29.50 |
| F | Distance / Back | 200.00 |
| G | Distance / Front | 76.00 |
| H | Nbr of teeth | 10 |
| I | B+ | M8 |
| S | B- | M8 |
| N | Gear type | Gr |
| O | Distance mm | 127.00 |
| O | Distance 2 | 89.85 |
| O | Distance 3 | 89.85 |
| P | Rotation | CW |
| R | Total length mm | 296.50 |
generic brand
Replacing | |
|---|---|
| 11.131.077 | ISKRA |
| 11.131.605 | ISKRA |
| 11.131.761 | ISKRA |
| 11.131.781 | ISKRA |
| 11.131.793 | ISKRA |
| 11.131.942 | ISKRA |
| 11.131.947 | ISKRA |
| 11.131.989 | ISKRA |
| 11.132.036 | ISKRA |
| 225-3149 | CATERPILLAR |
| 2873K624 | PERKINS |
| 2873K625 | PERKINS |
| 2873K626 | PERKINS |
| 2873K634 | PERKINS |
| 3821818M91 | MASSEY FERGUSON |
| 3873k625 | PERKINS |
| 714-40159 | JCB |
| 714-40231 | JCB |
| AZE4150 | ISKRA |
| AZE4170 | ISKRA |
| AZE4173 | ISKRA |
| AZE4175 | ISKRA |
| AZE4197 | ISKRA |
| AZE4201 | ISKRA |
| AZE4220 | ISKRA |
| AZF4545 | ISKRA |
Agco Sisu Power 261 946 00, 261 948 00, 291 948 00, BOBCAT 7169477, CATERPILLAR 225 3149, 312 7540, 329 0290, 365 3422, JCB 714/40159 , 714/40159R, 714/40231, 714/40531, 714/40536, LETRIKA (ISKRA) 11.131.761, 11.131.781, 11.132.036, 11.132.506, LETRIKA Old 11.131.605, 11.131.793, 11.131.942, 11.131.947, 11.131.956, 11.131.989, MAGNETI MARELLI 632 800 41, MSN 8041, Original Reference Number 9HT12010A6A, PERKINS Engine 2873K405, 2873K624, 2873K625, 2873K626, 2873K634, 3586849, 3873K627, T410865, PRESTOLITE 860715
Mounted on :
JCB (2003-2007) , MASSEY FERGUSON (1979-1986) , PERKINS (2004-2014)
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
