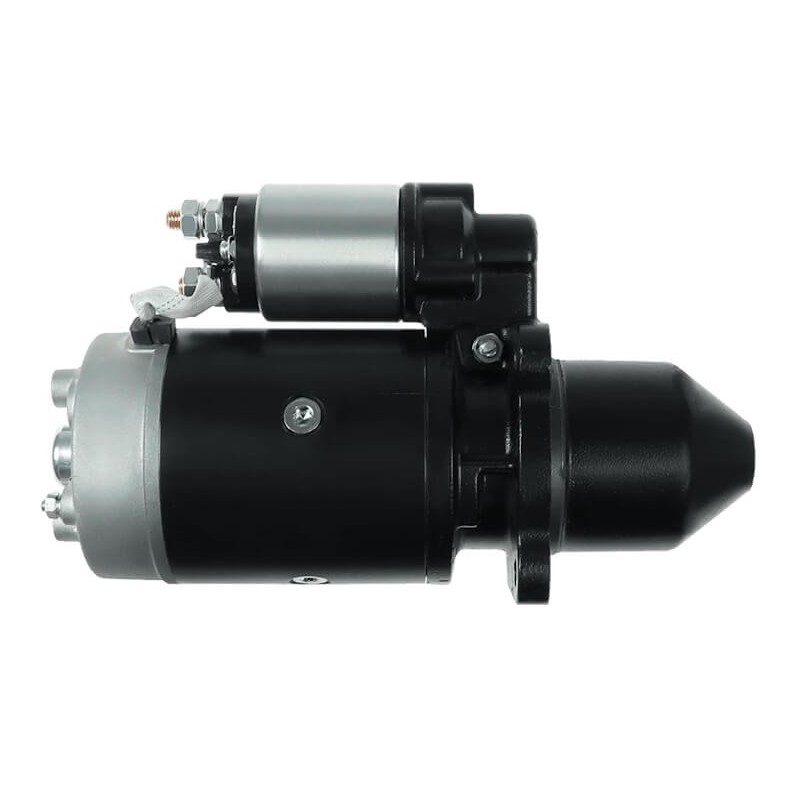

Starter for Case, Payloader
= BOSCH 0001362063 / 0001359074 / 0001359014 / 0001354080 / 0001354073 /0001362300 / 0001367001 / 0001369016 / 0986011130 / 0986017280
= ISKRA AZJ3314 / AZJ3242 / 11.130.889 / 11.130.704 / IS0704
= LUCAS LRS00570 / LRS570
NO CORE EXCHANGE NEEDED
| 0001354073 | BOSCH | LRS00570 | LUCAS |
| 0001354080 | BOSCH | LRS01985 | LUCAS |
| 0001359014 | BOSCH | LRS01988 | LUCAS |
| 0001359074 | BOSCH | LRS1985 | LUCAS |
| 0001362063 | BOSCH | LRS1988 | LUCAS |
| 0001362300 | BOSCH | LRS570 | LUCAS |
| 0001367001 | BOSCH | MAV121910 | SIOM |
| 0986011130 | BOSCH | MAV122330 | SIOM |
| 0986017280 | BOSCH | MS 272 | MAHLE |
| 10503 | KUHNER | MS 352 | MAHLE |
| 11.130.704 | ISKRA / LETRIKA | MSN206 | MAGNETI MARELLI |
| 11.130.889 | ISKRA / LETRIKA | STR22004 | WOODAUTO |
| 111752 | CARGO | S0257 | AS-PL |
| 120-504 | PIC | 220011 | ERA |
| 120-504A | PIC | 220176 | ERA |
| 120-504B | PIC | S12BH0668A2 | SIDAT |
| 120-504C | PIC | ANM13350X | ANDEL |
| 120-504G | PIC | 330266 | LOGISTIK |
| 17228N | WAI / TRANSPO | 330655 | LOGISTIK |
| 19024257 | DELCO | STR10033 | ELECTROLOG |
| 20401191BN | REAL | STR7952 | ELECTROLOG |
| 20401332BN | REAL | STR7918 | ELECTROLOG |
| 20401332EL | REAL | STR10052 | ELECTROLOG |
| 20513058 | PRESTOLITE | 121905A1 | CASE |
| 25-0208 | ELSTOCK | 3055414R92 | CASE |
| 25-0232 | ELSTOCK | 3218675R91 | CASE |
| 25-1118 | ELSTOCK | 3218677R91 | CASE |
| 3055557R92 | CASE | 3228193EX | CASE |
| 33578 | EAI | 3228193R91 | CASE |
| 436077 | VALEO | 3229193EX | CASE |
| 6010191 | SANDO | 3229193R91 | CASE |
| 6010233 | SANDO | STX200747 | STARDAX |
| 8212815 | POWERMAX | 540.004.093.010 | PSH |
| 8649 | CEVAM | 540.004.093.461 | PSH |
| 8649R | CEVAM | 540.004.093.462 | PSH |
| 8811130 | FRIESEN | 540.004.093.311 | PSH |
| 8EA726151-001 | HELLA | PRSJ077 | 3EFFE |
| 9142805 | MAGNETON | STRJ077 | 3EFFE |
| AES5170 | AUTOELECTRO | F032111752 | CARGO |
| AZJ3242 | ISKRA / LETRIKA | DRS1130 | DELCO |
| AZJ3314 | ISKRA / LETRIKA | DRS7280 | DELCO |
| CGB-21130 | AINDE | IS0704 | ISKRA / LETRIKA |
| CS503 | HC PARTS | ||
| CST10191AS | CASCO | ||
| CST10233AS | CASCO | ||
| CST10233ES | CASCO |

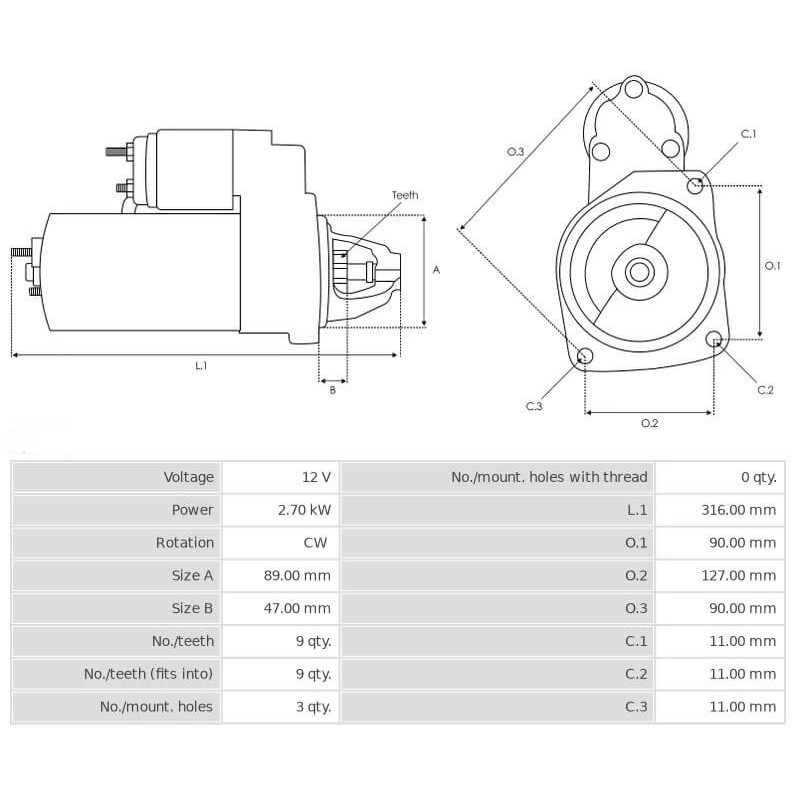

Information:
Voltage 12
KW 2.7
A = Mount flange 89.00
B = Drive distance 47.00
F = Distance / Back 250.50
G = Distance / Front 97.00
H = Nbr of teeth 9
B+ M10
Gear type Dd
O = Distance mm 126.50
O = Distance 2 89.50
O = Distance 3 89.50
Rotation Cr
Nbr of mounting holes 3 (0)
Drive Tipo Steel
R = Total length mm 342.00
generic brand
= BOSCH 0001362063 / 0001359074 / 0001359014 / 0001354080 / 0001354073 /0001362300 / 0001367001 / 0001369016 / 0986011130 / 0986017280
= DELCO REMY DRS7280
= HELLA 8EA726151001
= ISKRA AZJ3314 / AZJ3242 / 11.130.889 / 11.130.704 / IS0704
= LUCAS LRS00570 / LRS570
= MAGNETON 9142805
= PRESTOLITE PBNS3058 / 20513058
= DELCO REMY 19024257
= Case 3228193EX / 3228193R91 / 3229193EX
= International Harvester 3055414R92 / 3055557R92 / 3218677R91 / 3228193R91
= JDR12V18PS / KTR1080002186 / 17228N
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
| Brand | Model | Typ | Year |
| CASE | IH 644 | [D-206] | 01.1974-12.1986 |
| CASE | IH 844 | [D-246] | 01.1974-12.1990 |
| CASE | IH 946 | [D-310] | 01.1974-12.1979 |
| CASE | IH 956 XL | [D-358] | 01.1982-12.1990 |
| CASE | IH 1046 | [D-358] | 01.1974-12.1979 |
| CASE | IH 1056 | [D-358] | 01.1982-12.1985 |
| CASE | IH 1246 | [DT-358] | 01.1974-12.1979 |
