Starter replacing :
0986019010 / DRS3828 / LRS01942
DAF 1516696R, IVECO 500325137, LETRIKA (ISKRA) 11.131.452, AZF4124, MAGNETI MARELLI 063522310110, PRESTOLITE 860817
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Electrical Information |
||
|---|---|---|
| Voltage | 24 | |
| KW | 4.0 | |

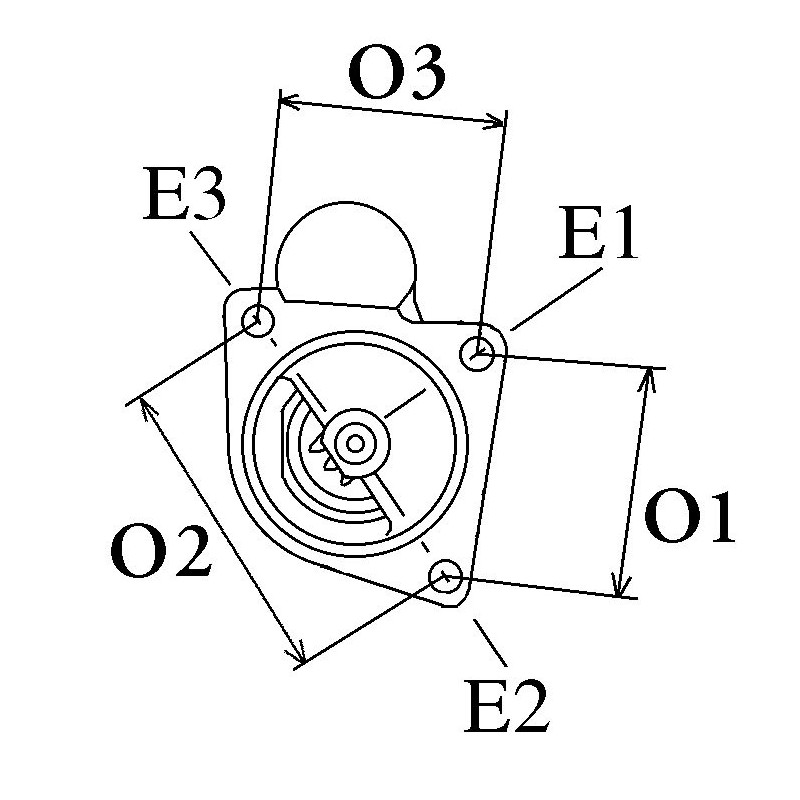

Physical Information |
||
|---|---|---|
| A | Mount flange | 109.80 |
| E | Mounting holes | 12.00 |
| E | Mounting holes 2 | 12.00 |
| E | Mounting holes 3 | 12.00 |
| B | Drive distance | 27.50 |
| F | Distance / Back | 228.50 |
| G | Distance / Front | 76.80 |
| H | Nbr of teeth | 9 |
| I | B+ | M10 |
| N | Gear type | Gr |
| O | Distance mm | 103.00 |
| O | Distance 2 | 146.00 |
| O | Distance 3 | 103.00 |
| P | Rotation | CW |
| R | Total length mm | 315.00 |
Replacing |
|
|---|---|
| 0001231011 | BOSCH |
| 2995104 | IVECO |
| 2997760 | IVECO |
| 500325137 | IVECO |
| cs1248 | HC-PARTS |
generic brand
| 0001123009 | BOSCH |
| 0001231011 | BOSCH |
| 0986019010 | BOSCH |
| 11019010 | EuroTec |
| 11131452 | MAHLE |
| 1206062 | PIC |
| 18959 | Lester |
| 18959N | WAI |
| 2995104 | IVECO |
| 453097 | VALEO |
| 4686SP | Spidan |
| 500325137 | IVECO |
| 501501093 | PSH |
| 860817 | PRESTOLITE |
| 8819010F | Friesen |
| 913828 | EDR |
| A19010 | ATL |
| AZF4121 | MAHLE |
| CS1248 | HC |
| DRS3828 | DELCO REMY |
| HCS1248 | HC |
| IS1169 | MAHLE |
| KTR1003002186 | KTR |
| LRS01942 | LUCAS |
| MS248 | MAHLE |
| STM938 | Rolling Components |
| STR1443sa | Electrolog |
Mounted on :
FIAT - Europe (1978-1982)
IVECO FIAT LCV / Heavy Duty - Europe (1983-2005)
NEW HOLLAND Industrial (1999-2005)
| IVECO | 100 E 15 6.0 | [8060.25.4200LTC][8060.45.5000][8060.45.5001][8060.45.5003][8060.45.5005] | 00.2000- | |
| IVECO | 100 E 18 6.0 | [8060.25V.4000TC] | 00.2000- | |
| IVECO | 100 E 21 6.0 | [8060.25.4280LTC][8060.254200] | 00.2000- | |
| IVECO | 100 E 21 6.0 | [8060.45.4180TCA] | 00.2000- | |
| IVECO | 120 E 18 6.0 | [8060.25V.4080TC] | 00.2000-07.2000 | |
| IVECO | 120 E 23 6.0 | [8060.45.6090] | 00.2000-08.2000 | |
| IVECO | 120 E 23 6.0 | [8060.45S.6800TCA] | 00.2000-08.2000 | |
| IVECO | 130 E 15 6.0 | [8060.25.4280LTC] | 00.2000-07.2000 | |
| IVECO | 130 E 18 6.0 | [8060.25V.4080TC] | 00.2000-07.2000 | |
| IVECO | 130 E 23 6.0 | [8060.45.6090][8060.45S.6000TCA] | 00.2000- | |
| IVECO | 135 E 18 6.0 | [8060.25VTC] | 01.1997-07.2000 | |
| IVECO | 135 E 23 6.0 | [8060.45STCA] | 00.2000- | |
| IVECO | 150 E 18 6.0 | [8060.25V.4000TC][8060.25V.4080TC] | 00.2000-07.2000 | |
| IVECO | 150 E 23 6.0 | [8060.45.6090][8060.45S.6800TCA] | 00.2000-07.2000 | |
| IVECO | 170 E 18 5.8 | [8060.25VTC] | 00.2000-07.2000 | |
| IVECO | 170 E 23 5.8 | [8060.45STCA] | 00.2000- | |
| IVECO | 175-17 5.9 | [8060.25.60.] | 09.1986-07.1992 | |
| IVECO | 180 E 21 6.0 | [8060.45.4100TCA] | 00.2000-07.2000 | |
| IVECO | 260 E 23 6.0 | [8060.45S.6000TCA] | 00.2000-07.2000 | |
| IVECO | 280 E 23 6.0 | [8060.45S.6000TCA] | 00.2000-11.2000 | |
| IVECO | 75 E 15 6.0 | [8060.25.4200LTC] | 00.2000-09.2000 | |
| IVECO | 80 E 15 6.0 | [8060.25.4200LTC] | 00.2000-08.2000 | |
| IVECO | 80 E 18 6.0 | [8060.25V.4000TC] | 00.2000-08.2000 | |
| IVECO | 80 E 21 6.0 | [8060.45.4100TCA][8060.45.4180TCA] | 00.2000-08.2000 | |
| IVECO | 95 E 15 6.0 | [8060.25.4755][8060.25.4760][8060.25.4764] | 00.2000- | |
| IVECO | 95 E 15 6.0 | [8060.45.4702] | 00.2000- | |
| IVECO | 95 E 15 6.0 | [8060.45.5050] | 00.2000-08.2000 | |
| IVECO | 95 E 15 6.0 | [8060.45.5051] | 00.2000-08.2002 | |
| IVECO | 95 E 21 6.0 | [8060.45.4700][8060.45.4704][8060.45.4706] | 00.2000-12.2000 | |
| IVECO | 95 E 21 6.0 | [8060.45.4708] | 00.2000-12.2000 | |
| IVECO | 95 E 21 6.0 | [8060.45.5250][8060.45.5251][8060.45.5255] | 00.2000-08.2000 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.
The part number can be numeric or alphanumeric, and can be found on your part.
Once you've found the part number, enter it in the search bar at the top center of our site.
The result will be the replacement part matching your part number.
