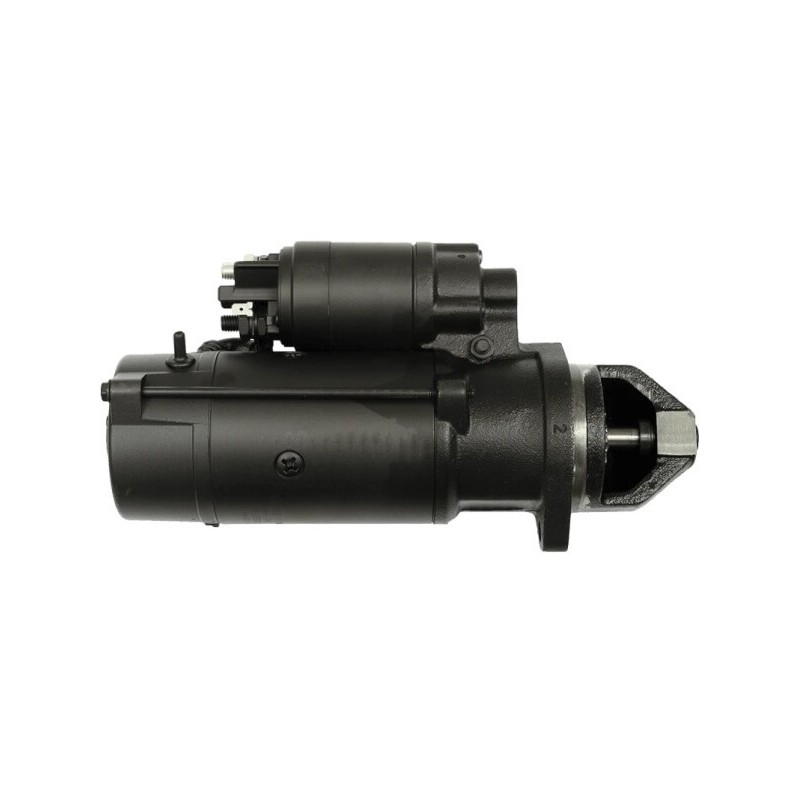

Starter ISKRA 11131607 / 11131863 / AZF4156 / AZF4230

Starter replacing DENSO428000-1691 / 428000-1690

Display all pictures

Starter ISKRA 11131607 / 11131863 / AZF4156 / AZF4230

Reference: W116132

Condition: New product

1 Item Items

63522310180	Magneti Marelli
72735696	Mahle
72740703	Mahle
AZF4156	Mahle
AZF4230	Mahle
AZF4350	Mahle
AZJ3394	Mahle
BOS0001231018	Wood Auto
DRS0366	Remy
DRS0366N	Remy
IS1054	Mahle
IS1236	Mahle
LRS02729	Lucas

More info

More info

Information:

Electrical Information
Voltage		24
KW		4.0

Physical Information
A	Mount flange	82.50
E	Mounting holes	10.90
E	Mounting holes 2	10.90
B	Drive distance	23.00
F	Distance / Back	245.50
G	Distance / Front	74.00
H	Nbr of teeth	9
I	B+	M10
N	Gear type	Gr
O	Distance mm	101.00
P	Rotation	Cr
R	Total length mm	324.00

Replacing
0001101110	BOSCH
0001231018	BOSCH
01181753	KHD
01182126	KHD
01182390	KHD
04300286	KHD
11.131.607	ISKRA
11.131.863	ISKRA
1181753	KHD
1182126	KHD
1182390	KHD
AZF4156	ISKRA
AZF4230	ISKRA

0001231018
0001231018+
0001231018CO
0001231018R
01181753KZ
11131607
11131863
11131863CO
114220
1181753
1182126
1182390
1206370
231329
4300286
511502092
511502092010
511502092090
511502092210
511502092210001
511502092215
511502092310
511502092310001
511502092311
910366
AZF4230
DRS0366
IS1054
IS1236
KTR1023004184
MS622
MS68
MS68+
STR1173sa
STR7975sa
