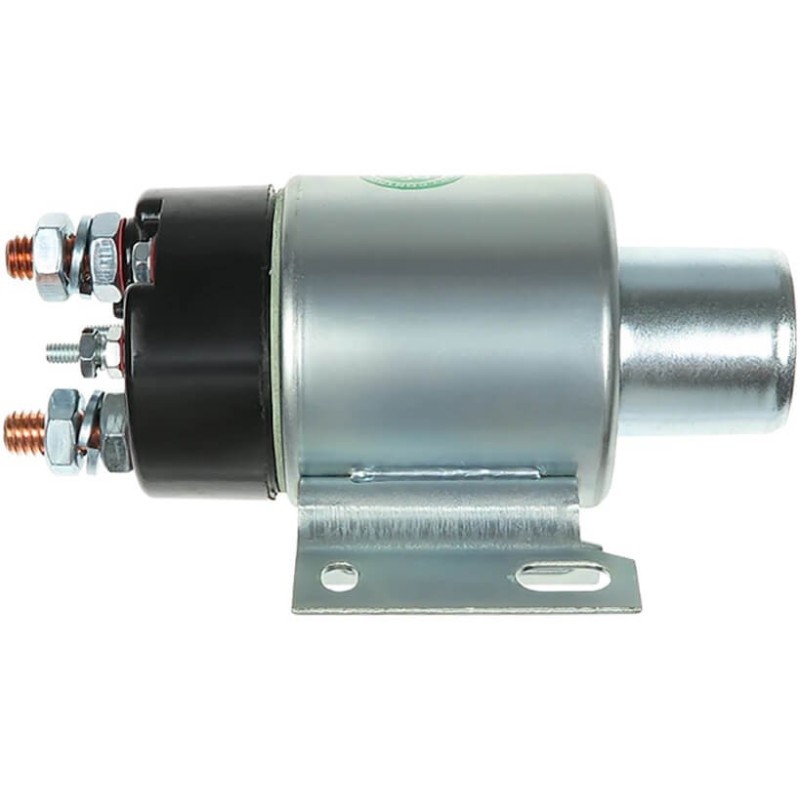

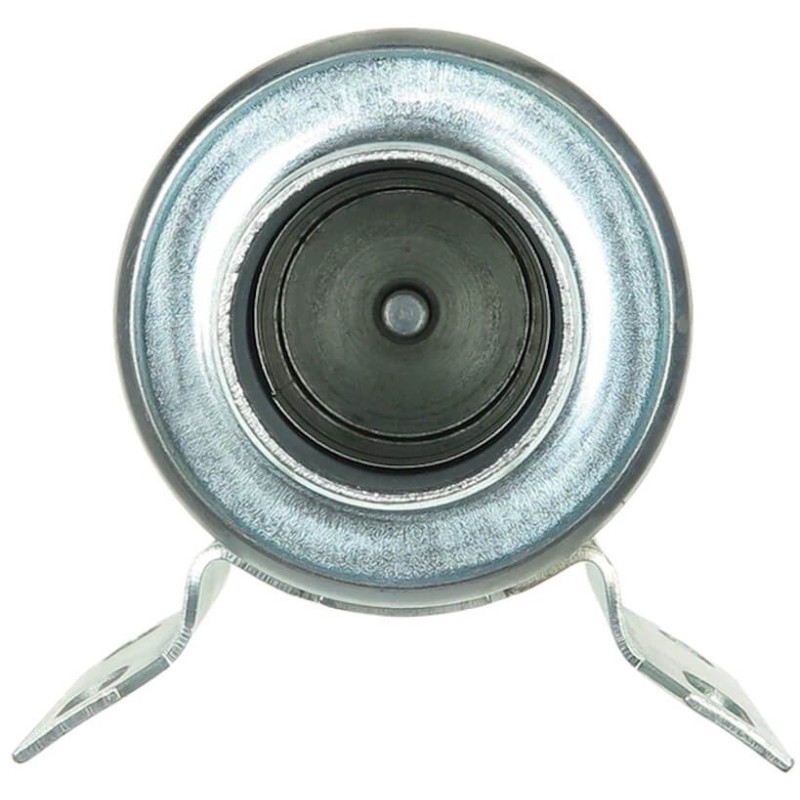

Solenoid for starter DELCO REMY 1113098 / 1119935 / 1115508 / 1115501
30MT, 35MT, 1113059, 1113066,1113070, 1113075, 1113082, 1113083,
1113087, 1113088, 1113089, 1113090,1113091, 1113092
| 1114365 | DELCO |
| 1115501 | DELCO |
| 1115508 | DELCO |
| 1115510 | DELCO |
| 1115529 | DELCO |
| 1115531 | DELCO |
| 1115540 | DELCO |
| 1115582 | DELCO |
| 1119778 | DELCO |
| 1119833 | DELCO |
| 1119877 | DELCO |
| 1119882 | DELCO |
| 1119885 | DELCO |
| 1119890 | DELCO |
| 1119933 | DELCO |
| 1119935 | DELCO |
| 130500 | CARGO |
| 20309401BN | REAL |
| 321507 | CATERPILLAR |
| 66-102 | WAI / TRANSPO |
| 66-102-1 | WAI / TRANSPO |
| CQ2030672 | CQ |
| CSO60104AS | CASCO |
| D954 | DELCO |
| D959 | DELCO |
| D970 | DELCO |
| D971 | DELCO |
| D980 | DELCO |
| D985 | DELCO |
| SND1163 | WOODAUTO |
| SNLS-148 | UNIPOINT |
| SSO60104 | SANDO |
| SOL2605 | ELECTROLOG |
| CQ2030187 | LAUBER |
| F032130500 | CARGO |

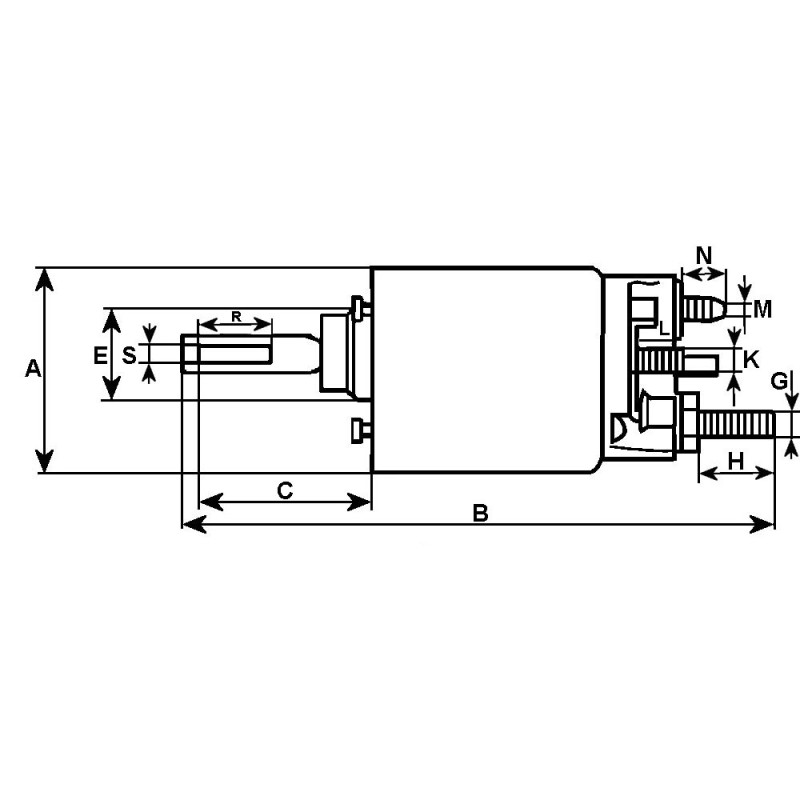

Information:
Physical Information |
||
|---|---|---|
| A | DE mm | 67.15 |
| B | Total length mm | 152.80 |
Support |
||
|---|---|---|
| M | Bolt Coil | 3/8" UNC |
| D | OD/cover mm | 62.90 |
| E | DI capot mm | 32.25 |
| G | B+ | 3/8" UNC |
| H | Height/B+ | 18.50 |
| I | Kl. 15a/mm | 8-32 UNC |
| K | Kl. 50/mm | 10-32 UNF |
| N | Bolt Coil l. | 19.50 |
| J | Height/kl. 15a | 15.50 |
| L | Height/kl. 50 | 11.00 |
| No./terminals | 4 | |
| For | 30MT, 35MT | |
Replacing |
|
|---|---|
| 1114365 | DELCO REMY |
| 1115501 | DELCO REMY |
| 1115508 | DELCO REMY |
| 1115510 | DELCO REMY |
| 1115529 | DELCO REMY |
| 1115531 | DELCO REMY |
| 1115540 | DELCO REMY |
| 1119778 | DELCO REMY |
| 1119833 | DELCO REMY |
| 1119877 | DELCO REMY |
| 1119882 | DELCO REMY |
| 1119885 | DELCO REMY |
| 1119890 | DELCO REMY |
| 1119933 | DELCO REMY |
| 1119935 | DELCO REMY |
| 321507 | CATERPILLAR |
| d954 | DELCO REMY |
| d959 | DELCO REMY |
| d970 | DELCO REMY |
| d971 | DELCO REMY |
| d980 | DELCO REMY |
| 1108092 | DELCO |
| 1113001 | DELCO |
| 1113006 | DELCO |
| 1113034 | DELCO |
| 1113038 | DELCO |
| 1113040 | DELCO |
| 1113049 | DELCO |
| 1113050 | DELCO |
| 1113052 | DELCO |
| 1113053 | DELCO |
| 1113056 | DELCO |
| 1113059 | DELCO |
| 1113066 | DELCO |
| 1113070 | DELCO |
| 1113075 | DELCO |
| 1113082 | DELCO |
| 1113083 | DELCO |
| 1113087 | DELCO |
| 1113088 | DELCO |
| 1113089 | DELCO |
| 1113090 | DELCO |
| 1113091 | DELCO |
| 1113092 | DELCO |
| 1113093 | DELCO |
| 1113095 | DELCO |
| 1113097 | DELCO |
| 1113098 | DELCO |
| 1113100 | DELCO |
| 1113102 | DELCO |
| 1113104 | DELCO |
| 1113106 | DELCO |
| 1113111 | DELCO |
| 1113114 | DELCO |
| 1113119 | DELCO |
| 1113121 | DELCO |
| 1113126 | DELCO |
| 1113130 | DELCO |
| 1113131 | DELCO |
| 1113132 | DELCO |
| 1113136 | DELCO |
| 1113138 | DELCO |
| 1113139 | DELCO |
| 1113149 | DELCO |
| 1113150 | DELCO |
| 1113153 | DELCO |
| 1113154 | DELCO |
| 1113155 | DELCO |
| 1113159 | DELCO |
| 1113160 | DELCO |
| 1113164 | DELCO |
| 1113165 | DELCO |
| 1113167 | DELCO |
| 1113169 | DELCO |
| 1113171 | DELCO |
| 1113172 | DELCO |
| 1113176 | DELCO |
| 1113177 | DELCO |
| 1113179 | DELCO |
| 1113182 | DELCO |
| 1113183 | DELCO |
| 1113184 | DELCO |
| 1113187 | DELCO |
| 1113192 | DELCO |
| 1113193 | DELCO |
| 1113194 | DELCO |
| 1113195 | DELCO |
| 1113196 | DELCO |
| 1113197 | DELCO |
| 1113198 | DELCO |
| 1113200 | DELCO |
| 1113201 | DELCO |
| 1113202 | DELCO |
| 1113203 | DELCO |
| 1113206 | DELCO |
| 1113209 | DELCO |
| 1113213 | DELCO |
| 1113215 | DELCO |
| 1113216 | DELCO |
| 1113217 | DELCO |
| 1113218 | DELCO |
| 1113220 | DELCO |
| 1113223 | DELCO |
| 1113228 | DELCO |
| 1113229 | DELCO |
| 1113231 | DELCO |
| 1113232 | DELCO |
| 1113233 | DELCO |
| 1113234 | DELCO |
| 1113235 | DELCO |
| 1113236 | DELCO |
| 1113237 | DELCO |
| 1113243 | DELCO |
| 1113245 | DELCO |
| 1113302 | DELCO |
| 1113303 | DELCO |
| 1113339 | DELCO |
| 1113340 | DELCO |
| 1113345 | DELCO |
| 1113346 | DELCO |
| 1113367 | DELCO |
| 1113368 | DELCO |
| 1113373 | DELCO |
| 1113376 | DELCO |
| 1113377 | DELCO |
| 1113378 | DELCO |
| 1113380 | DELCO |
| 1113381 | DELCO |
| 1113383 | DELCO |
| 1113402 | DELCO |
| 1113409 | DELCO |
| 1113626 | DELCO |
| 1113633 | DELCO |
| 1113634 | DELCO |
| 1113635 | DELCO |
| 1113636 | DELCO |
| 1113637 | DELCO |
| 1113639 | DELCO |
| 1113640 | DELCO |
| 1113641 | DELCO |
| 1113642 | DELCO |
| 1113644 | DELCO |
| 1113646 | DELCO |
| 1113647 | DELCO |
| 1113648 | DELCO |
| 1113650 | DELCO |
| 1113651 | DELCO |
| 1113652 | DELCO |
| 1113653 | DELCO |
| 1113654 | DELCO |
| 1113655 | DELCO |
| 1113656 | DELCO |
| 1113657 | DELCO |
| 1113659 | DELCO |
| 1113660 | DELCO |
| 1113661 | DELCO |
| 1113662 | DELCO |
| 1113663 | DELCO |
| 1113665 | DELCO |
| 1113667 | DELCO |
| 1113668 | DELCO |
| 1113672 | DELCO |
| 1113673 | DELCO |
| 1113676 | DELCO |
| 1113680 | DELCO |
| 1113683 | DELCO |
| 1113685 | DELCO |
| 1113688 | DELCO |
| 1113690 | DELCO |
| 1113695 | DELCO |
| 1113696 | DELCO |
| 1113697 | DELCO |
| 1114662 | DELCO |
The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.
The part number can be numeric or alphanumeric, and can be found on your part.
Once you've found the part number, enter it in the search bar at the top center of our site.
The result will be the replacement part matching your part number.
