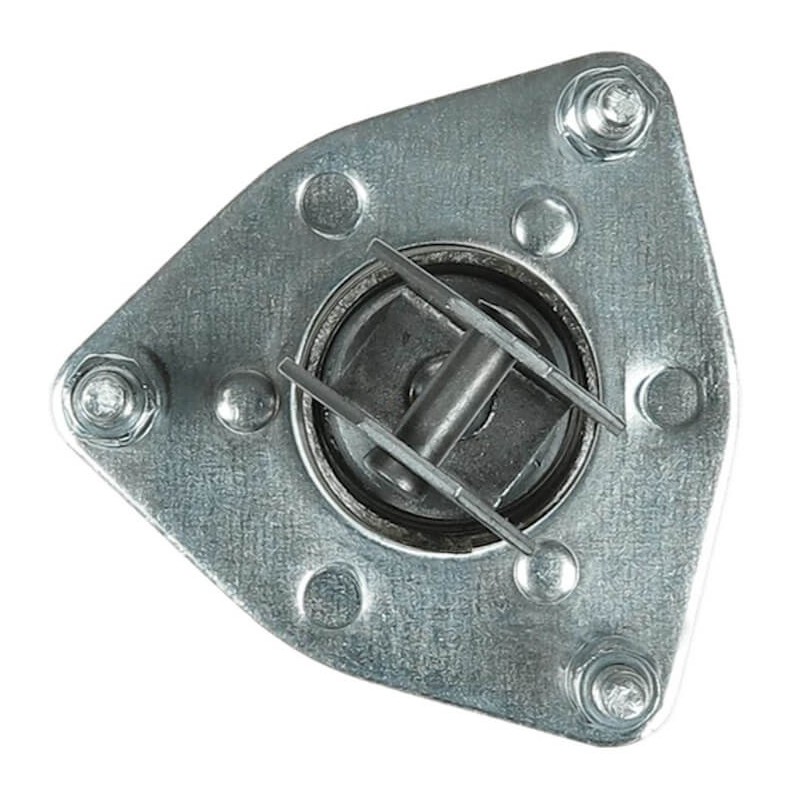

Solenoid for starter MAGNETI MARELLI 63220700 / 63220701 / 63220703 / 63220721
Solenoid for starter FIAT / MAGNETI MARELLI
Replacing | |
|---|---|
| 30430-1 | FEMSA |
| 4189658 | FIAT |
| 4267879 | FIAT |
| 4275899 | FIAT |
| 63600400 | MAGNETI MARELLI |
| 63902000 | MAGNETI MARELLI |
| zm-650 | ZM |
fits starter:
| 63220700 | 63220702 | 63220730 | 63220733 |
| 63222403 | 63222700 | 63222701 | 63224008 |
More info
Physical Information | ||
|---|---|---|
| A | DE mm | 54.70 |
| B | Total length mm | 148.85 |
Support | ||
|---|---|---|
| M | Bolt Coil | M8 |
| D | OD/cover mm | 64.35 |
| G | B+ | M8 |
| H | Height/B+ | 22.40 |
| K | Kl. 50/mm | 6.30 |
| N | Bolt Coil l. | 22.40 |
| L | Height/kl. 50 | 22.80 |
| No./terminals | 3 | |
Electrical Information | ||
|---|---|---|
| Voltage | 12 | |
generic brand
| 63220700 | MAGNETI MARELLI |
| 63220701 | MAGNETI MARELLI |
| 63220703 | MAGNETI MARELLI |
| 63220721 | MAGNETI MARELLI |
| 63220743 | MAGNETI MARELLI |
