w136632
New product
2 Item Items

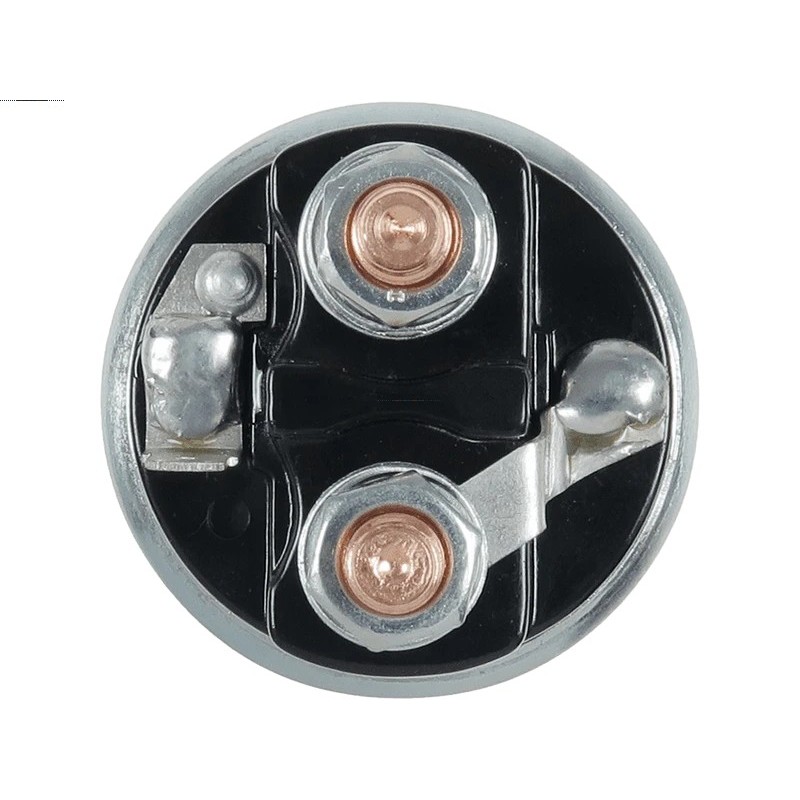

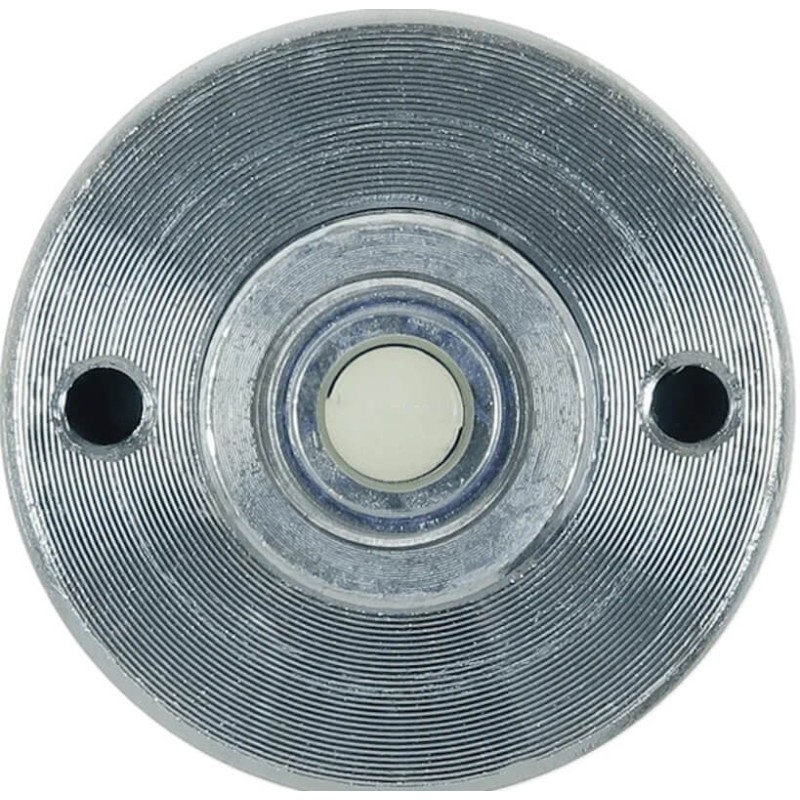

Solenoid for starter :
FORD 1416219, 4518785, 6L5T-11000-CA, 6L5Z-11002-CA, 6L5Z-11002-CBRM, 6L5Z-11V002-CARM, 81AB-11000-EB, 86AB-11000-HA, 86AB-11000-RA, F87Z-11002-AARM, F87Z-11002-CARM, F89Z-11002-BARM, FO2Z-11002-A, FO7U-11000-AA, FOFZ-11002-A

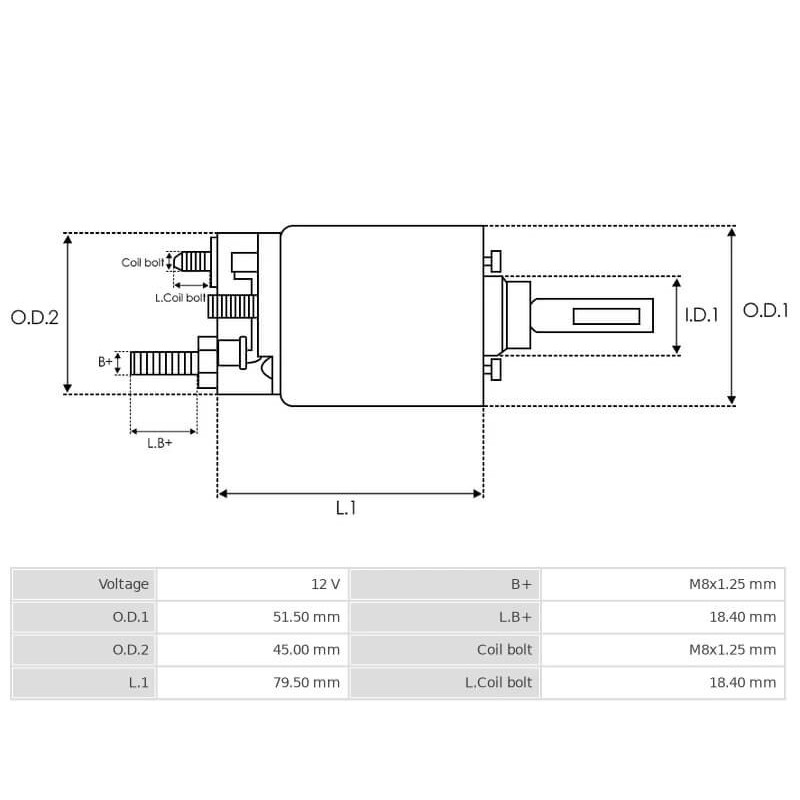

Physical Information | ||
---|---|---|
A | DE mm | 51.40 |
B | Total length mm | 126.90 |
Support | ||
---|---|---|
M | Bolt Coil | M8 |
G | B+ | M8 |
H | Height/B+ | 15.50 |
K | Kl. 50/mm | 6.30 |
N | Bolt Coil l. | 15.50 |
No./terminals | 3 |
Electrical Information | ||
---|---|---|
Voltage | 12 |
brand / transpo
= Reference :
FORD E2VU-11390-AA, E90Z-11390-A, E9OF-11390-AA, E9OF-11390-BA, E9OZ-11390-A, E9OZ-11390-B, F02F-11390-AA, F02U-11390-AA, F02Z-11390-A, F0OU-11390-AA, F3CU-11390-AA, F3CZ-11390-A, F3VU-11390-AA, F3VY-11390-A, F3VY-11390-B, F4DU-11390-AA, F4DZ-11390-A, SW2188, SW2207, SW2245, SW2502A, SW5038, OUTBOARD MARINE CORP (OMC) 3854194, 987883
fits starter :
FORD 1416219, 4518785, 6L5T-11000-CA, 6L5Z-11002-CA, 6L5Z-11002-CBRM, 6L5Z-11V002-CARM, 81AB-11000-EB, 86AB-11000-HA, 86AB-11000-RA, 86AB-11000-VA, 91AB-11000-BA, 91AB-11000-BJ, 91AB-11000-EA, 93BB-11000-DB, E90F-11000-AA, E90F-11000-AA, E90F-11000-BA, E90Y-11002-A, E90Y-11002-B, E9OF-11000-AA, E9OF-11000-BA, E9OY-11002-A, E9OY-11002-B, E9SF-11000-AA, E9SF-11000-BA, E9SZ-11002-A, E9SZ-11002-B, E9SZ-11002-BRM, F02F-11000-AA, F02U-11000-AA, F02Z-11002-A, F07U-11000-AA, F07U-11000-BA, F0CF-11000-AA, F0CF-11000-BA, F0CU-11000-AA, F0CU-11000-AB, F0CU-11000-BA, F0CU-11001-AA, F0CU-11001-AB, F0CU-11001-BA, F0FZ-11002-A, F0FZ-11002-ARM, F0FZ-11002-B, F0FZ-11002-BRM, F0OU-11000-AA, F0OY-11000-AA, F0OY-11002-A, F0OY-11002-ARM, F0TZ-11002-A, F0TZ-11002-B, F0TZ-11002-BRM, F13U-11000-AA, F13Z-11002-A, F13Z-11002-ARM, F17U-11000-AB, F1TZ-11002-A, F1TZ-11002-ARM, F1VU-11000-AA, F1VY-11002-A, F1VY-11002-ARM, F23U-11000-AA, F23U-11000-BC, F23Z-11002-A, F23Z-11002-ARM, F23Z-11002-B, F23Z-11002-BRM, F2DU-11000-AA, F2DU-11000-BA, F2DZ-11002-A, F2DZ-11002-B, F2HT-11000-AA, F2HT-11000-BA, F2HZ-11002-A, F2HZ-11002-ARM, F2HZ-11002-B, F2HZ-11002-BRM, F2TU-11000-AA, F2TU-11000-BA, F2TU-11000-CA, F2TZ-11002-A, F2TZ-11002-ARM, F2TZ-11002-B, F2TZ-11002-BRM, F2TZ-11002-C, F2TZ-11002-CRM, F2VU-11000-AB, F2VU-11000-AC, F2VU-11000-AD, F2VY-11002-A, F2VY-11002-ARM, F3DU-11000-AA, F3DU-11000-BA, F3DZ-11002-A, F3DZ-11002-ARM, F3DZ-11002-ARM, F3DZ-11002-B, F3DZ-11002-BRM, F3LU-11000-AA, F3LY-11002-A, F3LY-11002-ARM, F4CU-11000-AA, F4CU-11000-BA, F4CU-11000-BB, F4FU-11000-AA, F4LU-11000-AA, F67U-11000-AA, F67Z-11002-AA, F67Z-11002-AARM, F6DU-11000-AA, F6DZ-11002-A, F6DZ-11002-ARM, F77U-11000-AA, F77Z-11002-AA, F77Z-11002-AC, F77Z-11002-ACRM, F7UZ-11002-AARM, F87Z-11002-AARM, F87Z-11002-CARM, F89Z-11002-BARM, FO2Z-11002-A, FO7U-11000-AA, FOFZ-11002-A, FOFZ-11002-ARM, FOFZ-11002-B, FOFZ-11002-BRM, FOOY-11002-A, FOOY-11002-ARM, FOTZ-11002-A, FOTZ-11002-ARM, FOTZ-11002-B, FOTZ-11002-BRM; FORD ENGINEERING E90F-AA, E90F-AA, E90F-BA, E9OF-AA, E9OF-BA, E9SF-AA, E9SF-BA, F02F-AA, F02U-AA, F07U-BA, F0CF-AA, F0CF-BA, F0CU-AA, F0CU-AB, F0CU-BA, F0OU-AA, F0OY-AA, F13U-AA, F17U-AB, F1VU-AA, F23U-AA, F23U-BC, F2DU-AA, F2DU-BA, F2HT-AA, F2HT-BA, F2TU-AA, F2TU-BA, F2TU-CA, F2VU-AB, F2VU-AC, F2VU-AD, F3DU-AA, F3DU-BA, F3LU-AA, F4CU-AA, F4CU-BA, F4CU-BB, F4FU-AA, F4LU-AA, F67U-AA, F6DU-AA, F77U-AA, FO7U-AA, RM1U2J11000BA, RM4U2J11A230GA, RM4U2J11A230HA, RM4U2J11A230JA, RM4U2J11A230KA, RM4U2J11A230LA, RM4U2J11A230MA, RM4U2J11A230NA, RM4U2J11A230PA, RM4U2J11A230RA, RM4U2J11A230SA, RM4U2J11A230TA; JLG Industries 7012679
MAZDA 1F82-18-400A, ZZL0-18-400, ZZL1-18-400, ZZM0-18-400, ZZM1-18-400
OUTBOARD MARINE CORP (OMC) 3854190, 987811
TOYOTA 27060-96001; VOLVO-PENTA 3854190-0
