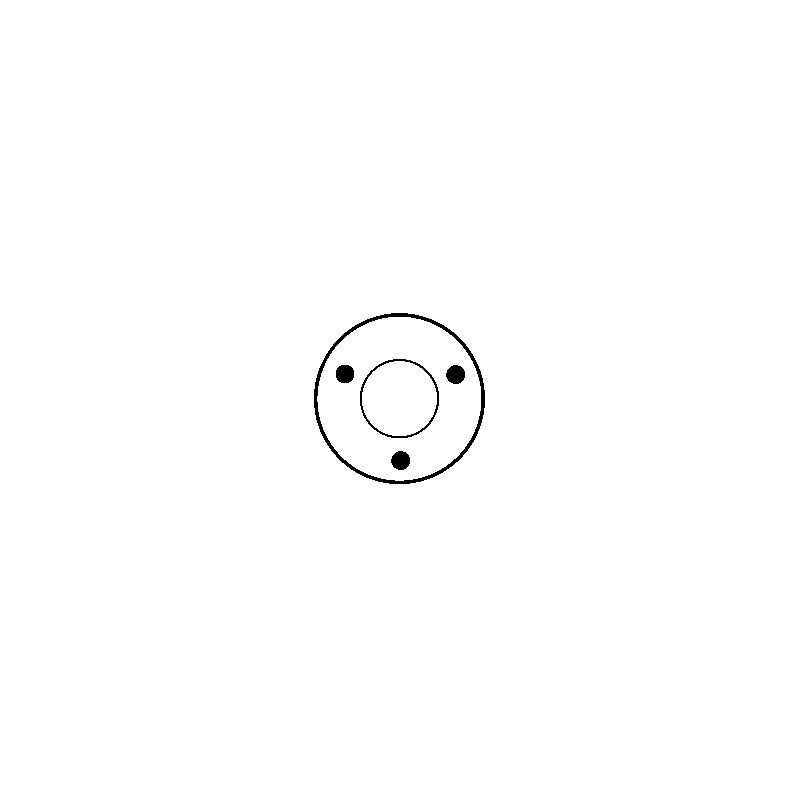

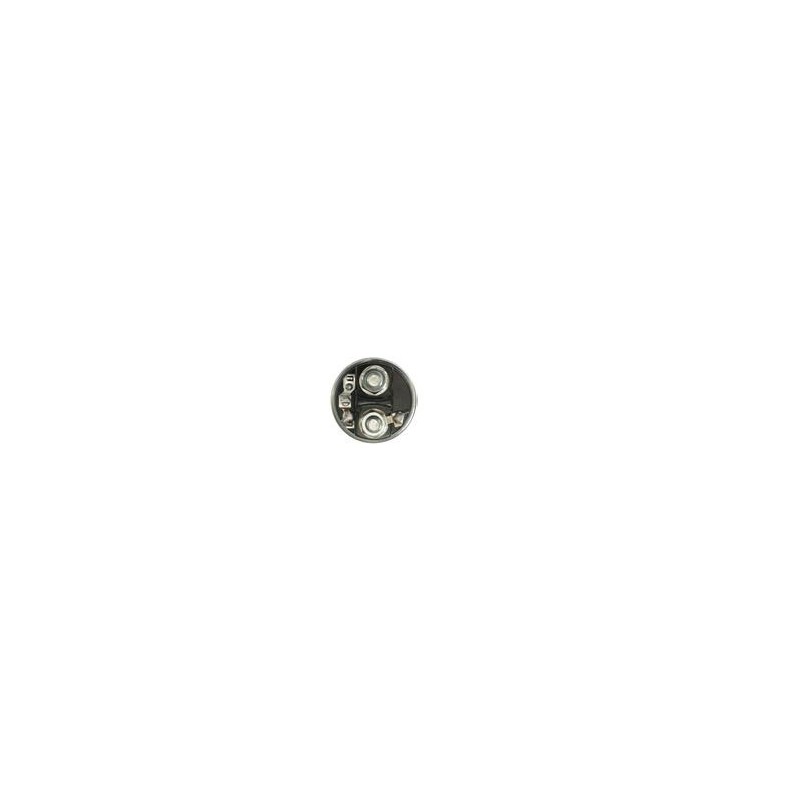

Solenoid for starter BOSCH 0001354016 / 0001354018 / 0001354029
Solenoid / Relay / for starter BOSCH
= BOSCH 0331402509 / 0331402077 / 0331401508 / 0331401027 / 0331401015 / 0331400011 / 0331400009 / 0331400007
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 12 | |
Physical Information | ||
|---|---|---|
| A | DE mm | 60.90 |
| B | Total length mm | 173.60 |
Support | ||
|---|---|---|
| M | Bolt Coil | M10 |
| D | OD/cover mm | 53.35 |
| E | DI capot mm | 30.00 |
| G | B+ | M10 |
| H | Height/B+ | 24.70 |
| K | Kl. 50/mm | M4S |
| T | Kl. 30h/mm | M10 |
| U | Height/kl. 30h | 15.75 |
| N | Bolt Coil l. | 17.00 |
| L | Height/kl. 50 | 3.80 |
| No./terminals | 3 | |
Replacing | |
|---|---|
| 0331400003 | BOSCH |
| 0331400006 | BOSCH |
| 0331400007 | BOSCH |
| 0331400009 | BOSCH |
| 0331400011 | BOSCH |
| 0331401015 | BOSCH |
| 0331401027 | BOSCH |
| 0331401508 | BOSCH |
| 0331402077 | BOSCH |
| 0331402509 | BOSCH |
| 08440 | EFEL |
| zm-541 | ZM |
for starter :
Agria 1142566685, 1142566685; Bomag 057-109-24, 057-109-28, 057-109-89, 057-260-08, 05710922; Bosch 0 001 354 012, 0 001 354 013, 0 001 354 027, 0 001 354 029, 0 001 354 031, 0 001 354 036, 0 001 354 038, 0 001 354 041, 0 001 354 048, 0 001 354 055, 0 001 354 064, 0 001 354 077, 0 001 354 078, 0 001 354 079, 0 001 354 082, 0 001 354 086, 0 001 354 087, 0 001 354 088, 0 001 354 089, 0 001 354 090, 0 001 354 091, 0 001 354 093, 0 001 354 094, 0 001 354 095, 0 001 354 096, 0 001 354 097, 0 001 354 099, 0 001 354 100, 0 001 354 103, 0 001 354 106, 0 001 354 108, 0 001 354 109, 0 001 354 113, 9 000 143 200, 9 000 143 201, EJD 1.8/12 R104, EJD 1.8/12 R70; DAF 175390, 547044; Hanomag Massey Ferguson 130939701, 162839700; Hatz 40000700, 40087300; IHC, Navistar 711 104 R 92; KHD 116-1386, 117-0048, 117-0048, 128-7135, 130-1831, 130-3920; Letrika (Iskra) 11.131.140, 11.132.389; Letrika (Iskra) Tech. AZE4285, AZE4294, AZJ3123, AZJ3140, AZJ3149, AZJ3150, AZJ3166, AZJ3192, AZJ3192, AZJ3192, AZJ3197, AZJ3255, AZJ3386; Magneton 9-124-340, 9-142-602, 9-142-880, 9-144-820; Mercedes-Benz 000-151-52-01, 000-151-86-01, 001-151-13-01, 001-151-60-01, 001-151-91-01, 002-151-95-01, 003-151-21-01, A0021519501, A0031512101; MWM Diesel 065720100012, 605720100047, 605720100059; Prestolite 20513051, 20540106, 20540106; Renault 0855159400; Thermo King 44-220, 45-220; Volvo 870346
