Rectifier for alternator BOSCH 0120300518 / 0120300519 / 0120300522
Rectifier for alternator BOSCH
0120300518, 0120300519, 0120300522, 0120300523, 0120300527, 0120300528, 0120300529, 0120300532, 0120300533, 0120300540, 0120300544, 0120300545, 0120300546, 0120300547, 0120300548, 0120300549, 0120300550, 0120300551, 0120300558, 0120300559, 0120300560, 0120300563
More info
Information:

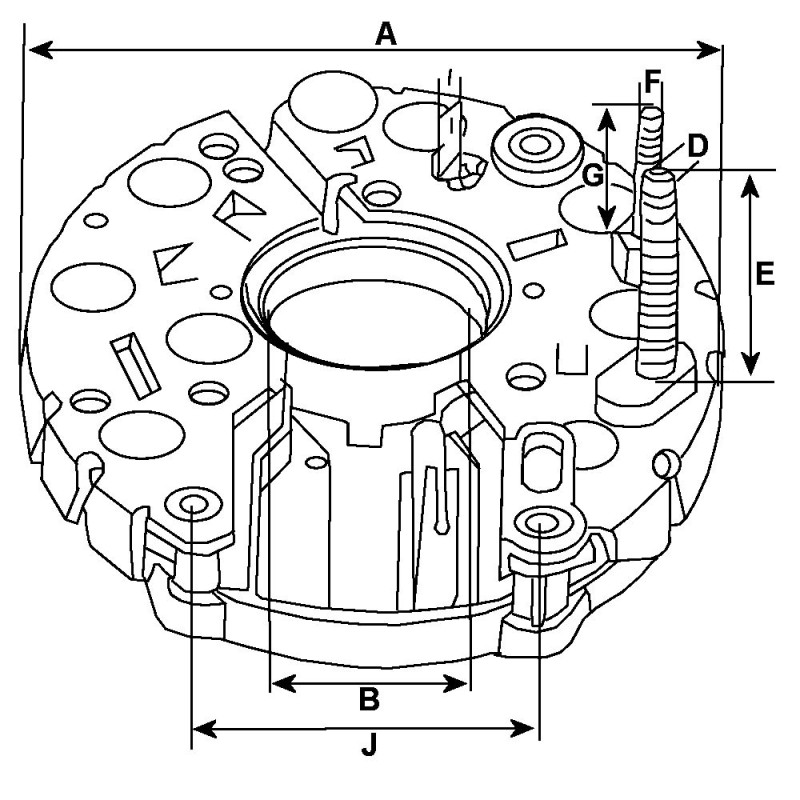

Physical Information | ||
|---|---|---|
| B+ type | Spade | |
| A | DE mm | 90.00 |
| B | DI mm | 33.00 |
| J | Mount. dist. | 75.00 |
| Capacitor | Without | |
| Plug D+ | Spade | |
| Number of Diodes | 6 | |
Replacing | |
|---|---|
| 1127320102 | BOSCH |
| 1127320114 | BOSCH |
| 1127320122 | BOSCH |
| 1127320124 | BOSCH |
| 1127320151 | BOSCH |
| 1127320173 | BOSCH |
| 1127320327 | BOSCH |
| 8223891 | FIAT |
| 82273891 | FIAT |
| 9121140549 | BOSCH |
| 9921409 | FIAT |
| 9923275 | FIAT |
| 9924967 | FIAT |
| ubb401 | LUCAS |
generic brand
ALFA ROMEO 700208000000/00
BOSCH 1 127 320 102, 1 127 320 114, 1 127 320 122, 1 127 320 124, 1 127 320 151, 1 127 320 327, 9 121 140 549
FIAT 4474564, 8223891, 82273891, 9921409, 9923275, 9924967, 9927730
FORD 71BB-10304-AA
HANOMAG MASSEY FERGUSON 582-901-738, LUCAS 21221421, UBB401
MAGNETI MARELLI 74995801, 940038204
MERCEDES-BENZ 000-154-12-16
= BOSCH 9121140549 / 1127320327 / 1127320173 / 1127320151 / 1127320124 / 1127320122 / 1127320114 / 1127320102
for alternator BOSCH :
0120300518
0120300519
0120300522
0120300523
0120300524
0120300528
0120300529
0120300532
0120300533
0120300540
Autre Alternators :
ALFA ROMEO 510943
BOSCH 0 120 300 518, 0 120 300 519, 0 120 300 522, 0 120 300 523, 0 120 300 527, 0 120 300 528, 0 120 300 529, 0 120 300 532, 0 120 300 533, 0 120 300 540, 0 120 300 544, 0 120 300 545, 0 120 300 546, 0 120 300 547, 0 120 300 548, 0 120 300 549, 0 120 300 550, 0 120 300 551, 0 120 300 558, 0 120 300 559, 0 120 300 560, 0 120 300 563, 0 120 300 564, 0 120 300 568, 0 120 300 569, 0 120 300 587, 0 120 300 588, 0 120 300 591, 0 120 300 746, 0 120 339 502, 0 120 339 503, 0 120 339 504, 0 120 339 505, 0 120 339 506, 0 120 339 509, 0 120 339 510, 0 120 339 517, 0 120 339 518, 0 120 339 519, 0 120 339 520, 0 120 339 522, 9 120 143 020, 9 120 143 207, 9 120 143 214, 9 120 143 215, 9 120 143 224;
FIAT 4224325, 4257063, 4257074, 4257771, 4275283, 4325179, 82271547
FORD 71BB-10300-CA, 71BB-10300-CB, 71BB-10346-CA
FORD ENGINEERING 71BB-CA, 71BB-CB
KHD 116-3985
LANCIA 4242498, 4375481
LETRIKA Old IA 0143
MAGNETON 9-515-310, 9-515-311, 9-515-343, 9-516-721, 9-516-722
MERCEDES-BENZ 006-154-29-02, A0061542902
PRESTOLITE 20130133, 66021637, 66021637
Mounted on :
DEUTZ (1971-1975) , FIAT (1971-1974) , KHD (1967-1985)
