Rectifier for alternator BOSCH 0123520003 / 0123520004 / 0123520006
= BOSCH f00m053201 / F00M053200 / 1127319700
for alternator BOSCH :
0123520003 / 0123520004 / 0123520006 / 0123520007 / 0123520008
0123520010 / 0123520011 / 0123520012
0123520013 / 0123520014
Information:

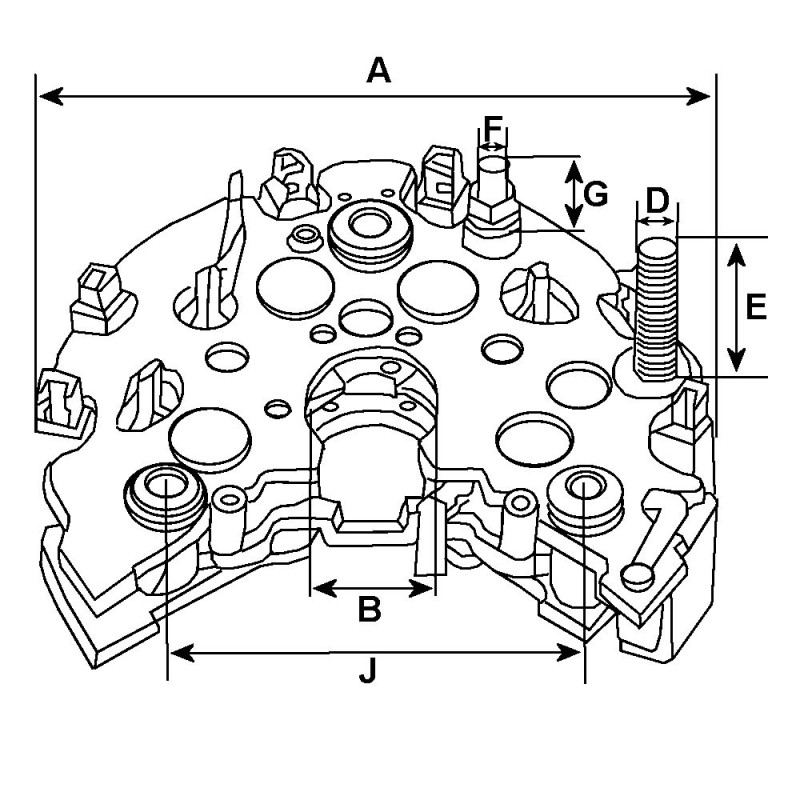

Physical Information | ||
|---|---|---|
| B+ type | Bolt | |
| A | DE mm | 124.00 |
| B | DI mm | 23.02 |
| J | Mount. dist. | 65.00 |
| D | B+/Thread | M8/27.00 |
| F | D+/Threaded | M5/15.00 |
| Diode type | Avalanche | |
| Capacitor | With | |
| Plug D+ | Bolt | |
| Number of Diodes | 12 | |
Replacing | |
|---|---|
| 1127319700 | BOSCH |
| F00M053200 | BOSCH |
| f00m053201 | BOSCH |
AUDI / VOLKSWAGEN 077-903-359
Mounted on :
Audi (1997-2004) ,AUDI - Europe (1994-2005) ,LAND ROVER (1999-2002) ,LAND ROVER - Europe (1994-2002) , MERCEDES-BENZ - Europe (1995-2005) , MERCEDES-BENZ LCV - Europe (2000-2006) , MERCEDES-BENZ (1994-2005) , VOLKSWAGEN - Europe (1998-2003) , VOLKSWAGEN LCV - Europe (1998-2003)
Autres Alternators :
AUDI / VOLKSWAGEN 028-903-026J, 038-903-018D, 038-903-018DX, 038-903-018G, 038-903-018GX, 059-903-015E, 059-903-015EX, 074-903-025L, 074-903-025LX, 077-903-015F, 077-903-015FX, 077-903-015K, 077-903-015L, 077-903-015P, 077903015KX, 078-903-016
BOSCH 0 123 510 021, 0 123 520 003, 0 123 520 004, 0 123 520 006, 0 123 520 007, 0 123 520 008, 0 123 520 010, 0 123 520 011, 0 123 520 012, 0 123 520 013, 0 123 520 014, 0 123 520 019, 0 123 520 020, 0 123 520 021, 0 123 520 022, 0 123 520 023, 0 123 520 026, 0 123 520 027, 0 123 520 031, B 120 510 758
DAF 1516505R, 1524010R, 1524010R
LAND ROVER ERR5834
MERCEDES-BENZ 010 154 78 02, 010-154-10-02, 010-154-29-02, 010-154-68-02, 010-154-71-02, 010-154-77-02, 010-154-83-02, 011-154-10-02, 011-154-70-02, A 010 154 78 02, A0101541002, A0101542902, A0101546802, A0101547102, A0101548302, A0111541002, A0111547002
Michel C.
The diode bridge is not the model in the photo, the diameter is one centimetre larger. I've had to modify it, but I won't be able to fit the insulating cover. This model must be out of stock, this equivalent leaves something to be desired! (Translated review)
The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.
The part number can be numeric or alphanumeric, and can be found on your part.
Once you've found the part number, enter it in the search bar at the top center of our site.
The result will be the replacement part matching your part number.
