Pulley
Bracket on the collector side for Alternator A13M4 / A13M9
€39.90

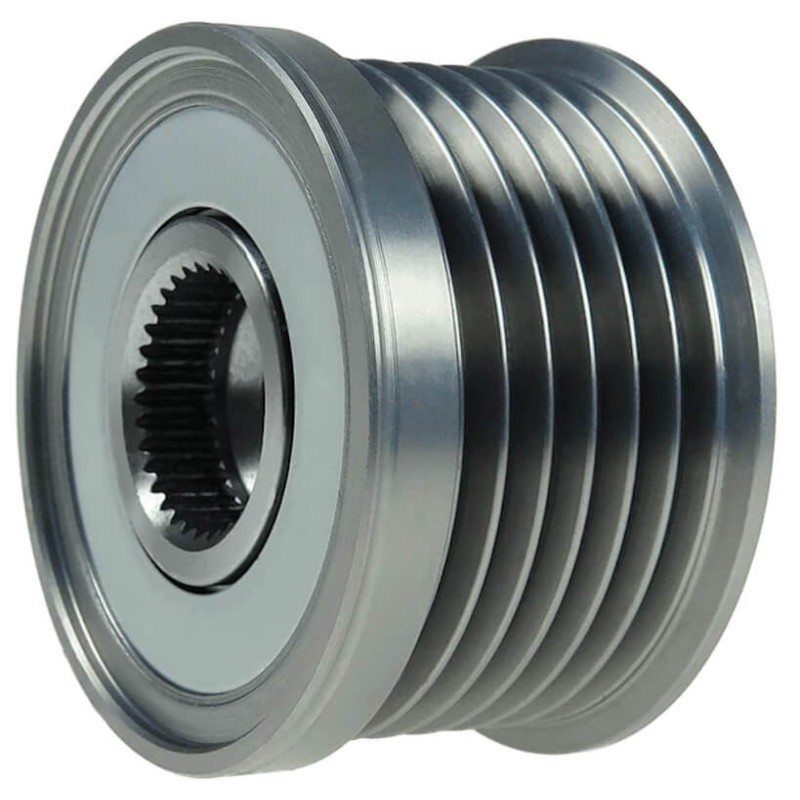

Pulley for alternator BOSCH 0121715029 / 0124625014 / 0124625019
w332308
Freewheel pulley for alternator
= BOSCH f00m991255 / f00m991181 / F00M349827
= IKA 3.5314.1
= INA F-235967.1 / F-235968 / F-235968.01 / F-235968.08 / F-235968.09
= LUK 5350086000 / 535008610
= MERCEDES-BENZ 6461500260 / 6481550015
Extractor pulley se trouve sous la réference w210843
Features
generic brand

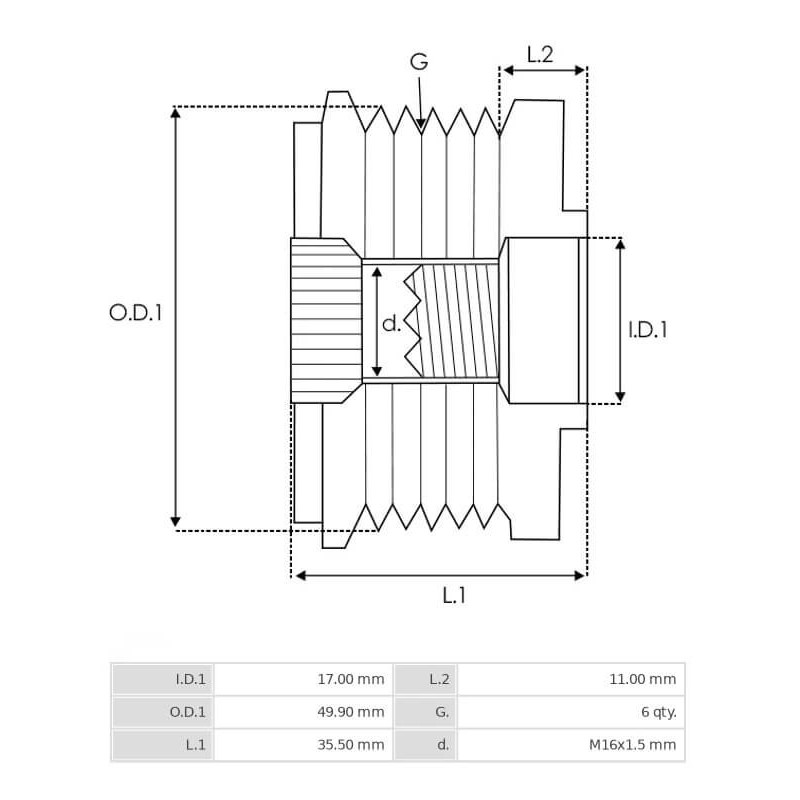

Information:
A = DE mm 49.80
E = Depth mm 11.10
C = Height mm 36.20
Pulley type Serpentine Pulley/ Freewheel pulley
Grooves 6
Belt type Multi Belt
Fan WithoutFree run With
B = Bore dia. 17.00
F = Distance / Back 1.80
Thread size M16-1.50
Rotation Clockwise
L = Measurement 1. groove 10.80
for alternator BOSCH :
0121715029
0124625014
0124625019
0124625033
0124625045
BOSCH 0121715029, 0121715129, 0124625014, 0124625019, 0124625033, 0124625045, 0986048550, 0986048557; MAGNETI MARELLI 063536250450; MERCEDES-BENZ 012-154-98-02, 013-154-00-02, 013-154-59-02, 013-154-90-02, A-013-154-59-02, A0121549802, A013-154-90-02, A0131540002, A0141540702
