Pulley for alternator BOSCH 0124515019 / 0124515054 / 0124525001

Information:

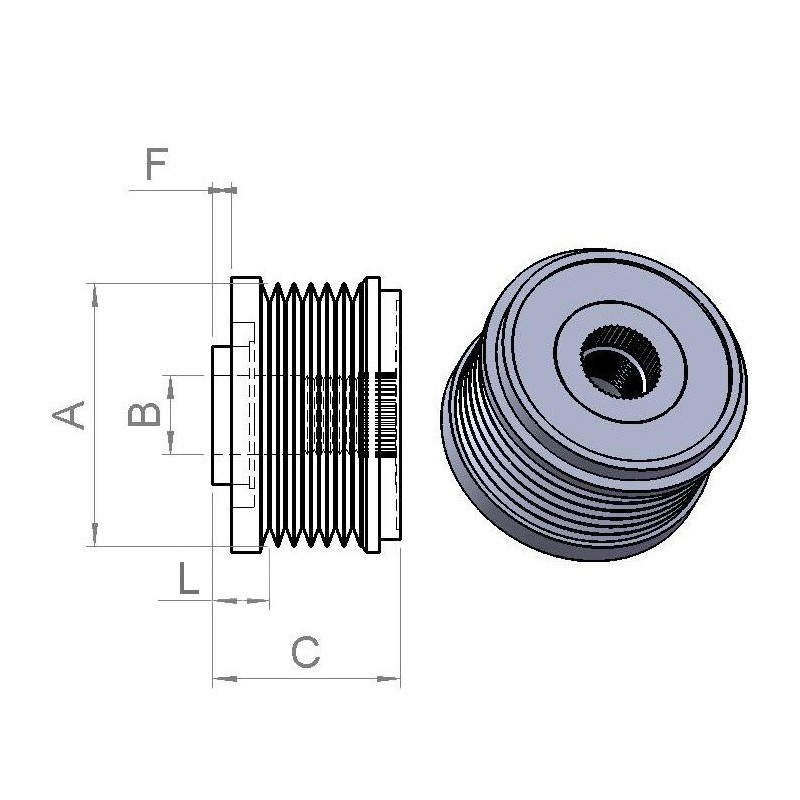

A = DE mm 55.60

E = Depth mm 7.60

C = Height mm 37.50

Pulley type Serpentine Pulley/ Freewheel pulley

Grooves 6

Belt type Multi Belt

Fan Without

Free run With

B = Bore dia. 17.00

F = Distance / Back 1.00

Thread size M16-1.50 L

Rotation COUNTER CLOCKWISE

L = Measurement 1. groove 6.00

= BOSCH f00m991265 / f00m991232 / F00M991156 / f00m991061

f00991016 / F00M147799 / f00m147760

= INA f-230401 / F-230401.06 / F-230401.07 / F-230401.08

F-230401.09 / f-230401.6 / f-230401.7 / f-230401.8 / f-533709

f-552923 / f-552923.01 / f-552923.1 / f-553099 / F-553099.01

for alternator BOSCH :
