Freewheel Pulley INA for alternator VALEO TG12C120 / TG12C147
Replacing | ||
|---|---|---|
| 12317561555 | BMW | |
| 12317576515 | BMW | |
| 2605074 | Valeo | |
| 330473 | Valeo | |
| 354191 | Ika | |
| 535017800 | Luk | |
| 535017810 | Luk | |
| 5565 | Zen | |
| 588048 | Valeo | |
| F-556533.01 | Ina | |
More info

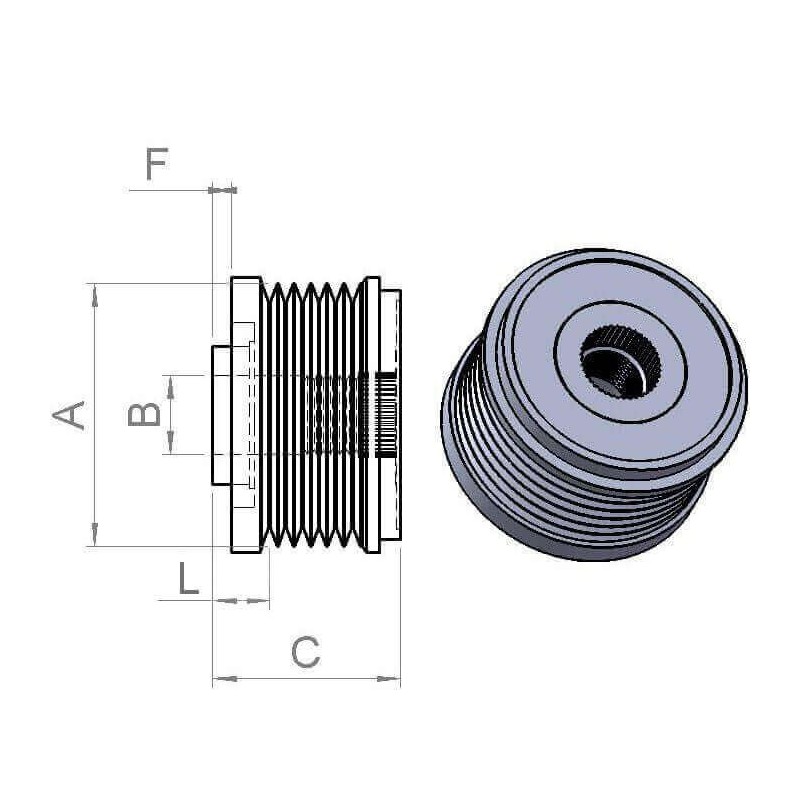

Physical information | ||
|---|---|---|
| Rotation | CW | |
| A | OD mm | 49.30 |
| C | Width mm | 41.10 |
| B | Bore dia. | 17.00 |
| Thread size | M16-1.50 | |
| E | Depth mm | 14.40 |
| F | Dist./back | 3.50 |
| Pulley type | SP/FW | |
| Grooves | 6 | |
| Belt type | Multi Belt | |
| Free run | w/ | |
| Blower | w/o | |
| L | Measurement 1. groove | 16.50 |
for alternator :
| 2605106 | VALEO |
| 2605290 | VALEO |
| FG15T075 | VALEO |
| FG15T148 | VALEO |
| TG12C021 | VALEO |
| TG12C059 | VALEO |
| TG12C061 | VALEO |
| TG12C120 | VALEO |
| TG12C147 | VALEO |
