Freewheel pulley for alternator TG12C038 / TG12C106 / TG12C228 / TG15C020 / TG15C028
Freewheel pulley for alternator :
FGN18T112, SG10B048, TG10B013, TG10B024, TG12C038, TG12C106, TG12C228, TG15C020, TG15C028, TG15C053, TG15C103, TG15C118, TG15C127, TG15C134, TG15C135, TG15C189, TG15C194, TG15S205, TG9B026, TG9B044, TG9B049, TG9B066, TG9B06
More info
Information:

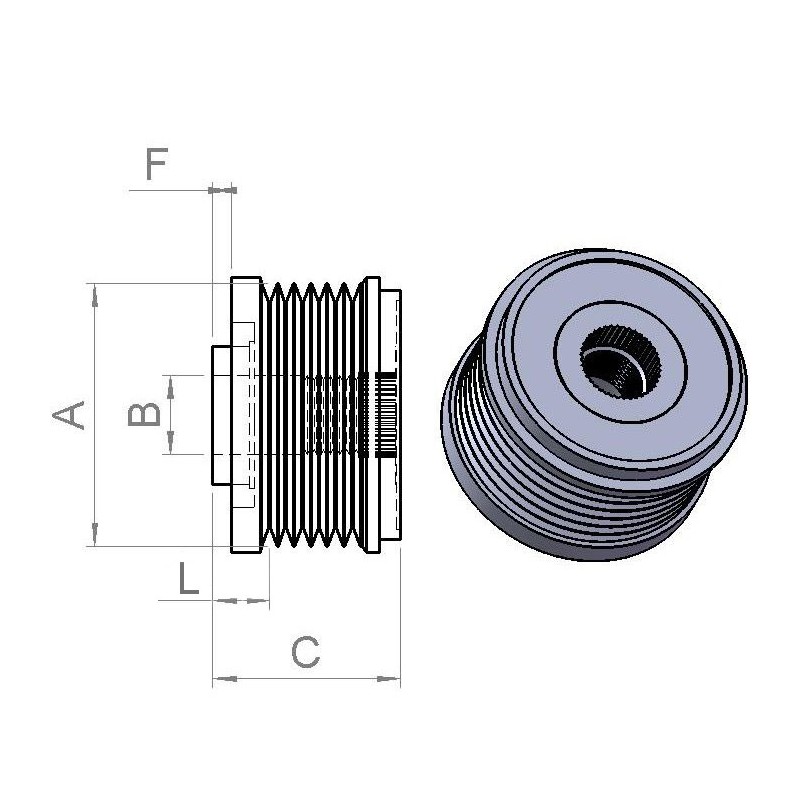

Physical Information | ||
|---|---|---|
| A | DE mm | 54.00 |
| E | Depth mm | 16.00 |
| C | Height mm | 41.80 |
| Pulley type | Serpentine Pulley/ Freewheel pulley | |
| Grooves | 6 | |
| Belt type | Multi Belt | |
| Fan | Without | |
| Free run | With | |
| B | Bore dia. | 17.00 |
| F | Distance / Back | 3.50 |
| Thread size | M16-1.50 | |
| Rotation | Clockwise | |
| L | Measurement 1. groove | 12.50 |
Replacing | |
|---|---|
| 2601052 | VALEO |
| 2603530 | VALEO |
| 335791 | IKA |
| 354351 | IKA |
| 5350062000 | LUK |
| 535006210 | LUK |
| 535019410 | LUK |
| 5453 | ZEN |
| 593832 | VALEO |
| 85-46-49 | VISNOVA |
| 86-46-46 | VISNOVA |
| F-236591.01 | INA |
| F-236591.02 | INA |
| F-236591.04 | INA |
| f-236591.05 | INA |
| f-236591.06 | INA |
| F-236591.07 | INA |
| F-236591.1 | INA |
| f-236591.4 | INA |
generic brand
For Alternator :
CITROEN 1606856980, 1608064580, 1609016080, 5702J4, 5702J9, 5705KR, 5705KV, 96 780488 80, 96 780488 80, 9655858280, 9663010980, 9663647980, 9664057480, 9664074280, 9665580680, 9665605080, 9670899580, 9678049480, 98 030499 80, 9810971880
FIAT 71748885, 9646065480, 9646321780, 9646388280, 9649611280, 9649611280, 9655733780
FORD 1506299, 1704769, 30285659, 8V21-10300-AB, 8V21-10300-BB
FORD ENGINEERING 8V21-AB, 8V21-BB
MAZDA Y405-18-300, Y406-18-300
PEUGEOT 1606856980, 5702-J4, 5702H7, 5702J4, 5705-KR, 5705KC, 5705KR, 96 647796 80, 96 780488 80, 96 780488 80, 9670899580, 9678049480, 9678049480, 98 030499 80, 9803750980, 9803750980; PSA
PEUGEOT CITROEN 5702 E2, 5702 E3 (C), 5702 H0, 5702G9, 5702J9, 5702J9, 5705 AS, 5705 CS, 5705 CT, 5705 EY, 5705 KC, 5705KV, 5705KV, 96 647796 80, 96 780488 80, 9655296080, 9655733780
SUZUKI 31400-69K00
VALEO 2543524, 2607212, 2607214A, 439690, FG18S027, FG18S048, FG18S095, FG18T112, FGN18S027, FGN18S048, FGN18S095, FGN18T112, SG10B048, TG10B013, TG10B024, TG12C038, TG12C106, TG12C228, TG15C020, TG15C028, TG15C053, TG15C103, TG15C118, TG15C127, TG15C134, TG15C135, TG15C189, TG15C194, TG15S205, TG9B026, TG9B044, TG9B049, TG9B066, TG9B06
Mounted on :
CITROEN - Europe (2002-2016)
CITROEN LCV - Europe (2002-2012)
FIAT - Europe (2000-2016)
FIAT LCV - Europe (2000-2012)
FORD - Europe (2006-2014)
LANCIA - Europe (2002-2016)
MAZDA - Europe (2008-2014)
MITSUBISHI - Europe (2007-2012)
PEUGEOT - Europe (2001-2016)
PEUGEOT LCV - Europe (2000-2012)
