Pulley for alternator HITACHI LR1100-503 / LR1100-508 / LR1110-503
Freewheel pulley replacing :
DELCO REMY 10511026, GM 10511026, 97186700, 97355778
HITACHI GD218089, GD218089-1
INA 535 0065 10, F-232353, F-232353.03, F-232353.1, F-232353.3, F-240113, F-240113.01, F-240113.03, F-240113.1, F-240113.3
More info
Information:
More information

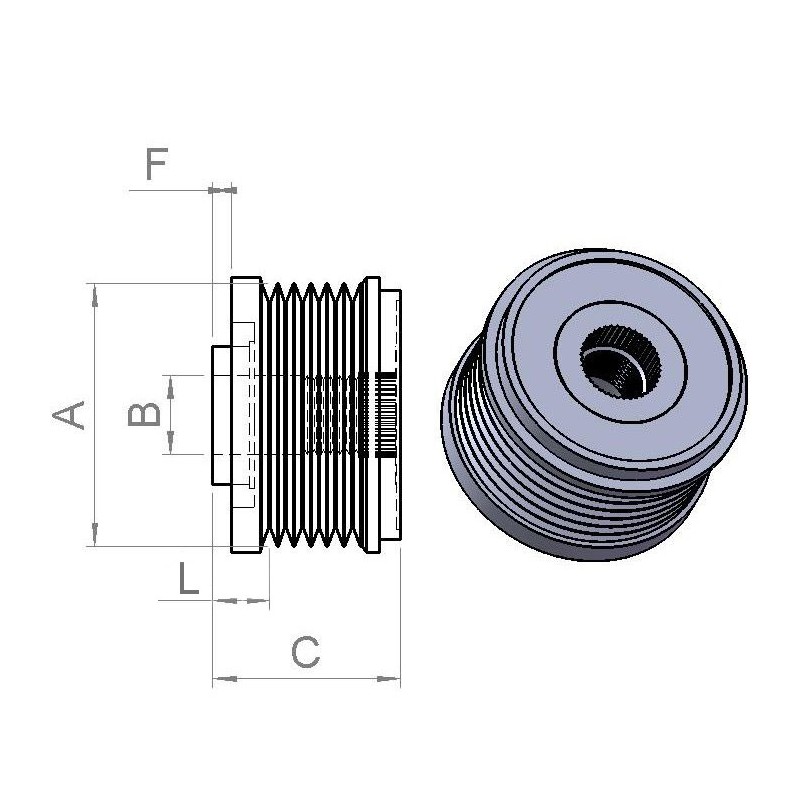

Physical Information | ||
|---|---|---|
| A | DE mm | 59.60 |
| E | Depth mm | 20.00 |
| C | Height mm | 42.50 |
| Pulley type | Serpentine Pulley/ Freewheel pulley | |
| Grooves | 6 | |
| Belt type | Multi Belt | |
| Fan | Without | |
| Free run | With | |
| B | Bore dia. | 17.00 |
| F | Distance / Back | 5.20 |
| Thread size | M16-1.50 | |
| Rotation | Clockwise | |
| L | Measurement 1. groove | 9.00 |
Replacing :
DELCO REMY 10511026, GM 10511026, 97186700, 97355778
HITACHI GD218089, GD218089-1
INA 535 0065 10, F-232353, F-232353.03, F-232353.1, F-232353.3, F-240113, F-240113.01, F-240113.03, F-240113.1, F-240113.3
ISUZU 8-97369-507-0, OPEL 12-04-366, 6204889
VALEO 588021
24-81110
For Alternator :
DELCO REMY 8400156, 8400157, 8400158, 8400218
GM 6204275, 93189498, 97355198, 97359198, 97363832, 98056441; HITACHI 2506103, LR1100-503, LR1100-503A, LR1100-503B, LR1100-503C, LR1100-503D, LR1100-503E, LR1100-503F, LR1100-508, LR1100-508A, LR1100-508B, LR1100-508C, LR1100-508D, LR1100-508E, LR1100-508F, LR1110-502, LR1110-503, LR1110-503B, LR1110-503C, LR1110-503E, LR1110-503F
ISUZU 8-89355-198-1, 8-89355-198-2, 8973551981, 8973551982, 8973638320, 8973638321, 8973638322, 8973638330, 8973695070, 8973695072, 8980311541, 8980311551, 8980428730, 8980564390, 8980564410 MAGNETI MARELLI 943358377010, 944390903360
OPEL 62 04 288, 62 04 289, 62-04-140, 6204183, 6204252, 6204254, 93189496, 98031154, 98031155, 98042873, 98056443
VALEO 440652
Vauxhall R1530089, R1530090, R1530092
brand / wai
Mounted on :
OPEL - Europe (2003-2015) , OPEL LCV - Europe (2004-2010) ,VAUXHALL - Europe (2004-2015)
