Pulley for alternator BOSCH 0123320054 / 0123325020 / 0123510091

Information:

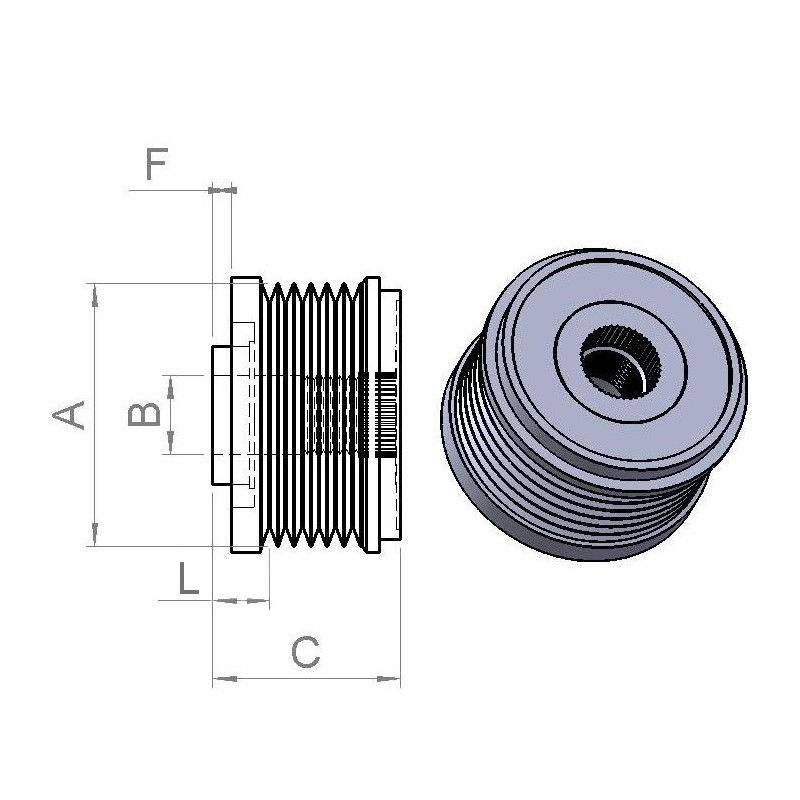

A = DE mm 55.90

E = Depth mm 16.00

C = Height mm 35.00

Pulley type Serpentine Pulley/ Freewheel pulley

Grooves 6

Belt type Multi Belt

Fan Without

Free run With

B = Bore dia. 17.00

F = Distance / Back 0.7

Thread size M16-1.50

Rotation Clockwise

L = Measurement 1. groove 7.00

brand / wai

= BOSCH f00m991044 / 1126601593

= INA

F-228618.04 / F-228618.05 / f-228618.07 / F-228618.4 / F-228618.5 / f-228618.7 / f-230846

 F-230846.01 / F-230846.02 / F-230846.03 / f-230846.3

= LUK 5350014000 / 535001410 / 5350022000 / 535002210

= VOLKSWAGEN 038903119l / 071903119b / 071903165

= wai24-92962

for alternator BOSCH :

0123320054

0123325020
0123510091

0124515024
