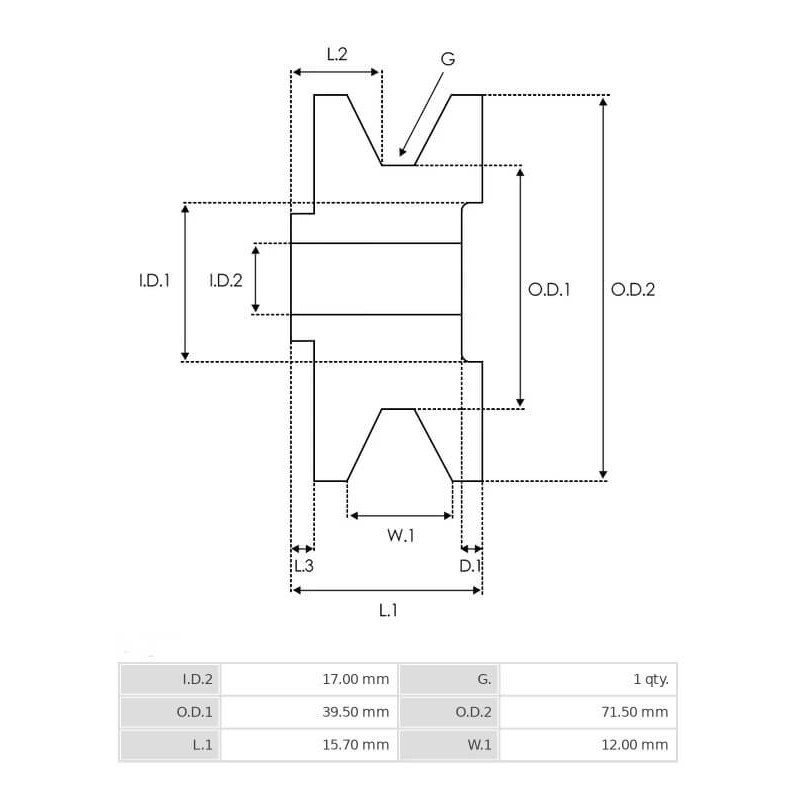

Pulley for alternator VALEO A12M18 / A12M9 / A12R21 / A12R23

Information:

A =DE 67.80

E =Depth mm 4.40

Height mm 15.70

Pulley type Pulley

Grooves 1

Belt type A=9.5

Fan Without

Free run Without

B =Bore dia. 17.00

F =Distance / Back 6.50

Rotation Horloge/anti horloge from rotation

Diameter on la ceinture 72.00

= MOTOROLA 507-042

= DUCELLIER / VALEO 096879

= DELCO REMY 3472808

for alternator BOSCH :

0120400838, 0120400839, 0120489114, 0120489115, 0120489627, 0120489628

for alternator DELCO REMY :

3471214, 3472057, 3472058, 3472059, 3472060, 3472061, 3472062, 3472065, 3472066, 3472067, 3472068, 3472069, 3472070, 3472072, 3472073, 3472082, 3472091, 3472093, 3472104, 3472105, 3472106, 3472119, 3472120, 3472121, 3472128, 3472130, 3472134, 3472135, 3472136, 3472137, 3472139, 3472142, 3472143, 3472144, 3472188, 3472202, 3472204, 3472206, 3472208, 3472641, 3472706, 3493119, 3493219, 3493220, 3493234, 3493239, 3493242, 3493243, 3493244, 3493604, 3493606, 3493619, 3493620, 3493621, 3493634, 3493635, 3493639, 3493641, 3493644, 3493714, 3493716, 3493719, 3493721, 3493734, 3493739, 3493741, 3493791

for alternator DUCELLIER :

514014, 514014A, 516054, 516054A, 516057AB

for alternator MOTOROLA :

2940060, 9AR2730P

for alternator VALEO :

2940087, 2940275, 2941232, 71210402, 71210702, 71210802, 71211402, 71226802, 71228902, 71230402, 71231202, 71270402, 71271202, 71271302, 71333302, 71635102, 71635502, 71635702, 71636002, 71636102, 71636802, 71636902, 71652302, 71653202, 71655202, 71655302, 9AL2628P, A12M16, A12M18, A12M9, A12R21, A12R23, A12R32, A12R33, A12R34, A12R36, A12R45, A12R47, A12R48, A12R49, A12R52, A12R8, A12R9, A13N100, A13N101, A13N102, A13N135, A13N247, A13N32, A13N41, A13R124, A13R143, A13R223, A13R261, A13R265, A13R266, A13R267, A13R268, A13VI13, A14N1, A14N134, A14N140, A14N142, A14N2, A14N23, A14N25, A14N36, A14N42, A14N55, A14N56, A14N64, A14N74, A14N75, A14N77, A14N90, A14N91
