Pulley for alternator VALEO SG15L036 / TG15C058 / TG15C091

Information:

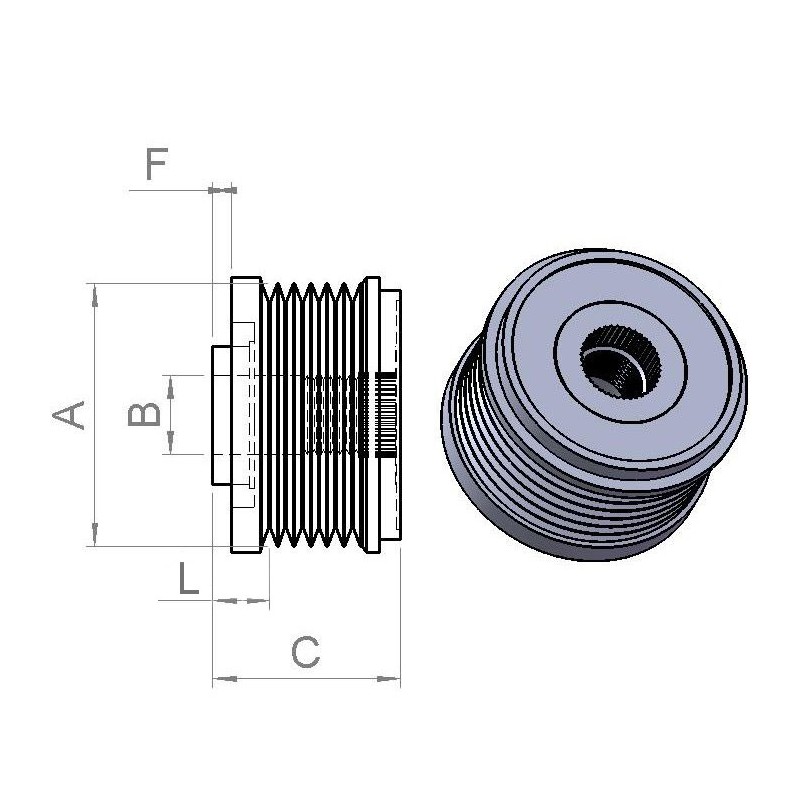

A = DE mm 48.80

E = Depth mm 16.00

C = Height mm 41.00

Pulley type Serpentine Pulley/ Freewheel pulley

Grooves 7

Belt type Ceinture mult

Fan Without

Free run With

B = Bore dia. 17.00

F = Distance / Back 4.60

Thread size M16-1.50

Rotation Clockwise

L = Measurement 1. groove 11.70

generic brand

replacing:

INA Bearing Co 535 0080 10, F-236672.02, F-236675.02, F-236675.03, F-236675.04, F-236675.2, F-236675.3, F-236675.4, F-561464, F-561464.02, F-561464.03, F-561464.3, RENAULT 8200489514, VALEO 2601010, 588027, 593514, 595226

for alternator   :
