Pulley for alternator VALEO TG12S101 / TG12S111 / TG8S012 / TG8S013
Freewheel pulley for alternator :
VALEO TG12S101, TG12S111, TG8S012, TG8S013, TG8S014, TG8S016, TG8S022, TG8S023, TG9S010, TG9S011, TG9S015, TG9S016, TG9S021, TG9S022, TG9S027, TG9S036, TG9S038, TG9S039, TG9S063
More info

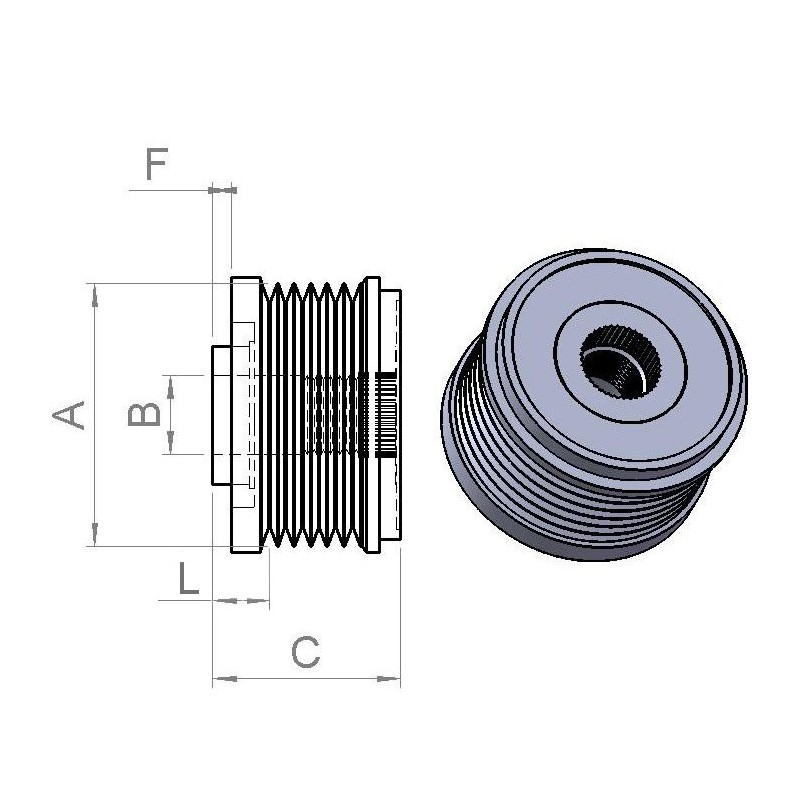

Physical Information | ||
|---|---|---|
| A | DE mm | 54.00 |
| E | Depth mm | 16.00 |
| C | Height mm | 38.10 |
| Pulley type | Serpentine Pulley/ Freewheel pulley | |
| Grooves | 6 | |
| Belt type | Multi Belt | |
| Fan | Without | |
| Free run | With | |
| B | Bore dia. | 17.00 |
| F | Distance / Back | 4.35 |
| Thread size | M16-1.50 | |
| Rotation | Clockwise | |
| L | Measurement 1. groove | 8.00 |
Replacing | |
|---|---|
| 1204392 | OPEL |
| 2008600022 | BOSCH |
| 2600161 | VALEO |
| 335801 | IKA |
| 353011 | IKA |
| 5350063000 | LUK |
| 535006310 | LUK |
| 5449 | ZEN |
| 55186280 | FIAT |
| 580359 | VALEO |
| 593860 | VALEO |
| 593891 | VALEO |
| 77362721 | FIAT |
| 93178273 | GENERAL MOTOR |
| f-237101.01 | INA |
| F-237101.02 | INA |
| f-237101.03 | INA |
| f-237101.04 | INA |
| F-237101.1 | INA |
| f-237101.2 | INA |
= 24-94252
Brand Cargo / wai
for alternator :
ALFA ROMEO 51854915
BOSCH 0 986 083 250, 0986083320
DENSO 101210-1121, 101210-1180, DAN997; FIAT 46823547, 46835095, 51718499, 51727335, 51784841, 51784842, 51784844, 51784845, 51784846, 51854103, 51854915, 51880175, 55185075, 55185076
GM 13117278, 13117279, 13117279, 13283344, 13283344BW, 6204181, 704042419
MAGNETI MARELLI 063358062010, 063358062010, 063358062010, 063377494010, 063377494010
OPEL 13117278, 13283343BU, 13283344BW
Original Reference Number 13117279YQ
RENAULT 704114923
SUZUKI 31400-85E00
VALEO TG12S101, TG12S111, TG8S012, TG8S013, TG8S014, TG8S016, TG8S022, TG8S023, TG9S010, TG9S011, TG9S015, TG9S016, TG9S021, TG9S022, TG9S027, TG9S036, TG9S038, TG9S039, TG9S063
