Starter replacing 585059 / 583473 / 5704940MO30SM / 5071240M030SM for EVINRUDE / JOHNSON outboard motor
Starter replacing 585059 / 583473 / 5704940MO30SM / 5071240M030SM for EVINRUDE / JOHNSON outboard motor
Starter replacing 585059 / 583473 / 5704940MO30SM / 5071240M030SM for EVINRUDE / JOHNSON outboard motor
Starter replacing 585059 / 583473 / 5704940MO30SM / 5071240M030SM for EVINRUDE / JOHNSON outboard motor
Previous
Next
Starter replacing 585059 / 583473 / 5704940MO30SM / 5071240M030SM for EVINRUDE / JOHNSON outboard motor
Starter replacing 585059 / 583473 / 5704940MO30SM / 5071240M030SM for EVINRUDE / JOHNSON outboard motor
Starter replacing 585059 / 583473 / 5704940MO30SM / 5071240M030SM for EVINRUDE / JOHNSON outboard motor
Starter replacing 585059 / 583473 / 5704940MO30SM / 5071240M030SM for EVINRUDE / JOHNSON outboard motor

Starter replacing 585059 / 583473 / 5704940MO30SM / 5071240M030SM for EVINRUDE / JOHNSON outboard motor

W5714n | Brand : AS

Starter replacing :

OUTBOARD MARINE CORP (OMC) 583473, 585059, 585459, PRESTOLITE 20513536TBA, UNITED TECHNOLOGIES 5071240-M030SM, 5071240MO30SM, 5704940-M030SM, 5704940MO30SM, SM57049

9 teeth / diameter of drive 35.5 mm / length of shaft after drive 32.5 mm / length of front part of starter 74 mm / total diameter of starter 80 mm

Installation example: EVINRUDE E20EL (31.8ci, 20 HP) from 01/1985 to 12/1995 / E25EL (31.8ci, 25 HP) from 01/1981 to 12/1997

JOHNSON 25EL (31.8ci, 25 HP) from 01/1981 to 12/2005 / 30TE (31.8ci, 30 HP) from 01/1984 to 12/1998

Read more
€79.90 Tax included
Price may vary according to your VAT rate
Last items in stock Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Reference

2-2161 WAI
5714 LESTER
583473 OMC
585059 OMC
SAB0036 ARROWHEAD
5714N WAI
71-09-5714 WILSON
10440765 ALANKO
3110255 HENKEL PARTS
112156 CARGO
20607121 DIXIE
5704940MO30SM UNITED TECHNOLOGIES
57049400M030SM UNITED TECHNOLOGIES
5071240MO30SM UNITED TECHNOLOGIES
5071240M030SM UNITED TECHNOLOGIES
91-09-1046 WILSON
MS691 DIXIE
SM57049 UNITED TECHNOLOGIES
STR88210 WOODAUTO
WOOSTR88210 WOODAUTO
UD13724S AS-PL
F032112156 CARGO

Features

Information:

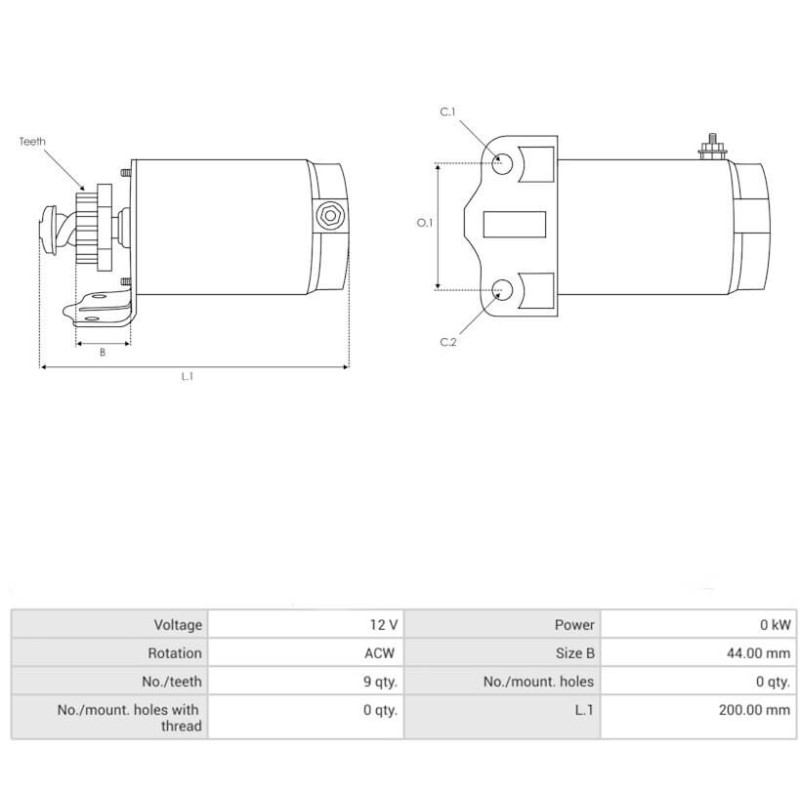

Specs Electricals
Voltage 12
Specs Physique
H Nbr of teeth 9
P Rotation COUNTER CLOCKWISE
N Gear type Dd
I B+ 1/4" UNF
F Distance / Back 123.10
G Distance / Front 77.80
M Mount. bracket Non
R Total length mm 200.90

generic brand

Replacing
5071240M030SM UNITED TECHNOLOGIES
5704940MO30SM UNITED TECHNOLOGIES
583473 Omc
585059 Omc
22161 LUCAS

Mounted on :

EVINRUDE

JOHNSON

NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY

Mounting on

Brand Model Typ Year
EVINRUDE E20EL 31.8ci-20H.P. 01.1985 - 12.1995
EVINRUDE E20E 31.8ci-20H.P. 01.1985 - 12.1995
EVINRUDE E25TEL 31.8ci-25H.P. 01.1980 - 12.1998
EVINRUDE E25E 31.8ci-25H.P. 01.1981 - 12.1998
EVINRUDE E25TE 31.8ci-25H.P. 01.1980 - 12.1998
EVINRUDE E25EL 31.8ci-25H.P. 01.1981 - 12.1997
EVINRUDE E28ESL 31.8ci-28H.P. 01.1987 - 12.1996
EVINRUDE E30TEL 31.8ci-30H.P. 01.1985 - 12.1998
EVINRUDE E30E 31.8ci-30H.P. 01.1984 - 12.1998
EVINRUDE E30TE 31.8ci-30H.P. 01.1985 - 12.1998
EVINRUDE E30EL 31.8ci-30H.P. 01.1984 - 12.1998
EVINRUDE E35EL 31.8ci-35H.P. 01.1980 - 12.1984
EVINRUDE E35E 31.8ci-35H.P. 01.1980 - 12.1984
EVINRUDE E35TEL 31.8ci-35H.P. 01.1983 - 12.1984
JOHNSON 20E 31.8ci-20H.P. 01.1985 - 12.1998
JOHNSON 25TEL 31.8ci-25H.P. 01.1981 - 12.2005
JOHNSON 25E 31.8ci-25H.P. 01.1981 - 12.2001
JOHNSON 25TE 31.8ci-25H.P. 01.1981 - 12.1994
JOHNSON 25EL 31.8ci-25H.P. 01.1981 - 12.2005
JOHNSON 28ESL 31.8ci-28H.P. 01.1987 - 12.1996
JOHNSON 30EL 31.8ci-30H.P. 01.1984 - 12.2005
JOHNSON 30TEL 31.8ci-30H.P. 01.1985 - 12.1998
JOHNSON 30E 31.8ci-30H.P. 01.1984 - 12.1999
JOHNSON 30TE 31.8ci-30H.P. 01.1984 - 12.1998
JOHNSON 35EL 31.8ci-35H.P. 01.1980 - 12.1984
JOHNSON 35E 31.8ci-35H.P. 01.1980 - 12.1984
JOHNSON 35TEL 31.8ci-35H.P. 01.1983 - 12.1984
