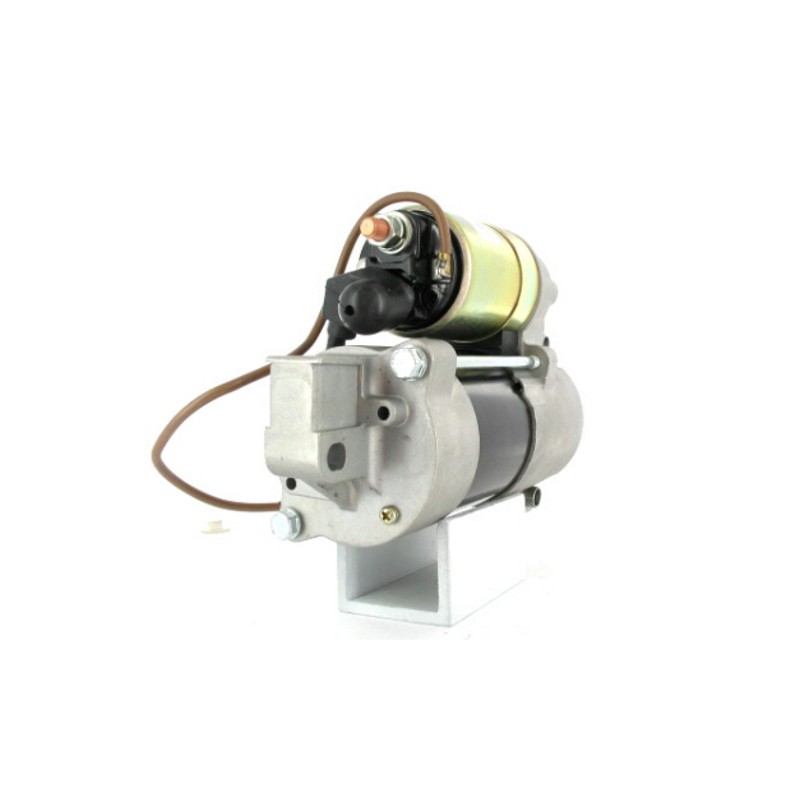

Starter replacing HITACHI S114-838A / MERCURY 50-881368T / 50-881368T1
Starter replacing :
HITACHI S114-838A
MERCURY MARINE 50-881368T, 50-881368T1, 50-881368T2, 881368T1, 881368T2
YAMAHA 68V-81800-00, 68V-81800-00-00, 68V-81800-01, 68V-81800-01-00
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info

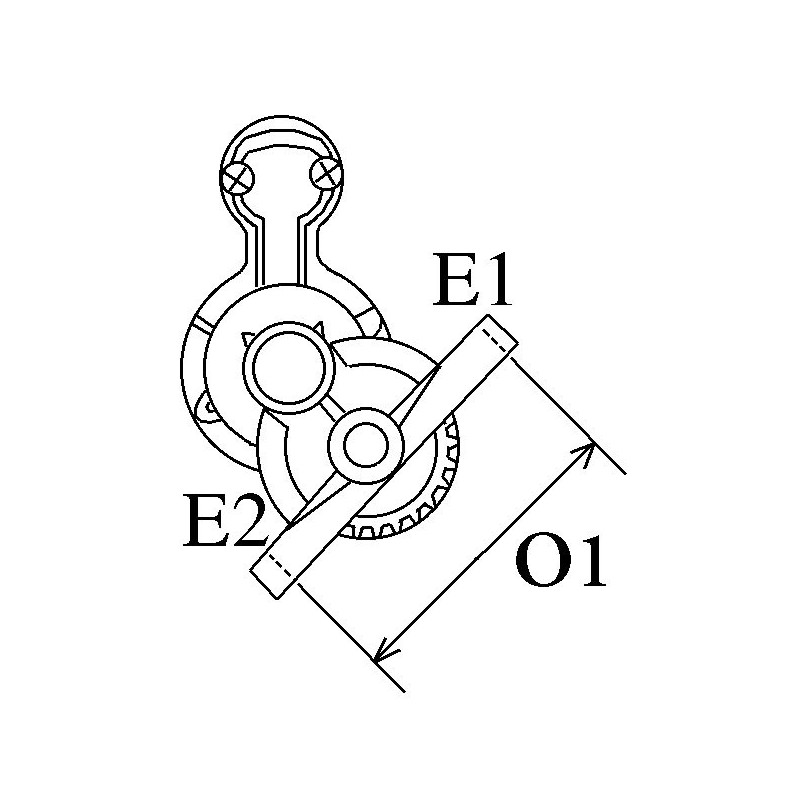

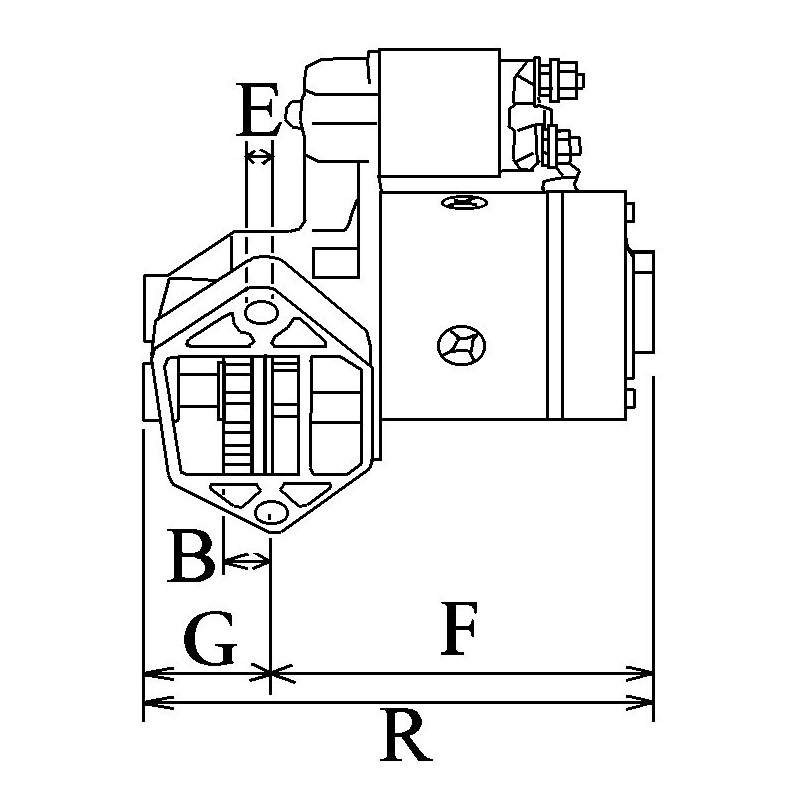

Physical Information | ||
|---|---|---|
| E | Mounting holes | 8.60 |
| E | Mounting holes 2 | 8.60 |
| E | Mounting holes 3 | 8.6/10.0 |
| B | Drive distance | 57.00 |
| F | Distance / Back | 171.00 |
| G | Distance / Front | 62.00 |
| H | Nbr of teeth | 13 |
| I | B+ | M8 |
| N | Gear type | Gr |
| O | Distance mm | 76.80 |
| P | Rotation | COUNTER CLOCKWISE |
| R | Total length mm | 233.00 |
Electrical Information | ||
|---|---|---|
| Voltage | 12 | |
| KW | 1.4 | |
Generic Brand
fits:
115ELPT EFI 4-Stroke SHI0132 2001 MERCURY 105ci - 115 HP
115ELPT EFI 4-Stroke SHI0132 2002 MERCURY 105ci - 115 HP
115ELPT EFI 4-Stroke SHI0132 2003 MERCURY 105ci - 115 HP
115ELPT EFI 4-Stroke SHI0132 2004 MERCURY 105ci - 115 HP
115ELPT EFI 4-Stroke SHI0132 2005 MERCURY 105ci - 115 HP
115ELPT EFI 4-Stroke SHI0132 2006 MERCURY 105ci - 115 HP
115ELPT EFI 4-Stroke SHI0132 2007 MERCURY 105ci - 115 HP
115ELPT EFI 4-Stroke SHI0132 2008 MERCURY 105ci - 115 HP
115ELPT EFI 4-Stroke SHI0132 2009 MERCURY 105ci - 115 HP
115ELPT EFI 4-Stroke SHI0132 2010 MERCURY 105ci - 115 HP
115ELPT EFI 4-Stroke SHI0132 2011 MERCURY 105ci - 115 HP
115ELPT EFI 4-Stroke SHI0132 2012 MERCURY 105ci - 115 HP
115ELPT EFI 4-Stroke SHI0132 2013 MERCURY 105ci - 115 HP
115ELPT EFI 4-Stroke SHI0132 2014 MERCURY 105ci - 115 HP
115ELPT EFI Saltwater 4-Stroke SHI0132 2004 MERCURY 105ci - 115 HP
115ELPT EFI Saltwater 4-Stroke SHI0132 2005 MERCURY 105ci - 115 HP
115EXLPT EFI 4-Stroke SHI0132 2006 MERCURY 105ci - 115 HP
115EXLPT EFI 4-Stroke SHI0132 2007 MERCURY 105ci - 115 HP
115EXLPT EFI 4-Stroke SHI0132 2008 MERCURY 105ci - 115 HP
115EXLPT EFI 4-Stroke SHI0132 2009 MERCURY 105ci - 115 HP
115EXLPT EFI 4-Stroke SHI0132 2010 MERCURY 105ci - 115 HP
115EXLPT EFI 4-Stroke SHI0132 2011 MERCURY 105ci - 115 HP
115EXLPT EFI 4-Stroke SHI0132 2012 MERCURY 105ci - 115 HP
115EXLPT EFI 4-Stroke SHI0132 2013 MERCURY 105ci - 115 HP
115EXLPT EFI 4-Stroke SHI0132 2014 MERCURY 105ci - 115 HP
115EXLPT EFI Saltwater 4-Stroke SHI0132 2001 MERCURY 105ci - 115 HP
115EXLPT EFI Saltwater 4-Stroke SHI0132 2002 MERCURY 105ci - 115 HP
115EXLPT EFI Saltwater 4-Stroke SHI0132 2003 MERCURY 105ci - 115 HP
115EXLPT EFI Saltwater 4-Stroke SHI0132 2004 MERCURY 105ci - 115 HP
115EXLPT EFI Saltwater 4-Stroke SHI0132 2005 MERCURY 105ci - 115 HP
75ELPT EFI 4-Stroke SHI0132 2006 MERCURY 105.7ci - 75 HP
75ELPT EFI 4-Stroke SHI0132 2007 MERCURY 105.7ci - 75 HP
75ELPT EFI 4-Stroke SHI0132 2008 MERCURY 105.7ci - 75 HP
75ELPT EFI 4-Stroke SHI0132 2009 MERCURY 105.7ci - 75 HP
75ELPT EFI 4-Stroke SHI0132 2010 MERCURY 105.7ci - 75 HP
75ELPT EFI 4-Stroke SHI0132 2011 MERCURY 105.7ci - 75 HP
75ELPT EFI 4-Stroke SHI0132 2012 MERCURY 105.7ci - 75 HP
75ELPT EFI 4-Stroke SHI0132 2013 MERCURY 105.7ci - 75 HP
75ELPT EFI 4-Stroke SHI0132 2014 MERCURY 105.7ci - 75 HP
90ELPT EFI 4-Stroke SHI0132 2006 MERCURY 105ci - 90 HP
90ELPT EFI 4-Stroke SHI0132 2007 MERCURY 105ci - 90 HP
90ELPT EFI 4-Stroke SHI0132 2008 MERCURY 105ci - 90 HP
90ELPT EFI 4-Stroke SHI0132 2009 MERCURY 105ci - 90 HP
90ELPT EFI 4-Stroke SHI0132 2010 MERCURY 105ci - 90 HP
90ELPT EFI 4-Stroke SHI0132 2011 MERCURY 105ci - 90 HP
90ELPT EFI 4-Stroke SHI0132 2012 MERCURY 105ci - 90 HP
90ELPT EFI 4-Stroke SHI0132 2013 MERCURY 105ci - 90 HP
90ELPT EFI 4-Stroke SHI0132 2014 MERCURY 105ci - 90 HP
90ELXPT EFI 4-Stroke SHI0132 2006 MERCURY 105ci - 90 HP
90ELXPT EFI 4-Stroke SHI0132 2007 MERCURY 105ci - 90 HP
90ELXPT EFI 4-Stroke SHI0132 2008 MERCURY 105ci - 90 HP
90ELXPT EFI 4-Stroke SHI0132 2009 MERCURY 105ci - 90 HP
90ELXPT EFI 4-Stroke SHI0132 2010 MERCURY 105ci - 90 HP
90ELXPT EFI 4-Stroke SHI0132 2011 MERCURY 105ci - 90 HP
90ELXPT EFI 4-Stroke SHI0132 2012 MERCURY 105ci - 90 HP
90ELXPT EFI 4-Stroke SHI0132 2013 MERCURY 105ci - 90 HP
90ELXPT EFI 4-Stroke SHI0132 2014 MERCURY 105ci - 90 HP
