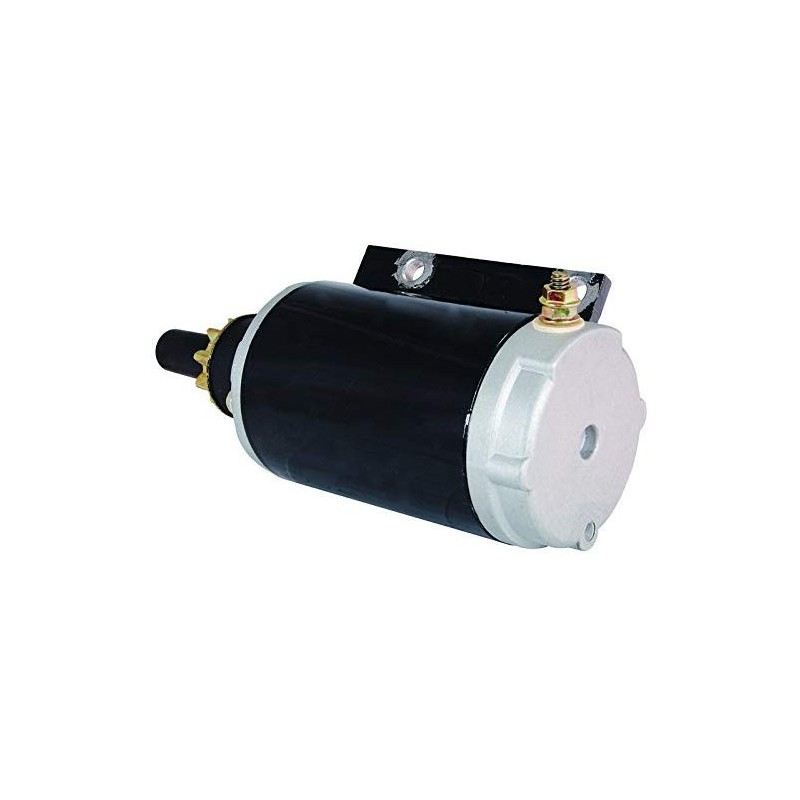

Starter replacing UNITED TECHNOLOGIES SMH12B41 / SM17996 / SM10629

Information:

Voltage 12

KW 0.6

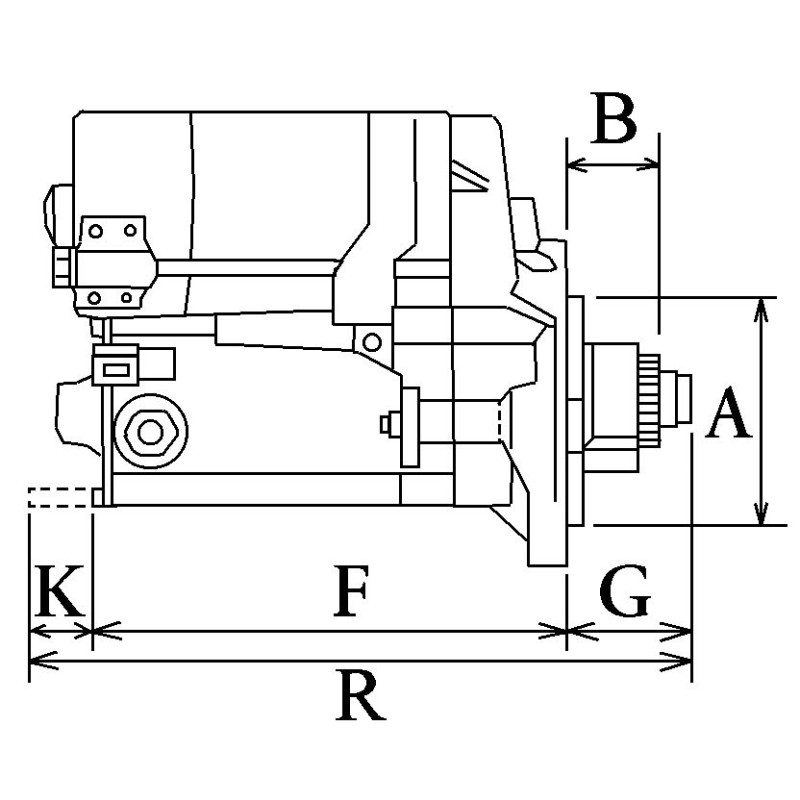

A = Mount flange 63.40

B = Drive distance 44.00

F = Distance / Back 131.50

G = Distance / Front 78.00

H = Nbr of teeth 9

B+ M8

Gear type Dd

O = Distance 70.00

Rotation COUNTER CLOCKWISE

Nbr of mounting holes 1 (0)

Drive Tipo Steel

R = Total length mm 209.00

generic brand

= ARCO MARINE 5370

= BOMBARDIER 0586281ds00

= United technologies SMH12B41 / SM17996 / SM10629 / SM02610 / 5704840-M030SM / 5704820M030SM
1799640MO30SM / 1799640-M030SM

= OMC 383691 / 386657 / 386671 / 391735 / 585050 / 585058 / 585197 / 586281

= PRESTOLITE mgd4106 / mgd4110 / mgd4115 / poa4001 / poa4002

                                    NO CORE EXCHANGE NEEDED

                                                          TWO YEARS WARRANTY
