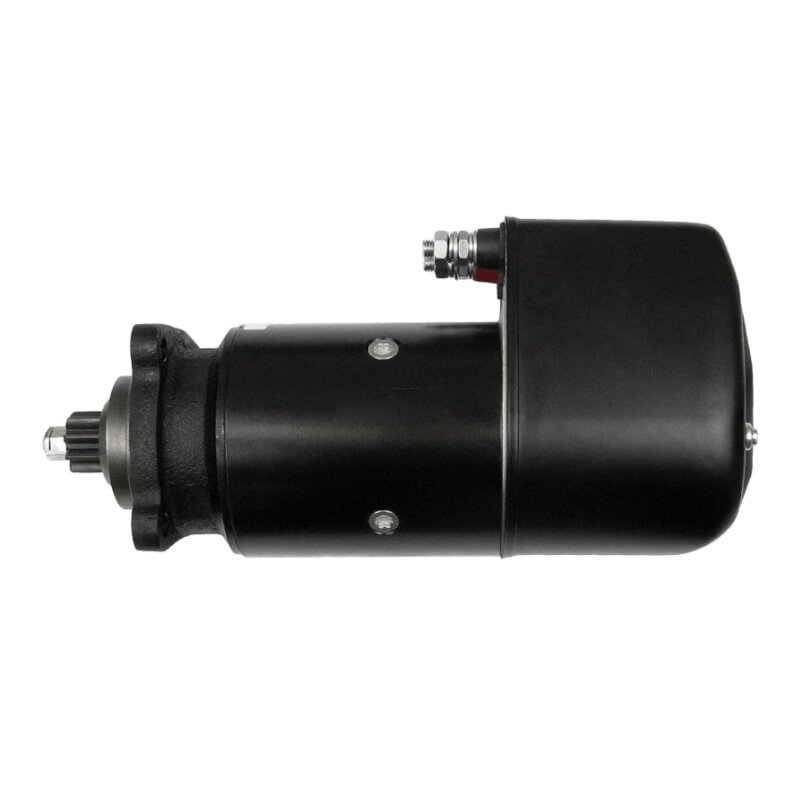

Starter replacing BOSCH 0001416028 / 0001414011 / 0001402079

Information:

Voltage 24

KW 5.4

Insulated return Oui

A = Mount flange 89.00

B = Drive distance 48.00

F = Distance / Back 326.50

G = Distance / Front 61.50

H = Nbr of teeth 9

B+ M10

B- M10

Gear type Dd

O = Distance mm 89.00

O = Distance 2 127.00

O = Distance 3 89.00

Rotation Cr

Nbr of mounting holes 3 (0)

Drive Tipo Steel

generic brand

replacing

= AVF im528

= BOSCH 0001416028 / 0001414011 / 0001402079

= DELCO REMY 19024028 / DRS3764

= Elmot R23.33 / 6330000

= HELLA 8EA737100001

= ISKRA / LETRIKA AZK5431 / 11.139.077 / IS9068

= LUCAS LRS01812

= MAGNETON / Pal 9125350

= PRESTOLITE 860543

= VOLVO 847307 / 881683 / 240503 / 241011 / 842774 / 843510

for VOLVO PENTA type :

L 120 / AQD70B / AQD70BL / AQD70D / D42A / D50A / D70A / D70B / D70B/PP

MD42A / TAMD71 / TAMD72 / TAMD73 / TAMD74 / TMD50A / TMD70B, C

                                 NO CORE EXCHANGE NEEDED

                                                  TWO YEARS WARRANTY
