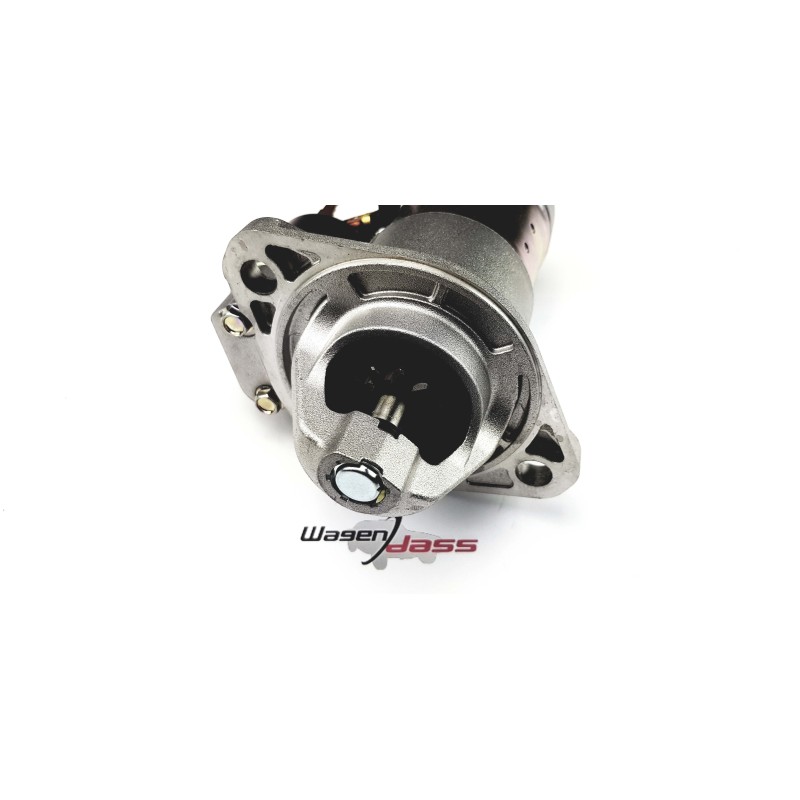

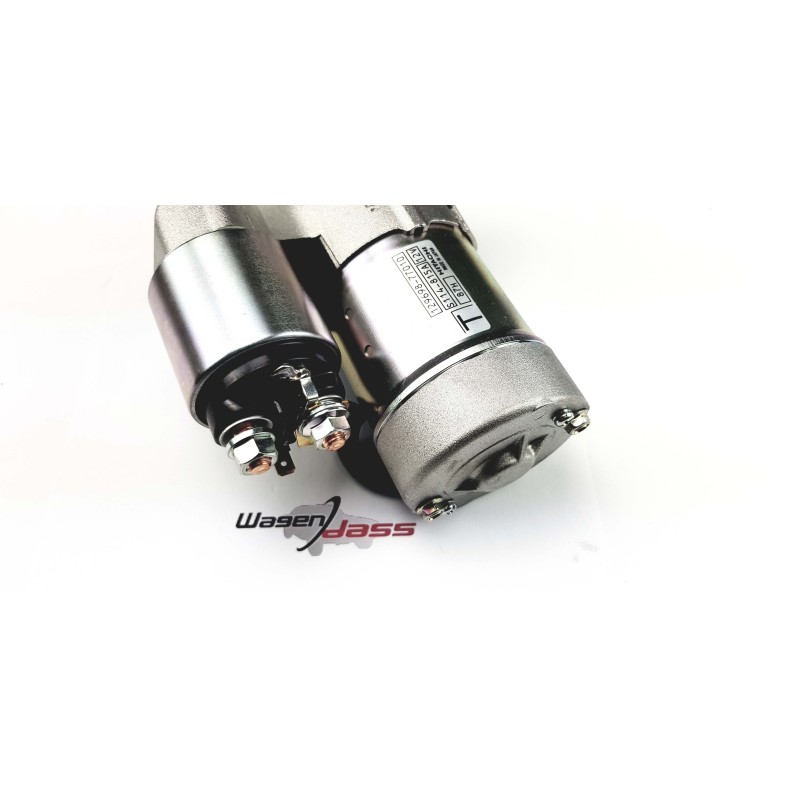

Starter HITACHI S114-815 for YANMAR

Rotation Cr

KW 1.2

Voltage 12

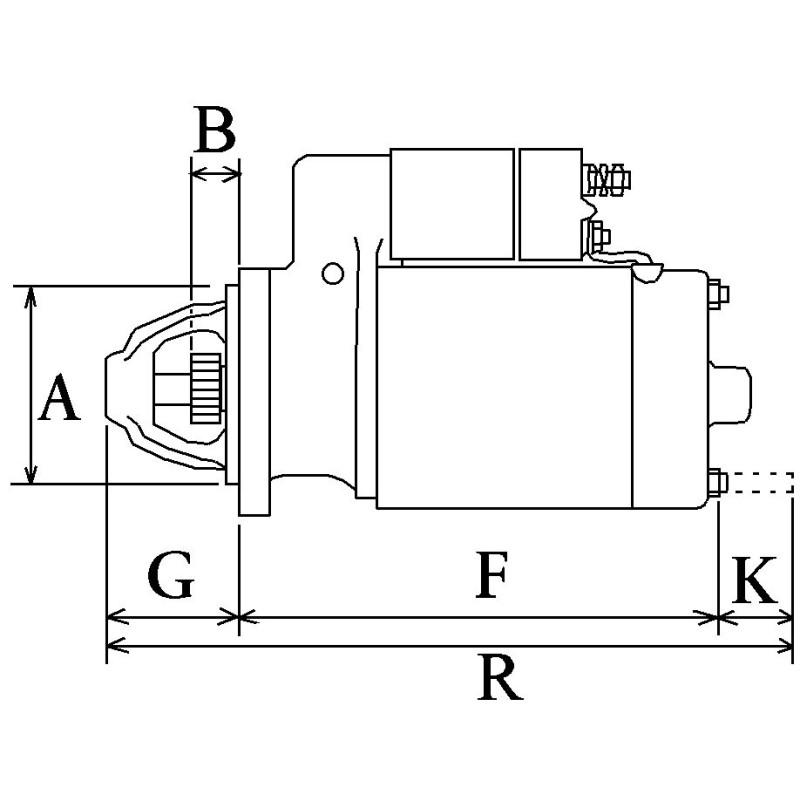

A =Mount flange 94.85

B =Drive distance 19.50

F =Distance / Back 141.50

G =Distance / Front 55.00

Nbr of teeth 11

B+ M8

Gear type Gr

O1 =Distance 119.75

Nbr of mounting holes 2 (0)

Drive Tipo Steel

R =Total length mm 193.00

= DELCO REMY DRS0118

= HITACHI S12-47 / S114-817A / S114-817 / S114-815A / S114-815

= LUCAS LRS01531

= YANMAR 121370-77010 / 129608-77010 / 129698-77010

for engine YANMAR :

- Marine 3JH3-BE

- Marine 3JH3-E

- Marine 3PNE

- Marine 4JH3-E

- Marine JH-II

NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
