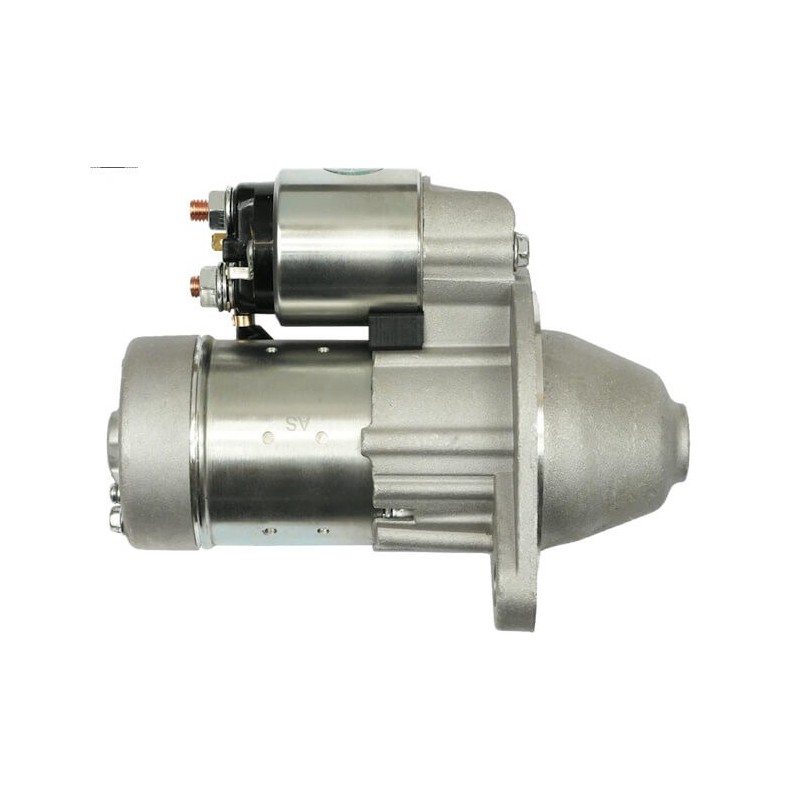

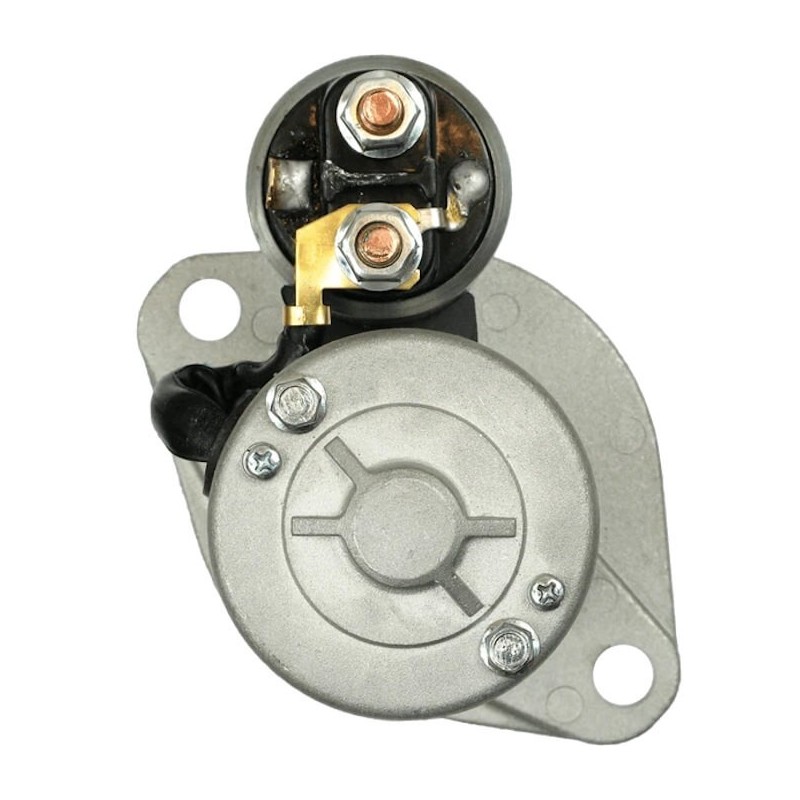

Starter replacing HITACHI S12-47 / S114-817A / S114-817

Information:

Rotation Cr

KW 1.2

Voltage 12

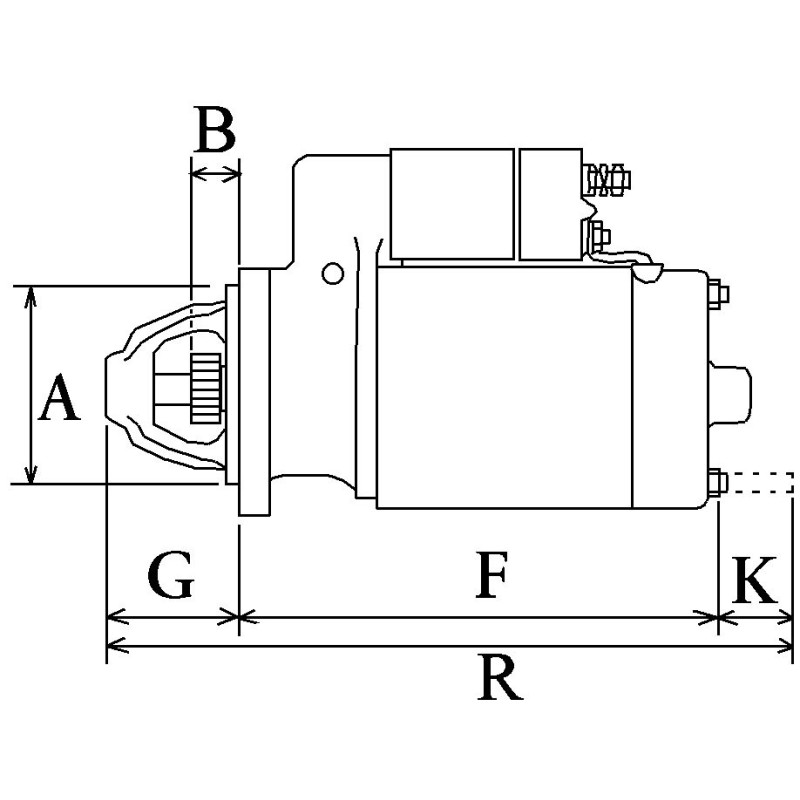

A =Mount flange 94.85

B =Drive distance 19.50

F =Distance / Back 141.50

G =Distance / Front 55.00

Nbr of teeth 11

B+ M8

Gear type Gr

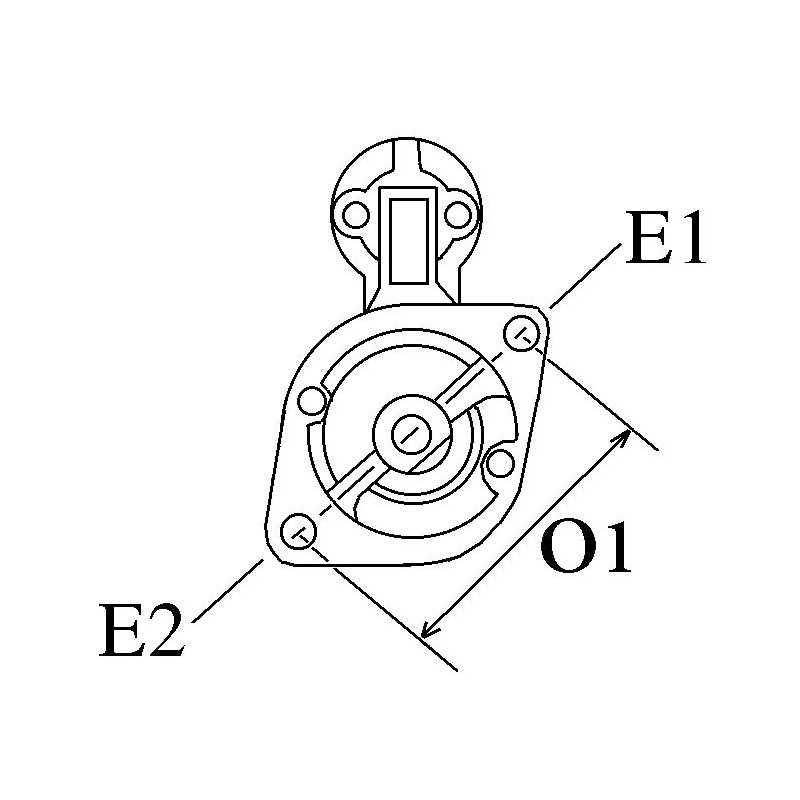

O1 =Distance 119.75

Nbr of mounting holes 2 (0)

Drive Tipo Steel

R =Total length mm 193.00

generic brand

replacing :

BE SURE TO CHECK THE CORRESPONDENCE WITH THE REFERENCE NUMBER OF YOUR STARTER.

starter for engines in board YANMAR 4JH / QM20 / 2QM20

YANMAR Marine 3 JH 3-BE / /
YANMAR Marine 3 JH 3-E / /
YANMAR Marine 3 PNE / /
YANMAR Marine 4 JH 3-E / /
YANMAR Marine JH-II 01/96 12/98

                                      NO CORE EXCHANGE NEEDED

                                                        TWO YEARS WARRANTY
