Starter replacing SM56714 / SM47690 / 5769040- MO30SM

generic brand

Information:

Rotation COUNTER CLOCKWISE

KW 0.5

Voltage 12

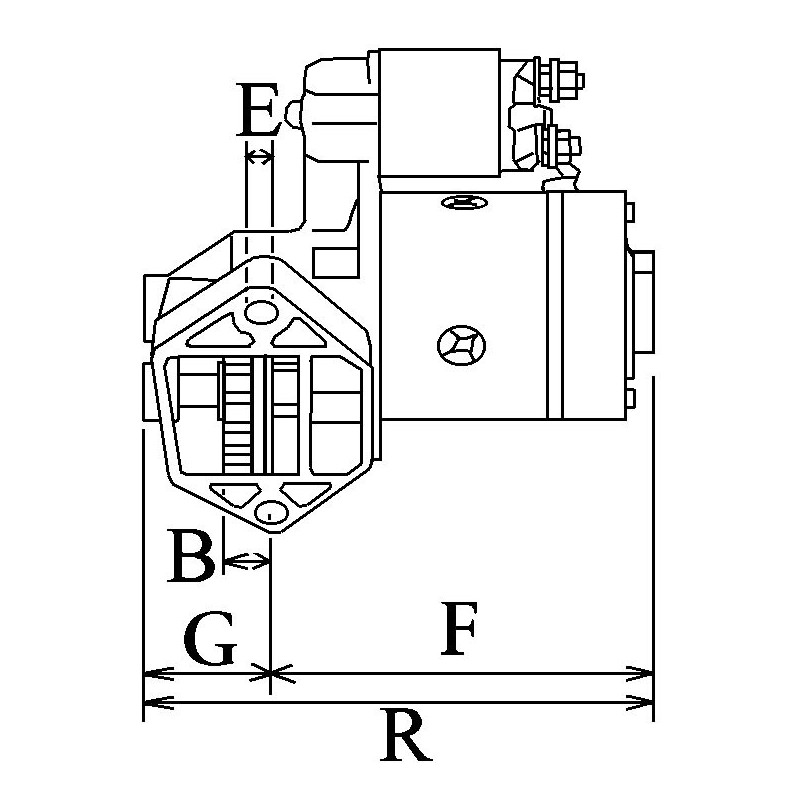

F = Distance / Back 162.00

G =  Distance / Front 105.00

H =  Nbr of teeth 10

I =  B+ 1/4" UNF

N =  Gear type Gr

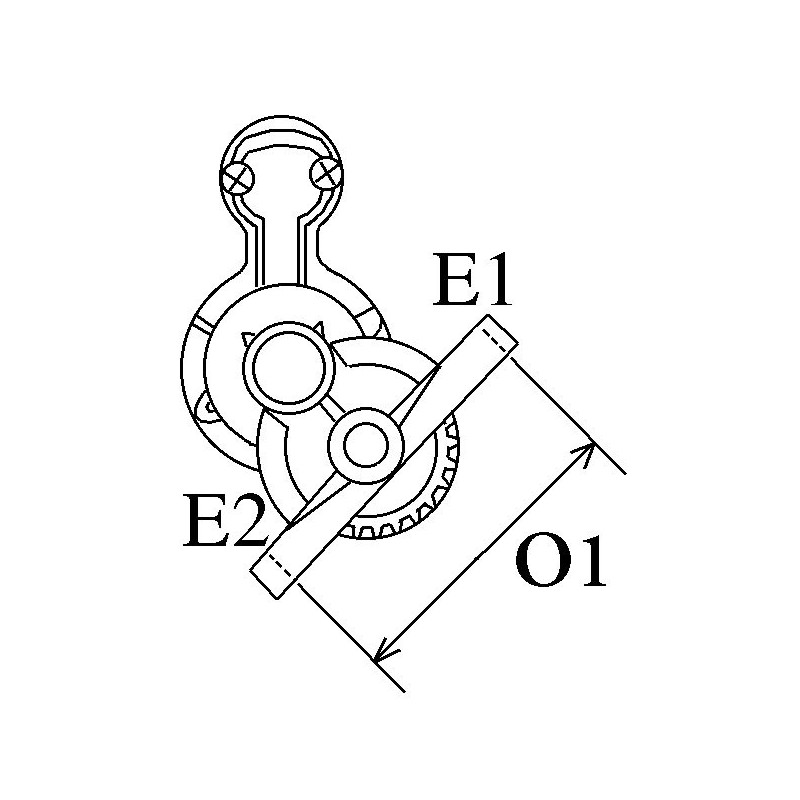

O =  Distance mm 148.50

P =  Nbr of mounting holes 2 (0)

Drive Tipo Steel

R =  Total length mm 267.20

CENTER BETWEEN THE 2 BOTTOM FIXINGS

 : 12 cm

CENTER BETWEEN THE 2 TOP MOUNTS

 : 12 cm

fits:

1998-88 EVINRUDE E200CX
1995-93 EVINRUDE E200CZ
2001-99 EVINRUDE E200F FICHT V6
1990-88 EVINRUDE E200SCL
1998-88 EVINRUDE E200STL
1998-89 EVINRUDE E200TL
1998-88 EVINRUDE E200TX
1995-93 EVINRUDE E200TZ
2001-99 EVINRUDE E200W FICHT V6
1990-88 EVINRUDE E225CL
1999-88 EVINRUDE E225CX
1999-88 EVINRUDE E225CZ
2001-99 EVINRUDE E225F FICHT V6
1994-88 EVINRUDE E225PL
1994-88 EVINRUDE E225PX
1994-93 EVINRUDE E225PZ
1998-94 EVINRUDE E225STL
1993-88 EVINRUDE E225TL
1998-88 EVINRUDE E225TX
1998-93 EVINRUDE E225TZ
1998-91 EVINRUDE E250CX
1995-93 EVINRUDE E250CZ
2001-00 EVINRUDE E250F
1998-91 EVINRUDE E250TX
1995-93 EVINRUDE E250TZ
1988-87 EVINRUDE E275CL
1988-87 EVINRUDE E275CX
1988-87 EVINRUDE E275PL
1986 EVINRUDE E275PTL
1986 EVINRUDE E275PTX
1988-87 EVINRUDE E275PX
1985 EVINRUDE E275TL
1985 EVINRUDE E275TX
1990-88 EVINRUDE E300CL
1987 EVINRUDE E300CL
1995-88 EVINRUDE E300CX
1987 EVINRUDE E300CX
1995-87 EVINRUDE E300PL
1986 EVINRUDE E300PTL
1995-88 EVINRUDE E300PX
1987 EVINRUDE E300PX
1985 EVINRUDE E300TL
1994-89 JOHNSON 185E
2001-88 JOHNSON 200CX
1995-93 JOHNSON 200CZ
2001-99 JOHNSON 200PL
2000-99 JOHNSON 200PX
1990-88 JOHNSON 200SCL
1996 JOHNSON 200SL
1998-88 JOHNSON 200STL
1998 JOHNSON 200TL
1998-88 JOHNSON 200TX
1995-93 JOHNSON 200TZ
2001-00 JOHNSON 200VCX
2001 JOHNSON 200VL
2001-00 JOHNSON 200VX
2001-99 JOHNSON 200WPX
1990-88 JOHNSON 225CL
2000-88 JOHNSON 225CX
1998-93 JOHNSON 225CZ
2001-00 JOHNSON 225HGL
2001-99 JOHNSON 225HPL
2001-88 JOHNSON 225PL
2000-88 JOHNSON 225PX
1995-93 JOHNSON 225PZ
1998-93 JOHNSON 225STL
1994-88 JOHNSON 225TL
1998-88 JOHNSON 225TX
1998-93 JOHNSON 225TZ
2001-00 JOHNSON 225VCX
2001 JOHNSON 225VL
2001-00 JOHNSON 225VX
2000-91 JOHNSON 250CX
2000-92 JOHNSON 250CZ
2000-99 JOHNSON 250PX
2000-99 JOHNSON 250PZ
1997-91 JOHNSON 250TX
1995-93 JOHNSON 250TZ
1988-87 JOHNSON 275CL
1988-87 JOHNSON 275CX
1988-87 JOHNSON 275PL
1986 JOHNSON 275PTL
1986 JOHNSON 275PTX
1988-87 JOHNSON 275PX
1985 JOHNSON 275TL
1985 JOHNSON 275TX
1990-87 JOHNSON 300CL
1995-87 JOHNSON 300CX
1995-87 JOHNSON 300PL
1986 JOHNSON 300PTL
1995-87 JOHNSON 300PX
1985 JOHNSON 300TL
