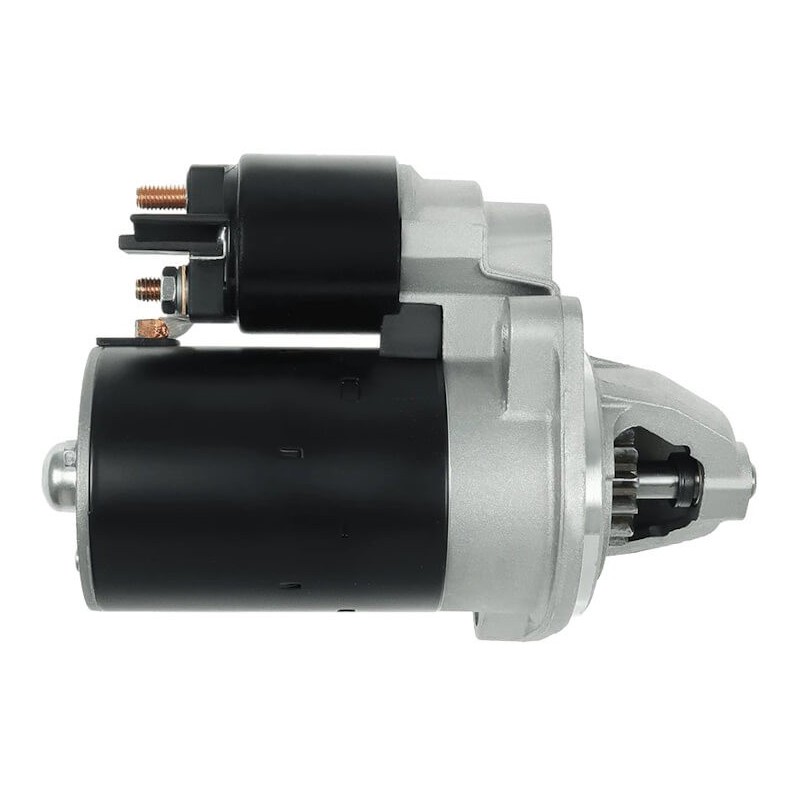

Starter ISKRA aze2160 / AZF3566 for BUKH marine

Information:

Voltage 12

KW 1.2

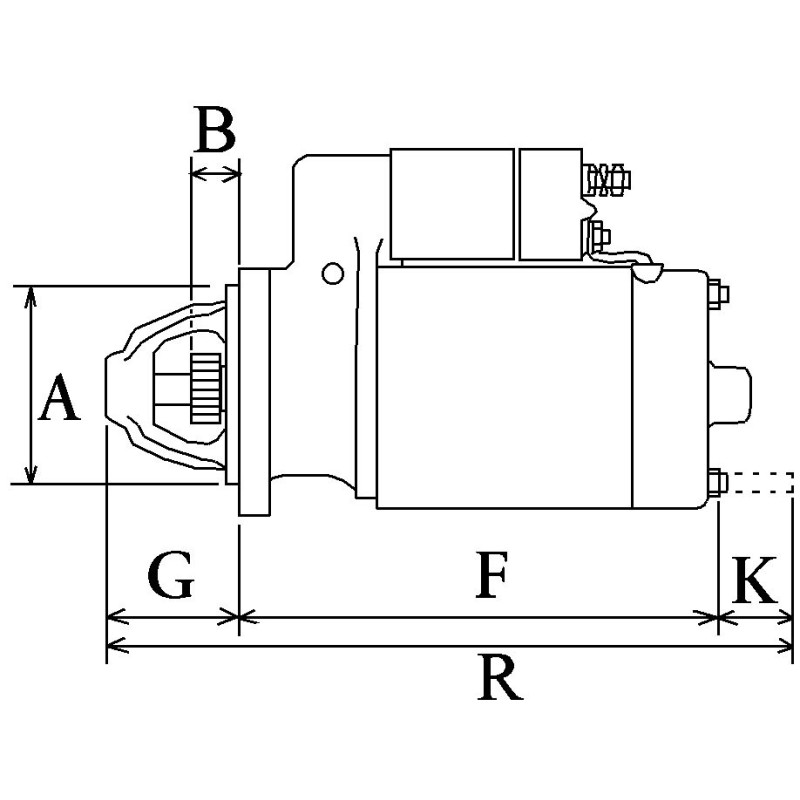

A = Mount flange 82.00

B = Drive distance 21.00

F = Distance / Back 154.50

G = Distance / Front 60.00

H = Nbr of teeth 13

B+ M8

Gear type Dd

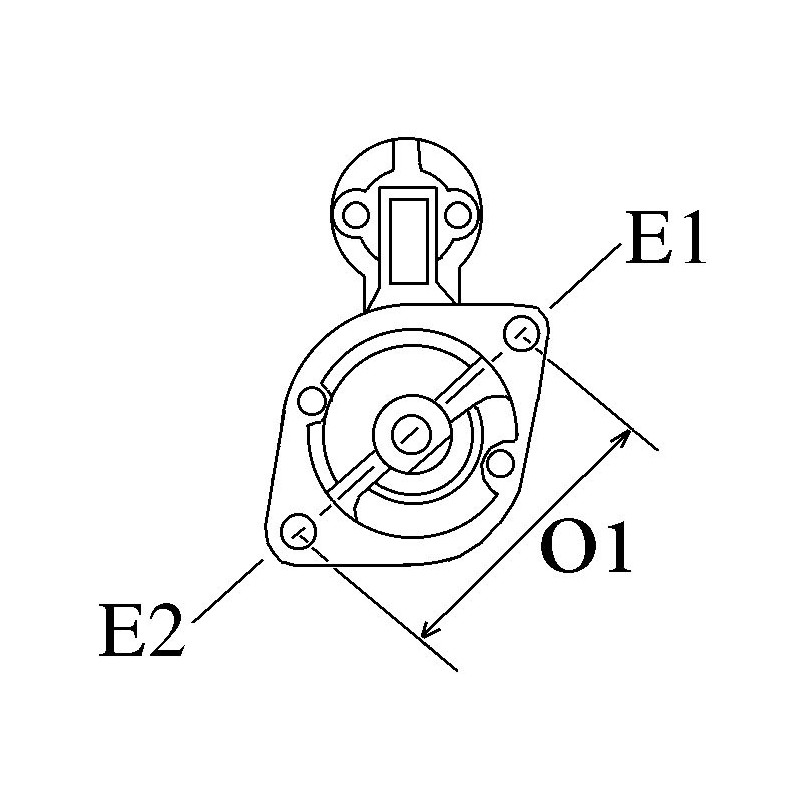

O = Distance 104.00

Rotation COUNTER CLOCKWISE

Nbr of mounting holes 2 (0)

Drive Tipo Steel

Remarks OE unit has an opening on opposite side. w111398 should be mounted "upside down" (solenoid downward).

                               R = Total length mm 215.00

= BOSCH 0001315004 /  0001314031

= ISKRA AZF3566 / AZE2160 / 11.131.285 / 11.130.782 / IS0782 / IS1107 / is1112

= LUCAS LRS01044 / drs0278

= BUKH 61201650 / 612A1650

= VALEO d9e51

                                      NO CORE EXCHANGE NEEDED

                                                      TWO YEARS WARRANTY
