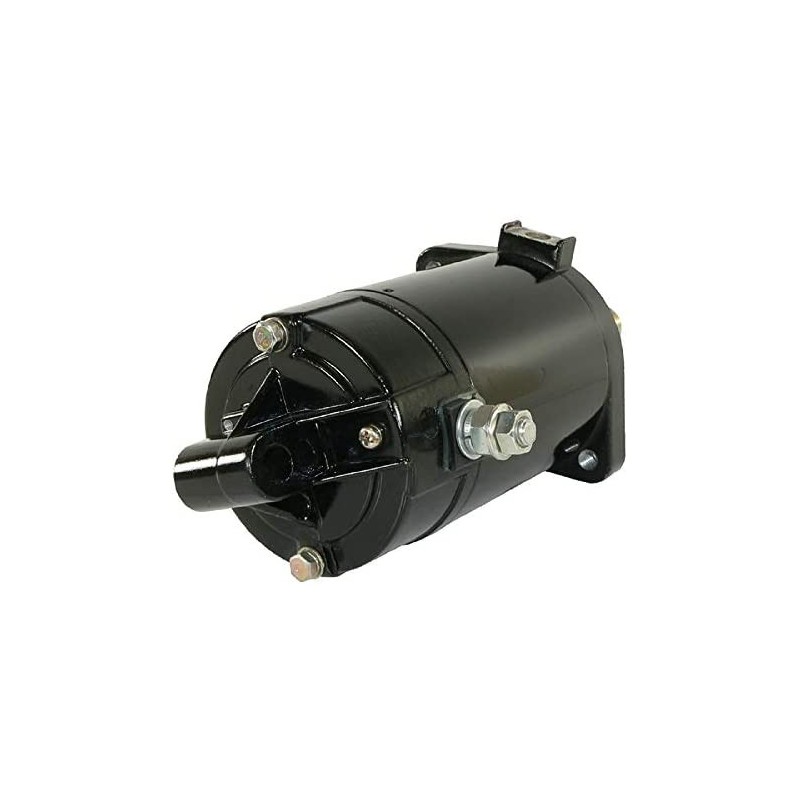

Starter replacing HITACHI S114-323C / S114-323B / S114-323A
Starter NEW for YANMAR marine
PRESTOLITE 20513554TBA, YAMAHA 6E5-81800-10, 6E5-81800-10-00, 6E5-81800-11, 6E5-81800-11-00, 6E5-81800-12, 6E5-81800-12-00
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 12 | |
| KW | 1.1 | |
Physical Information | ||
|---|---|---|
| A | Mount flange | 67.00 |
| E | Mounting holes | M8 |
| E | Mounting holes 2 | M8 |
| B | Drive distance | 32.00 |
| F | Distance / Back | 134.00 |
| G | Distance / Front | 61.00 |
| H | Nbr of teeth | 9 |
| I | B+ | M8 |
| N | Gear type | Dd |
| O | Distance mm | 89.50 |
| P | Rotation | COUNTER CLOCKWISE |
| R | Total length mm | 222.00 |
Generic Brand
HITACHI S114-323, S114-323A, S114-323B, S114-323C, S114-323CN
PRESTOLITE 20513554TBA
YAMAHA 6E5-81800-10, 6E5-81800-10-00, 6E5-81800-11, 6E5-81800-11-00, 6E5-81800-12, 6E5-81800-12-00
fits:
liste non exhaustive
fitsengine YAMAHA hors-bord:
F40 (96-98)
F50 (96-98)
115 (84-95)
130 (84-95)
150 (84-95)
175 (84-95)
200 (84-95)
| YAMAHA | ||||||
| Model | Model série | Reference d origine du produit | Start build | End built | Tipo engine | Horse Power |
| 100 Series | 115 | 1984 01 | 1995 01 | 115 | ||
| 100 Series | 150 | - | - | 150 | ||
| 100 Series | 130 | - | - | 130 | ||
| 100 Series | 175 | - | - | 175 | ||
| 200 Series | 200 | - | - | 200 | ||
| F | F40 | - | - | 0 | ||
| F | F 50 | - | - | 0 | ||
| P | P 115 | - | - | 0 | ||
| P | P 150 | - | - | 0 | ||
| P | P 175 | - | - | 0 | ||
| C | C 115 | - | - | 115 | ||
| L | L 200 | - | - | 0 | ||
| S | S 115 | - | - | 0 | ||
| S | S 130 | - | - | 0 | ||
| S | S 150 | - | - | 0 | ||
| C | C 150 | - | - | 150 | ||
| S | S 175 | - | - | 0 | ||
| S | S 200 | - | - | 0 | ||
| L | L 130 | - | - | 0 | ||
| L | L 150 | - | - | 0 | ||
| T | T 50 | - | - | 0 | ||
| YANMAR | ||||||
| Various Models | Various Models | 01/04/19 | 2005 01 | - | F115TJR | 0 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
