Starter replacing MERCURY MARINE 50-44414 / 50-44415 / 50-77141
Starter replacing MERCURY MARINE 50-44414 / 50-44415 / 50-77141
Starter replacing MERCURY MARINE 50-44414 / 50-44415 / 50-77141
Starter replacing MERCURY MARINE 50-44414 / 50-44415 / 50-77141
Previous
Next
Starter replacing MERCURY MARINE 50-44414 / 50-44415 / 50-77141
Starter replacing MERCURY MARINE 50-44414 / 50-44415 / 50-77141
Starter replacing MERCURY MARINE 50-44414 / 50-44415 / 50-77141
Starter replacing MERCURY MARINE 50-44414 / 50-44415 / 50-77141

Starter replacing MERCURY MARINE 50-44414 / 50-44415 / 50-77141

w5389n

Starter replacing JOHNSON ELECTRIC 4820540, MERCURY MARINE 50-44414, 50-44415, 50-77141, 50-79472, 50-79472-1, 50-79472T2, 50-884238T, Original Reference Number 1491624, 1718328, 4820440, 4820540, PRESTOLITE 20513542TBA, UNITED TECHNOLOGIES 1491624-M030SM, 1491624MO30SM, 1718328-M030SM

Read more
€99.90 Tax included
Price may vary according to your VAT rate
Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Features

Information:

Voltage 12

KW 0.8

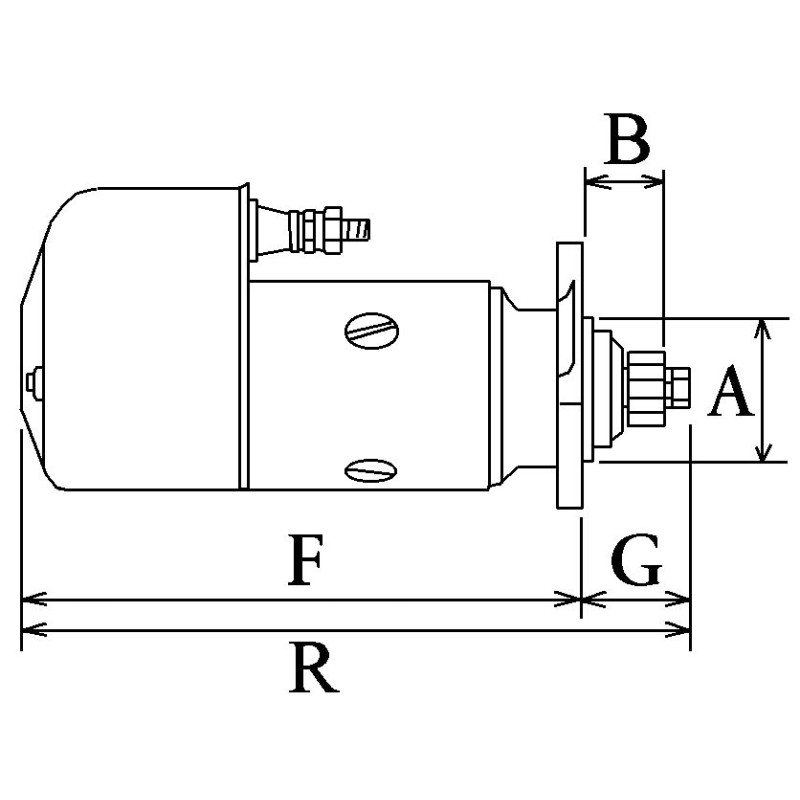

A = Mount flange 55.00

B = Drive distance 47.30

F = Distance / Back 211.30

G = Distance / Front 79.00

H = Nbr of teeth 8

B+ M6

Gear type Dd

Rotation COUNTER CLOCKWISE

Nbr of mounting holes 1 (0)

Drive Tipo Bronze

generic brand

replacing

JOHNSON ELECTRIC 4820540, MERCURY MARINE 50-44414, 50-44415, 50-77141, 50-79472, 50-79472-1, 50-79472T2, 50-884238T, Original Reference Number 1491624, 1718328, 4820440, 4820540

PRESTOLITE 20513542TBA

UNITED TECHNOLOGIES 1491624-M030SM, 1491624MO30SM, 1718328-M030SM, 1718328MO30SM, 4820440-M030SM, 4820440MO30SM, 4820540-M030SM

                                                TWO YEARS WARRANTY

                            NO CORE EXCHANGE NEEDED

Mounting on

Brand Model Typ Year Brand Model Typ Year
MARINER 135EXLPTO 2.0 121.9ci-135H.P. 01.1986 - 12.1988 MERCURY 200EXLPT 2.3 142.2ci-200H.P. 01.1978 - 12.1984
MARINER 135XL 2.0 121.9ci-135H.P. 01.1989 - 12.2000 MERCURY 200CXL 2.3 142.2ci-200H.P. 01.1989 - 12.1990
MARINER 135ELPTO 2.0 121.9ci-135H.P. 01.1986 - 12.1988 MERCURY 220ELPTO Laser XRI 2.3 142.2ci-220H.P. 01.1987 - 12.1988
MARINER 135L 2.0 121.9ci-135H.P. 01.1989 - 12.2000 MERCURY 220EXLPTO Laser XRI 2.3 142.2ci-220H.P. 01.1987 - 12.1988
MARINER 135CXL 2.0 121.9ci-135H.P. 01.1993 - 12.2000 MERCURY 150XL EFI 2.5 153.0ci-150H.P. 01.1995 - 12.2000
MARINER 150ELPTO 2.0 121.9ci-150H.P. 01.1986 - 12.1988 MERCURY 150CXL Saltwater 2.5 153.0ci-150H.P. 01.1999 - 12.2005
MARINER 150L 2.0 121.9ci-150H.P. 01.1989 - 12.1998 MERCURY 150XR6 2.5 153.0ci-150H.P. 01.1992 - 12.1998
MARINER 150L Jet 105 2.0 121.9ci-150H.P. 01.1995 - 12.1998 MERCURY 150L XR6 2.5 153.0ci-150H.P. 01.1999 - 12.2005
MARINER 150XL 2.0 121.9ci-150H.P. 01.1989 - 12.1998 MERCURY 150CXL EFI 2.5 153.0ci-150H.P. 01.1995 - 12.2000
MARINER 150ELPT 2.0 121.9ci-150H.P. 01.1979 - 12.1985 MERCURY 150XL Saltwater 2.5 153.0ci-150H.P. 01.1999 - 12.2005
MARINER 150EXLPT 2.0 121.9ci-150H.P. 01.1979 - 12.1985 MERCURY 150XRI EFI 2.5 153.0ci-150H.P. 01.1993 - 12.1995
MARINER 150ELXPTO 2.0 121.9ci-150H.P. 01.1986 - 12.1988 MERCURY 175CXL 2.5 153.0ci-175H.P. 01.1992 - 12.1999
MARINER 150CXL 2.0 121.9ci-150H.P. 01.1989 - 12.1998 MERCURY 175L 2.5 153.0ci-175H.P. 01.1992 - 12.1999
MARINER 175ELPT 2.0 121.9ci-175H.P. 01.1979 - 12.1980 MERCURY 175XL EFI 2.5 153.0ci-175H.P. 01.1997 - 12.2002
MARINER 175EXLPT 2.0 121.9ci-175H.P. 01.1979 - 12.1980 MERCURY 175CXL EFI 2.5 153.0ci-175H.P. 01.2000 - 12.2000
MARINER 175L Magnum EFI 2.3 142.2ci-175H.P. 01.1991 - 12.1991 MERCURY 175XRI EFI 2.5 153.0ci-175H.P. 01.1992 - 12.1995
MARINER 175ELPTO 2.3 142.2ci-175H.P. 01.1985 - 12.1988 MERCURY 175L EFI 2.5 153.0ci-175H.P. 01.1996 - 12.2002
MARINER 175SKI 2.3 142.2ci-175H.P. 01.1990 - 12.1990 MERCURY 175XL 2.5 153.0ci-175H.P. 01.1992 - 12.1999
MARINER 175EXLPTO 2.3 142.2ci-175H.P. 01.1985 - 12.1988 MERCURY 200XRI EFI 2.5 153.0ci-200H.P. 01.1994 - 12.1995
MARINER 175CXL 2.3 142.2ci-175H.P. 01.1989 - 12.1989 MERCURY 200L Jet 140 2.5 153.0ci-200H.P. 01.1994 - 12.2000
MARINER 175XL 2.3 142.2ci-175H.P. 01.1989 - 12.1991 MERCURY 200CXL 2.5 153.0ci-200H.P. 01.1989 - 12.1990
MARINER 175L 2.3 142.2ci-175H.P. 01.1989 - 12.1991 MERCURY 200ELPTO XRI 2.5 153.0ci-200H.P. 01.1992 - 12.1994
MARINER 200ELPT 2.3 142.2ci-200H.P. 01.1980 - 12.1984 MERCURY 200XL 2.5 153.0ci-200H.P. 01.1989 - 12.1990
MARINER 200EXLPT 2.3 142.2ci-200H.P. 01.1980 - 12.1984 MERCURY 200L 2.5 153.0ci-200H.P. 01.1989 - 12.1990
MARINER 200XL 2.3 142.2ci-200H.P. 01.1989 - 12.1990 MERCURY 225CS Promax Racing 2.5 153.0ci-225H.P. 01.1998 - 12.2000
MARINER 200CXL 2.3 142.2ci-200H.P. 01.1989 - 12.1990 MERCURY 225SS Promax Racing 2.5 153.0ci-225H.P. 01.1998 - 12.2000
MARINER 200ELPTO 2.3 142.2ci-200H.P. 01.1985 - 12.1988 MERCURY 225CL Promax Racing 2.5 153.0ci-225H.P. 01.1998 - 12.2000
MARINER 200L 2.3 142.2ci-200H.P. 01.1989 - 12.1990 MERCURY 225L Promax Racing 2.5 153.0ci-225H.P. 01.1998 - 12.2000
MARINER 200EXLPTO 2.3 142.2ci-200H.P. 01.1985 - 12.1988 MERCURY EFI 200CXL 2.5   01.1994 - 12.2005
MARINER 220EFIEXLPTO Magnum 2.3 142.2ci-220H.P. 01.1987 - 12.1988 MERCURY EFI 200L 2.5   01.1996 - 12.2005
MARINER 220EFIELPTO Magnum 2.3 142.2ci-220H.P. 01.1987 - 12.1988 MERCURY EFI 200XL 2.5   01.1994 - 12.2005
MARINER 150XL EFI 2.5 153.0ci-150H.P. 01.1994 - 12.2000 MERCURY 250XXL 3.4 207.0ci-250H.P. 01.1989 - 12.1990
MARINER 150 Magnum EFI 2.5 153.0ci-150H.P. 01.1992 - 12.1998 MERCURY 250XL 3.4 207.0ci-250H.P. 01.1989 - 12.1990
MARINER 150CXL EFI 2.5 153.0ci-150H.P. 01.1994 - 12.2000 MERCURY 275CXL 3.4 207.0ci-275H.P. 01.1991 - 12.1994
MARINER 150 Magnum 2.5 153.0ci-150H.P. 01.1994 - 12.2000 MERCURY 275L 3.4 207.0ci-275H.P. 01.1991 - 12.1993
MARINER 150XL Saltwater 2.5 153.0ci-150H.P. 01.1999 - 12.2000 MERCURY 275XXL 3.4 207.0ci-275H.P. 01.1989 - 12.1994
MARINER 150L EFI 2.5 153.0ci-150H.P. 01.1999 - 12.2000 MERCURY 275CXXL 3.4 207.0ci-275H.P. 01.1991 - 12.1994
MARINER 150L XR6 2.5 153.0ci-150H.P. 01.1999 - 12.2000 MERCURY 275XL 3.4 207.0ci-275H.P. 01.1989 - 12.1994
MARINER 150CXL Saltwater 2.5 153.0ci-150H.P. 01.1999 - 12.2000 MERCURY 300EXLPT 3.4 207.0ci-300H.P. 01.1981 - 12.1983
MARINER 150 Magnum 2.5 153.0ci-150H.P. 01.1989 - 12.1991 MERCURY 300ELPT 3.4 207.0ci-300H.P. 01.1981 - 12.1983
MARINER 175XL 2.5 153.0ci-175H.P. 01.1992 - 12.2000 MERCURY EFI 150CXL Saltwater 2.5   01.1999 - 12.2005
MARINER 175L 2.5 153.0ci-175H.P. 01.1992 - 12.2000 MERCURY EFI 150L 2.5   01.1996 - 12.2005
MARINER 175L Magnum EFI 2.5 153.0ci-175H.P. 01.1992 - 12.1999 MERCURY EFI 150L Saltwater 2.5   01.1999 - 12.2005
MARINER 175CXL 2.5 153.0ci-175H.P. 01.1993 - 12.2000 MERCURY EFI 150XL Saltwater 2.5   01.1999 - 12.2005
MARINER 175XL EFI 2.5 153.0ci-175H.P. 01.1997 - 12.2000 MERCURY 135EXLPTO Marathon 2.0 121.9ci-135H.P. 01.1986 - 12.1988
MARINER 200CXL EFI 2.5 153.0ci-200H.P. 01.1994 - 12.2000 MERCURY 135XL 2.0 121.9ci-135H.P. 01.1989 - 12.2000
MARINER 200L Jet 140 2.5 153.0ci-200H.P. 01.1995 - 12.2000 MERCURY 135ELPTO Marathon 2.0 121.9ci-135H.P. 01.1986 - 12.1988
MARINER 200XL EFI 2.5 153.0ci-200H.P. 01.1994 - 12.2000 MERCURY 135L 2.0 121.9ci-135H.P. 01.1989 - 12.2000
MARINER 200XL 2.5 153.0ci-200H.P. 01.1991 - 12.2000 MERCURY 135CXL 2.0 121.9ci-135H.P. 01.1990 - 12.2000
MARINER 200CXL 2.5 153.0ci-200H.P. 01.1991 - 12.2000 MERCURY 150CXL 2.0 121.9ci-150H.P. 01.1989 - 12.1999
MARINER 200L 2.5 153.0ci-200H.P. 01.1991 - 12.2000 MERCURY 150L Jet 105 2.0 121.9ci-150H.P. 01.1995 - 12.1998
MARINER 200L Magnum EFI 2.5 153.0ci-200H.P. 01.1992 - 12.2000 MERCURY 150ELPT 2.0 121.9ci-150H.P. 01.1976 - 12.1985
MARINER 200XRI EFI 2.5 153.0ci-200H.P. 01.1994 - 12.1995 MERCURY 150XL 2.0 121.9ci-150H.P. 01.1989 - 12.1998
MARINER 250XXL 3.4 207.0ci-250H.P. 01.1989 - 12.1990 MERCURY 150L 2.0 121.9ci-150H.P. 01.1989 - 12.2005
MARINER 250XL 3.4 207.0ci-250H.P. 01.1989 - 12.1990 MERCURY 150ELXPTO 2.0 121.9ci-150H.P. 01.1984 - 12.1988
MARINER 275L 3.4 207.0ci-275H.P. 01.1991 - 12.1993 MERCURY 150ELPTO 2.0 121.9ci-150H.P. 01.1986 - 12.1988
MARINER 275XXL 3.4 207.0ci-275H.P. 01.1991 - 12.1994 MERCURY 150EXLPT 2.0 121.9ci-150H.P. 01.1978 - 12.1985
MARINER 275CXXL 3.4 207.0ci-275H.P. 01.1991 - 12.1994 MERCURY 150ELPTO XR2 2.0 121.9ci-150H.P. 01.1984 - 12.1987
MARINER 275XL 3.4 207.0ci-275H.P. 01.1991 - 12.1994 MERCURY 175ELPT 2.0 121.9ci-175H.P. 01.1976 - 12.1981
MARINER 275CXL 3.4 207.0ci-275H.P. 01.1991 - 12.1994 MERCURY 175EXLPT 2.0 121.9ci-175H.P. 01.1978 - 12.1981
MERCURY 200L Promax Racing   01.1998 - 12.1999 MERCURY 150ELPTO XR4 2.3 142.2ci-150H.P. 01.1988 - 12.1991
MERCURY 2.4L Racing   - MERCURY 175EXLPTO 2.3 142.2ci-175H.P. 01.1985 - 12.1988
MERCURY 150L Pro Max   01.1998 - 12.1998 MERCURY 175XLI 2.3 142.2ci-175H.P. 01.1991 - 12.1991
MERCURY 200SS Promax Racing   01.1998 - 12.1999 MERCURY 175CXL 2.3 142.2ci-175H.P. 01.1989 - 12.1989
MERCURY 150SS Pro Max   01.1998 - 12.1998 MERCURY 175XL 2.3 142.2ci-175H.P. 01.1989 - 12.1991
MERCURY 3.4 207.0ci-275H.P. 01.1984 - 12.1987 MERCURY 175L 2.3 142.2ci-175H.P. 01.1989 - 12.1991
MERCURY 2.5 280H.P. 01.1998 - 12.2005 MERCURY 175ELPTO 2.3 142.2ci-175H.P. 01.1985 - 12.1988
    MERCURY 200ELPTO 2.3 142.2ci-200H.P. 01.1984 - 12.1988
    MERCURY 200CXL 2.3 142.2ci-200H.P. 01.1989 - 12.1990
    MERCURY 200EXLPTO 2.3 142.2ci-200H.P. 01.1984 - 12.1988
    MERCURY 200ELPTO XRI 2.3 142.2ci-200H.P. 01.1989 - 12.1991
    MERCURY 200XL 2.3 142.2ci-200H.P. 01.1989 - 12.1990
    MERCURY 200ELPT 2.3 142.2ci-200H.P. 01.1978 - 12.1984
