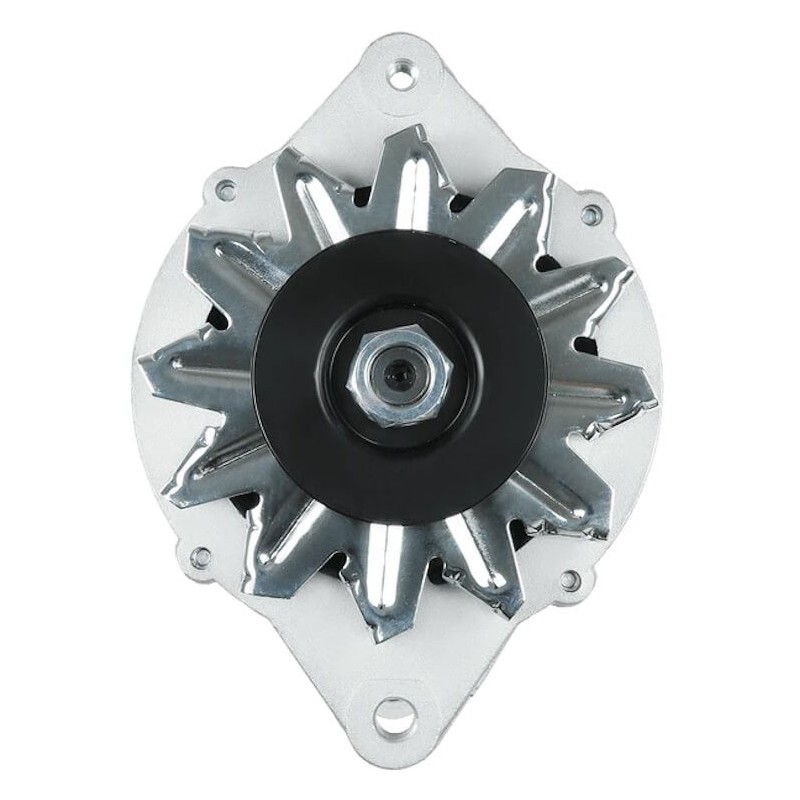

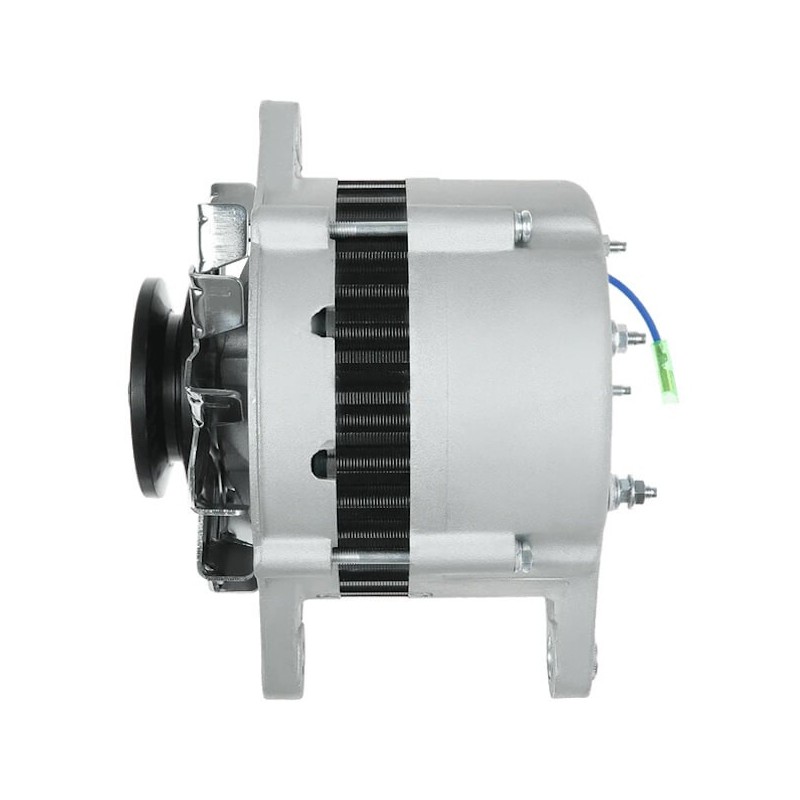

Alternator replacing HITACHI LR180-03C / LR180-03B / LR180- 03A

Alternator for boats replacing HITACHI LR180-03C / LR180-03B / LR180- 03A Fits Yanmar / John Deere

Name: Alternator for boats replacing HITACHI LR180-03C / LR180-03B / LR180- 03A Fits Yanmar / John Deere
SKU: w112375
Price: 109.9 EUR
Availability: InStock

Reference : w112375

Alternator NEW for YANMAR

= HITACHI LR180-03 / LR180-03B / LR180-03A / LR180-03C / YANMAR 119573-77200 / 119573-77201 / 129470-77200

= 0241548

New alternator, 80 amps, 14 volts. Fits Yanmar and John Deere engines

for motor :

3JH2 BE-E (91-99)
3JH3 E (99-03)
3JH4E (03&+)
4JH2 CE-DTE-E-HTE-TE-UTE (88&+)
4JH3 CE-DTE-HTE-TCE-TE (94-03)
4LH DTE-STE-HTE (87&+)
6LY (92&+)
NO CORE EXCHANGE NEEDED

€109.90 Tax included

Price may vary according to your VAT rate

Fast delivery

Add product to favorites

2-year warranty

No instructions, no return of the old

Secure payments

Reference

112375	CARGO
119573-77200	YANMAR
119573-77201	YANMAR
12272N	WAI
20145361BN	REAL
20145361OE	REAL
20150112	PRESTOLITE
2020163.0	SANDO
2020163.1	SANDO
204-10138	ROBERT'S
2531	CEVAM
28-2811	ELSTOCK
553242RI	KUHNER
70-25-12272	WILSON
90-25-1093	WILSON
985.001.080.200	WAI
985.001.080.515	WAI
AG2121	GHIBAUDI
ALH5732	KRAUF
ALT221630	SIOM
ALT32087	WOODAUTO
ALTL705	3EFFE
CAL20163AS	CASCO
CAL20163GS	CASCO
LR180-03	HITACHI
LR180-03B	HITACHI
LR180-03C	HITACHI
LRA01632	LUCAS
LRA1632	LUCAS
UD14867A	AS-PL
PRAL705	3EFFE
A-8520	AINDE
CGB-18003	AINDE
CGB-82811	AINDE
LR180-03A	HITACHI
446855	LOGISTIK
A12HT0448A2	SIDAT
5520925	MEAT & DORIA
ALT3165	ELECTROLOG
12947077200	YANMAR
HAL18003C	HITACHI
LR18004	HITACHI
A2120S	AS-PL
F032112375	CARGO
AM-3314	AUTO MAGNETO

Features

All of our alternators and starters are brand new and come with a two-year warranty.

About Us

WAGENDASS is a French company based north of Lyon.
WAGENDASS is a registered trademark recognized by the European Union.

Our Logistics

Thanks to our numerous warehouses across Europe and our partnerships with suppliers,
orders are shipped quickly via various carriers.

Product Quality
Our alternators and starters are sold new, come with a two-year warranty, and require no return of the old unit
to simplify the ordering process for the customer
there is therefore no need to return the old product

Our Suppliers
Thanks to our extensive experience in the electrical field
and a partnership spanning some forty years with our suppliers
we are able to ensure high-quality products for our customers

Information:

Voltage 14

Amp 80

Isolant

Earth-isolated

, Plug type W

Physical Information
D	Bracket hole	10.40
G	Belt. adj. bracket hole	M8
B	Width/holder arm	13.15
E	Belt. adj. brackethole pos.	60
C	Mount. bracket dist	82.00
H	Pulley dia.	73.65
A	Pulley dist.	42.50
i	Grooves/pulley	1
j	Radius	89.00
j	Radius 2	85.00
k	Position B +	M5
n	Rotation	CW
o	Plug no. 1	PL09
Q	Type prise W	Plug
R	Total length mm	167.00

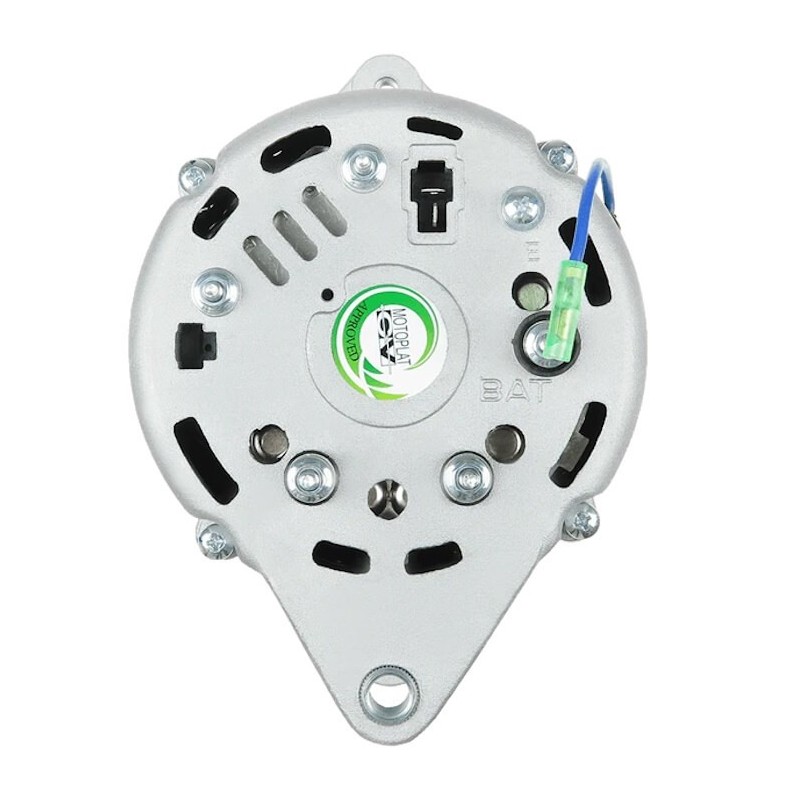

Earth-isolated alternator .
You must fix the negative battery terminal on one of the two M5 insulated screws / studs, located near the mounting foot / fixing point.

= HITACHI LR180-03, LR180-03A, LR180-03B, LR180 -03C

= YANMAR 119573-77200 / 119573-77201 / 129470-77200

PRESTOLITE 20150112

generic brand

3JH2	AHI0059	1991	YANMAR	3cyl Diesel
3JH2	AHI0059	1992	YANMAR	3cyl Diesel
3JH2	AHI0059	1993	YANMAR	3cyl Diesel
3JH2	AHI0059	1994	YANMAR	3cyl Diesel
3JH2	AHI0059	1995	YANMAR	3cyl Diesel
3JH2	AHI0059	1996	YANMAR	3cyl Diesel
3JH2	AHI0059	1997	YANMAR	3cyl Diesel
3JH2	AHI0059	1998	YANMAR	3cyl Diesel
3JH2	AHI0059	1999	YANMAR	3cyl Diesel
3JH2BE	AHI0059	1991	YANMAR	3cyl Diesel
3JH2BE	AHI0059	1992	YANMAR	3cyl Diesel
3JH2BE	AHI0059	1993	YANMAR	3cyl Diesel
3JH2BE	AHI0059	1994	YANMAR	3cyl Diesel
3JH2BE	AHI0059	1995	YANMAR	3cyl Diesel
3JH2BE	AHI0059	1996	YANMAR	3cyl Diesel
3JH2BE	AHI0059	1997	YANMAR	3cyl Diesel
3JH2BE	AHI0059	1998	YANMAR	3cyl Diesel
3JH2BE	AHI0059	1999	YANMAR	3cyl Diesel
3JH2E	AHI0059	1991	YANMAR	3cyl Diesel
3JH2E	AHI0059	1992	YANMAR	3cyl Diesel
3JH2E	AHI0059	1993	YANMAR	3cyl Diesel
3JH2E	AHI0059	1994	YANMAR	3cyl Diesel
3JH2E	AHI0059	1995	YANMAR	3cyl Diesel
3JH2E	AHI0059	1996	YANMAR	3cyl Diesel
3JH2E	AHI0059	1997	YANMAR	3cyl Diesel
3JH2E	AHI0059	1998	YANMAR	3cyl Diesel
3JH2E	AHI0059	1999	YANMAR	3cyl Diesel
3JH3	AHI0059	1999	YANMAR	3cyl Diesel
3JH3	AHI0059	2000	YANMAR	3cyl Diesel
3JH3	AHI0059	2001	YANMAR	3cyl Diesel
3JH3	AHI0059	2002	YANMAR	3cyl Diesel
3JH3	AHI0059	2003	YANMAR	3cyl Diesel
3JH3E	AHI0059	0	YANMAR	3cyl Diesel
3JH3E-YEU	AHI0059	0	YANMAR	3cyl Diesel
3JH4E	AHI0059	0	YANMAR	3cyl 100ci 1.64L
3JH4E	AHI0059	3	YANMAR	3cyl 100ci 1.64L
3YM20	AHI0059	0	YANMAR	3cyl Diesel
3YM20	AHI0059	4	YANMAR	3cyl Diesel
3YM30	AHI0059	0	YANMAR	3cyl 68ci 1.116L
3YM30	AHI0059	4	YANMAR	3cyl 68ci 1.116L
4JH-TE	AHI0059	0	YANMAR	4cyl Diesel
4JH-TE	AHI0059	82	YANMAR	4cyl Diesel
4JH2-CE	AHI0059	0	YANMAR	4cyl Diesel
4JH2-CE	AHI0059	88	YANMAR	4cyl Diesel
4JH2-DTE	AHI0059	0	YANMAR	4cyl Diesel
4JH2-DTE	AHI0059	88	YANMAR	4cyl Diesel
4JH2-E	AHI0059	0	YANMAR	4cyl Diesel
4JH2-E	AHI0059	88	YANMAR	4cyl Diesel
4JH2-HTE	AHI0059	0	YANMAR	4cyl Diesel
4JH2-HTE	AHI0059	88	YANMAR	4cyl Diesel
4JH2-TE	AHI0059	0	YANMAR	4cyl Diesel
4JH2-TE	AHI0059	88	YANMAR	4cyl Diesel
4JH2-UTE	AHI0059	0	YANMAR	4cyl Diesel
4JH2-UTE	AHI0059	88	YANMAR	4cyl Diesel
4JH3-CE	AHI0059	1994	YANMAR	4cyl Diesel
4JH3-CE	AHI0059	1995	YANMAR	4cyl Diesel
4JH3-CE	AHI0059	1996	YANMAR	4cyl Diesel
4JH3-CE	AHI0059	1997	YANMAR	4cyl Diesel
4JH3-CE	AHI0059	1998	YANMAR	4cyl Diesel
4JH3-CE	AHI0059	1999	YANMAR	4cyl Diesel
4JH3-CE	AHI0059	2000	YANMAR	4cyl Diesel
4JH3-CE	AHI0059	2001	YANMAR	4cyl Diesel
4JH3-CE	AHI0059	2002	YANMAR	4cyl Diesel
4JH3-CE	AHI0059	2003	YANMAR	4cyl Diesel
4JH3-DTE	AHI0059	1994	YANMAR	4cyl Diesel
4JH3-DTE	AHI0059	1995	YANMAR	4cyl Diesel
4JH3-DTE	AHI0059	1996	YANMAR	4cyl Diesel
4JH3-DTE	AHI0059	1997	YANMAR	4cyl Diesel
4JH3-DTE	AHI0059	1998	YANMAR	4cyl Diesel
4JH3-DTE	AHI0059	1999	YANMAR	4cyl Diesel
4JH3-DTE	AHI0059	2000	YANMAR	4cyl Diesel
4JH3-DTE	AHI0059	2001	YANMAR	4cyl Diesel
4JH3-DTE	AHI0059	2002	YANMAR	4cyl Diesel
4JH3-DTE	AHI0059	2003	YANMAR	4cyl Diesel
4JH3-HTE	AHI0059	1994	YANMAR	4cyl Diesel
4JH3-HTE	AHI0059	1995	YANMAR	4cyl Diesel
4JH3-HTE	AHI0059	1996	YANMAR	4cyl Diesel
4JH3-HTE	AHI0059	1997	YANMAR	4cyl Diesel
4JH3-HTE	AHI0059	1998	YANMAR	4cyl Diesel
4JH3-HTE	AHI0059	1999	YANMAR	4cyl Diesel
4JH3-HTE	AHI0059	2000	YANMAR	4cyl Diesel
4JH3-HTE	AHI0059	2001	YANMAR	4cyl Diesel
4JH3-HTE	AHI0059	2002	YANMAR	4cyl Diesel
4JH3-HTE	AHI0059	2003	YANMAR	4cyl Diesel
4JH3-TCE	AHI0059	1994	YANMAR	4cyl Diesel
4JH3-TCE	AHI0059	1995	YANMAR	4cyl Diesel
4JH3-TCE	AHI0059	1996	YANMAR	4cyl Diesel
4JH3-TCE	AHI0059	1997	YANMAR	4cyl Diesel
4JH3-TCE	AHI0059	1998	YANMAR	4cyl Diesel
4JH3-TCE	AHI0059	1999	YANMAR	4cyl Diesel
4JH3-TCE	AHI0059	2000	YANMAR	4cyl Diesel
4JH3-TCE	AHI0059	2001	YANMAR	4cyl Diesel
4JH3-TCE	AHI0059	2002	YANMAR	4cyl Diesel
4JH3-TCE	AHI0059	2003	YANMAR	4cyl Diesel
4JH3-TE	AHI0059	1994	YANMAR	4cyl Diesel
4JH3-TE	AHI0059	1995	YANMAR	4cyl Diesel
4JH3-TE	AHI0059	1996	YANMAR	4cyl Diesel
4JH3-TE	AHI0059	1997	YANMAR	4cyl Diesel
4JH3-TE	AHI0059	1998	YANMAR	4cyl Diesel
4JH3-TE	AHI0059	1999	YANMAR	4cyl Diesel
4JH3-TE	AHI0059	2000	YANMAR	4cyl Diesel
4JH3-TE	AHI0059	2001	YANMAR	4cyl Diesel
4JH3-TE	AHI0059	2002	YANMAR	4cyl Diesel
4JH3-TE	AHI0059	2003	YANMAR	4cyl Diesel
4JH3E	AHI0059	1994	YANMAR	4cyl Diesel
4JH3E	AHI0059	1995	YANMAR	4cyl Diesel
4JH3E	AHI0059	1996	YANMAR	4cyl Diesel
4JH3E	AHI0059	1997	YANMAR	4cyl Diesel
4JH3E	AHI0059	1998	YANMAR	4cyl Diesel
4JH3E	AHI0059	1999	YANMAR	4cyl Diesel
4JH3E	AHI0059	2000	YANMAR	4cyl Diesel
4JH3E	AHI0059	2001	YANMAR	4cyl Diesel
4JH3E	AHI0059	2002	YANMAR	4cyl Diesel
4JH3E	AHI0059	2003	YANMAR	4cyl Diesel
4JHE	AHI0059	0	YANMAR	4cyl Diesel
4LH-DTE	AHI0059	0	YANMAR	4cyl Diesel
4LH-DTE	AHI0059	87	YANMAR	4cyl Diesel
4LH-HTE	AHI0059	0	YANMAR	4cyl Diesel
4LH-HTE	AHI0059	87	YANMAR	4cyl Diesel
4LH-STE	AHI0059	0	YANMAR	4cyl Diesel
4LH-STE	AHI0059	87	YANMAR	4cyl Diesel
4LH-TE	AHI0059	0	YANMAR	4cyl Diesel
4LHA-DTE	AHI0059	0	YANMAR	4cyl Diesel
4LHA-DTZ	AHI0059	0	YANMAR	4cyl Diesel
4LHA-HTE	AHI0059	0	YANMAR	4cyl Diesel
4LHA-HTZE	AHI0059	0	YANMAR	4cyl Diesel
4LHA-STE	AHI0059	0	YANMAR	4cyl Diesel
4LHA-STZE	AHI0059	0	YANMAR	4cyl Diesel
6LY-ST	AHI0059	0	YANMAR	6cyl Diesel
6LY-ST	AHI0059	92	YANMAR	6cyl Diesel
6LY-STE	AHI0059	0	YANMAR	6cyl Diesel
6LY-STE	AHI0059	92	YANMAR	6cyl Diesel
6LY-STM	AHI0059	0	YANMAR	6cyl Diesel
6LY-STM	AHI0059	92	YANMAR	6cyl Diesel
6LY-STZY	AHI0059	0	YANMAR	6cyl Diesel
6LY-STZY	AHI0059	92	YANMAR	6cyl Diesel
6LY-UT	AHI0059	0	YANMAR	6cyl Diesel
6LY-UT	AHI0059	92	YANMAR	6cyl Diesel
6LY-UTE	AHI0059	0	YANMAR	6cyl Diesel
6LY-UTE	AHI0059	92	YANMAR	6cyl Diesel
6LY-UTM	AHI0059	0	YANMAR	6cyl Diesel
6LY-UTM	AHI0059	92	YANMAR	6cyl Diesel
6LY-UTZY	AHI0059	0	YANMAR	6cyl Diesel
6LY-UTZY	AHI0059	92	YANMAR	6cyl Diesel
6LY2-STE	AHI0059	0	YANMAR	6cyl Diesel
6LY2-STE	AHI0059	92	YANMAR	6cyl Diesel
6LYA-STE	AHI0059	0	YANMAR	6cyl Diesel
6LYA-STE	AHI0059	92	YANMAR	6cyl Diesel
6LYA-UTE	AHI0059	0	YANMAR	6cyl Diesel
6LYA-UTE	AHI0059	92	YANMAR	6cyl Diesel
6LYM-STE	AHI0059	0	YANMAR	6cyl Diesel
6LYM-STE	AHI0059	92	YANMAR	6cyl Diesel
6LYM-UTE	AHI0059	0	YANMAR	6cyl Diesel
6LYM-UTE	AHI0059	92	YANMAR	6cyl Diesel
KBW-20	AHI0059	0	YANMAR
KBW-21	AHI0059	0	YANMAR
KM3A	AHI0059	0	YANMAR
KM5A	AHI0059	0	YANMAR
UJH2E	AHI0059	0	YANMAR

TWO YEARS WARRANTY
NO CORE EXCHANGE NEEDED

Mounting on

Brand	Model	Typ	Year
JOHN DEERE	304H 3.3	4TNE98	01.2000 - 12.2005
YANMAR	Engine	3JH3	01.1999 - 12.2003
YANMAR	Engine	3JH3E	-
YANMAR	Engine	3JH3E-YEU	-
YANMAR	Engine	3YM30	01.2004 - 12.2014
YANMAR	Engine	4JH3-TE	01.1994 - 12.2003
YANMAR	Engine	4JHE	-
YANMAR	Engine	4LH-DTE	01.1987 - 12.1997
YANMAR	Engine	4LH-HTE	01.1987 - 12.1997
YANMAR	Engine	4LH-STE	01.1987 - 12.1997
YANMAR	Engine	4LH-TE	01.1989 - 01.0001
YANMAR	Engine	4LHA-DTE	-
YANMAR	Engine	4LHA-DTZ	-
YANMAR	Engine	4LHA-HTE	-
YANMAR	Engine	4LHA-HTZE	-
YANMAR	Engine	4LHA-STE	-
YANMAR	Engine	4LHA-STZE	-
YANMAR	Engine	6LY-ST	01.1992 - 12.2002
YANMAR	Engine	6LY-STE	01.1992 - 12.2002
YANMAR	Engine	6LY-STM	01.1992 - 12.2002
YANMAR	Engine	6LY-STZY	01.1992 - 12.2002
YANMAR	Engine	6LY-UT	01.1992 - 12.2002
YANMAR	Engine	6LY-UTE	01.1992 - 12.2002
YANMAR	Engine	6LY-UTM	01.1992 - 12.2002
YANMAR	Engine	6LY-UTZY	01.1992 - 12.2002
YANMAR	Engine	6LY2-STE	01.1992 - 12.2002
YANMAR	Engine	6LYA-STE	01.1992 - 12.2002
YANMAR	Engine	6LYA-UTE	01.1992 - 12.2002
YANMAR	Engine	6LYM-STE	01.1992 - 12.2002
YANMAR	Engine	6LYM-UTE	01.1992 - 12.2002
YANMAR	Engine	KBW-20	-
YANMAR	Engine	KBW-21	-
YANMAR	Engine	KM3A	-
YANMAR	Engine	KM5A	-
YANMAR	Engine	UJH2E	-
YANMAR	Engine 0.9	3YM20	01.2004 - 12.2025
YANMAR	Engine 1.4	3JH2	01.1991 - 12.1999
YANMAR	Engine 1.4	3JH2BE	01.1991 - 12.1999
YANMAR	Engine 1.4	3JH2E	01.1991 - 12.1999
YANMAR	Engine 1.6	3JH4E	01.2003 - 12.2009
YANMAR	Engine 1.6	4JH-TE	01.1982 - 12.1992
YANMAR	Engine 1.8	4JH2-CE	01.1988 - 12.1998
YANMAR	Engine 1.8	4JH2-DTE	01.1988 - 12.1998
YANMAR	Engine 1.8	4JH2-E	01.1988 - 12.1998
YANMAR	Engine 1.8	4JH2-HTE	01.1988 - 12.1998
YANMAR	Engine 1.8	4JH2-TE	01/01/88
YANMAR	Engine 1.8	4JH2-UTE	01.1988 - 12.1998
YANMAR	Engine 2.0	4JH3CE	01.1994 - 12.2003
YANMAR	Engine 2.0	4JH3DTE	01.1994 - 12.2003
YANMAR	Engine 2.0	4JH3E	01.1998 - 12.2003
YANMAR	Engine 2.0	4JH3HTE	01.1998 - 12.2003
YANMAR	Engine 2.0	4JH3TCE	01.1998 - 12.2003

Show attestation

Reviews subject to control

1★

2★

3★

4★

5★

9.2/10

Based on 18 reviews

Jean-pierre G.
Published Sep 18, 2025 at 07:57 am (Order date: Sep 08, 2025)

5

- (Translated review)
Robert H.
Published Jul 30, 2025 at 03:24 pm (Order date: Jul 20, 2025)

5

Device has been installed and initially seems to work fine.
Daniel G.
Published Jul 16, 2025 at 02:22 pm (Order date: Jul 10, 2025)

5

Very good (Translated review)
Bertrand v.
Published Jun 24, 2025 at 01:01 pm (Order date: Jun 17, 2025)

5

top (Translated review)
Christian C.
Published Apr 13, 2025 at 09:07 am (Order date: Apr 07, 2025)

5

It will be installed on April 19th, there are different dimensions compared to the plan and my old alternator, I still don't know if it can be mounted (distance between the two mounting brackets). (Translated review)
Jeanpaul C.
Published May 01, 2024 at 06:45 pm (Order date: Apr 16, 2024)

4

not yet mounted but looking for interference suppression condo for vhf (Translated review)
Xavier C.
Published Jun 03, 2023 at 01:53 pm (Order date: May 15, 2023)

3

The product received was not new. The product packaging is damaged inside the parcel, slight trace on the alternator. (Translated review)
Frederic G.
Published May 21, 2023 at 12:50 pm (Order date: May 09, 2023)

4

Product visually conforms to the one to be replaced. I haven't tested it yet. (Translated review)
Acheteur Vérifié
Published Jan 29, 2023 at 09:57 pm (Order date: Jan 24, 2023)

5

Perfect, very fast delivery and excellent packaging Thank you. (Translated review)
Acheteur Vérifié
Published Mar 13, 2022 at 10:45 am (Order date: Mar 02, 2022)

5

compliant (Translated review)
