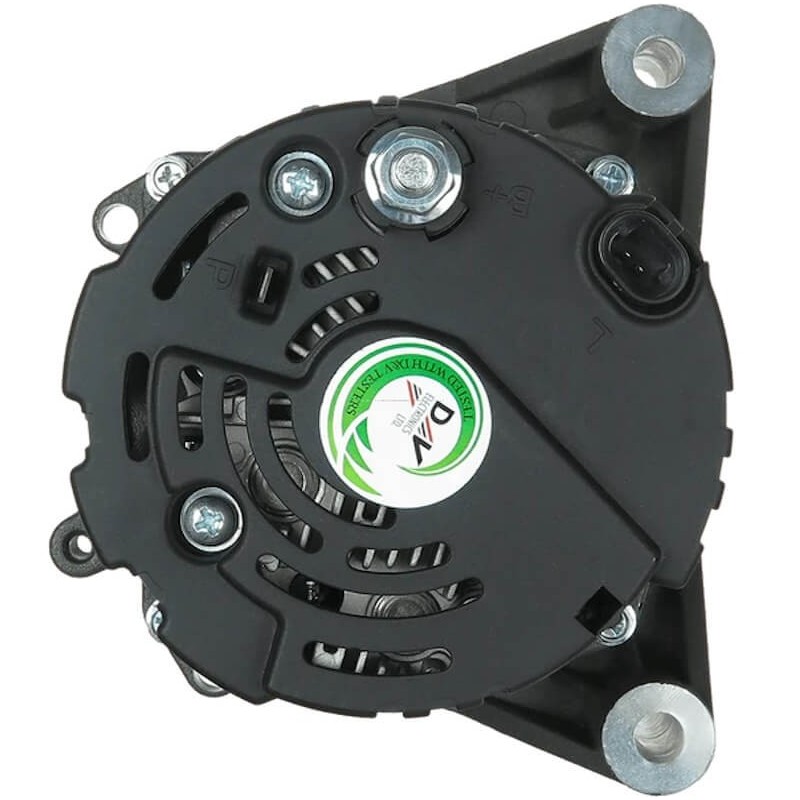

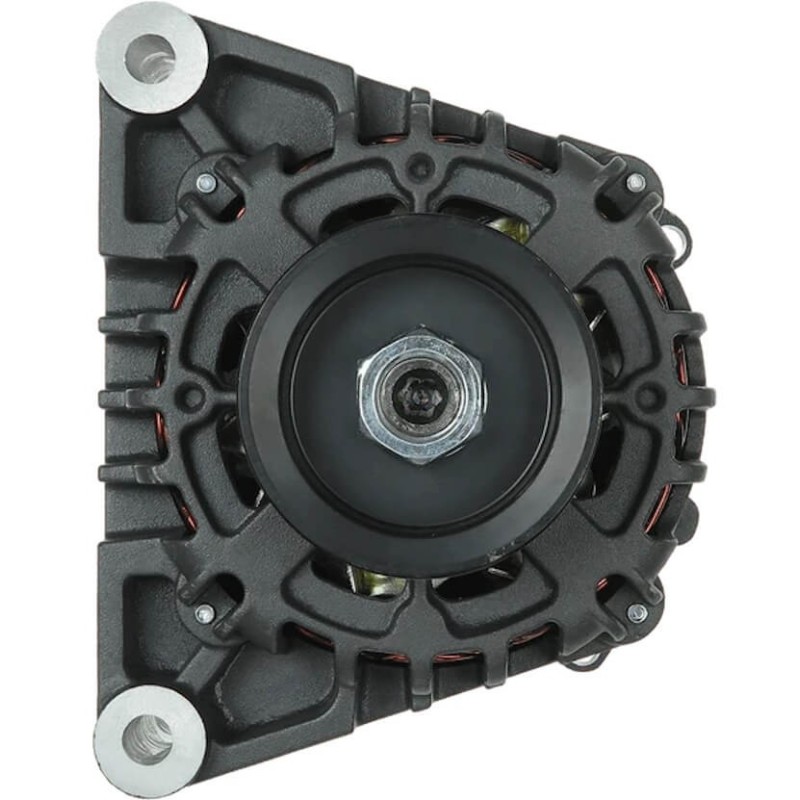

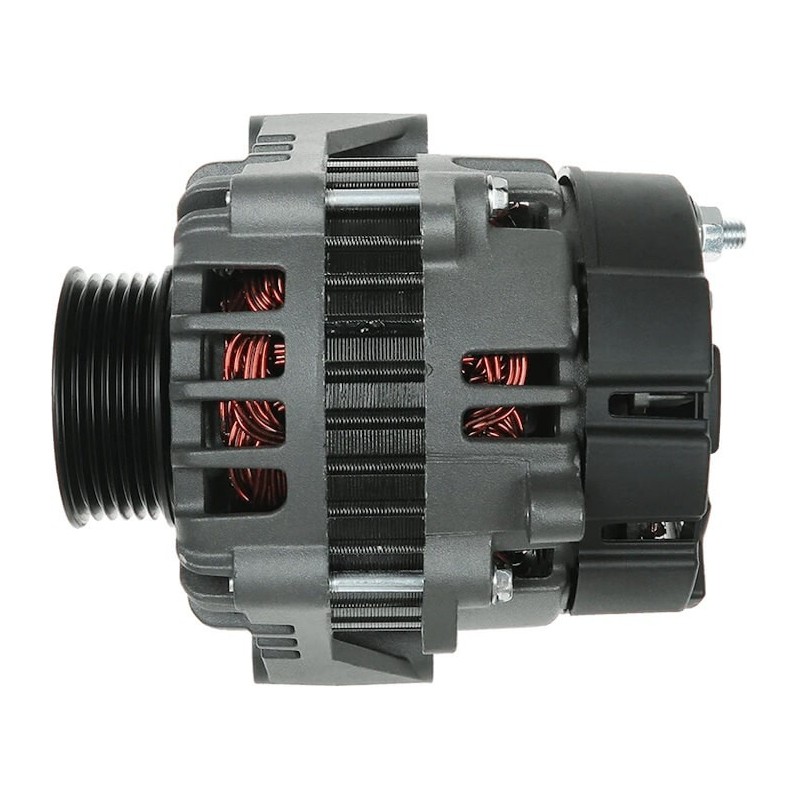

12-volt / 75-amp alternator / 6-groove pulley for Volvo Penta boat
Alternator NEW replacing ARCO 60073
= VALEO A0002655301 / A0002655300 / 425300 / 2655301 / 2655300
= VOLVO 3862665 / 3884950 / 3862613
pulley diameter 49.7 mm
Used on VOLVO PENTA
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
All of our alternators and starters are new and come with a two-year warranty.
About Us
WAGENDASS is a French company based north of Lyon.
WAGENDASS is a registered trademark recognized by the European Union.
Our Logistics
Thanks to our numerous warehouses across Europe and our partnerships with suppliers,
orders are shipped quickly via various carriers.
Product Quality
Our alternators and starters are sold new, come with a two-year warranty, and require no return of the old unit
to simplify the ordering process for the customer
there is therefore no need to return the old product
Our Suppliers
Thanks to our extensive experience in the electrical field
and a partnership spanning some forty years with our suppliers
we are able to ensure high-quality products for our customers
Information:
Electrical Information |
||
|---|---|---|
| Voltage | 14 | |
| Amp | 75 | |

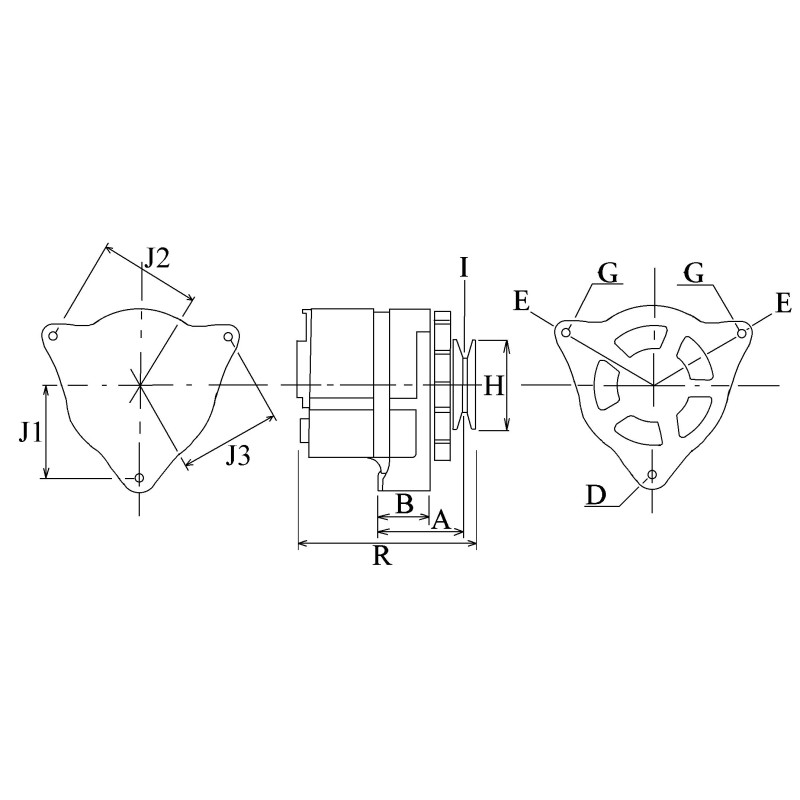

Physical Information |
||
|---|---|---|
| D | Bracket hole | 10.20 |
| G | Belt. adj. bracket hole | 10.20 |
| B | Width/holder arm | 51.00 |
| E | Belt. adj. brackethole pos. | 10 |
| H | Pulley dia. | 63.00 |
| A | Pulley dist. | 70.00 |
| i | Grooves/pulley | 6 |
| k | Position B + | M8x1.25 |
| n | Rotation | CW |

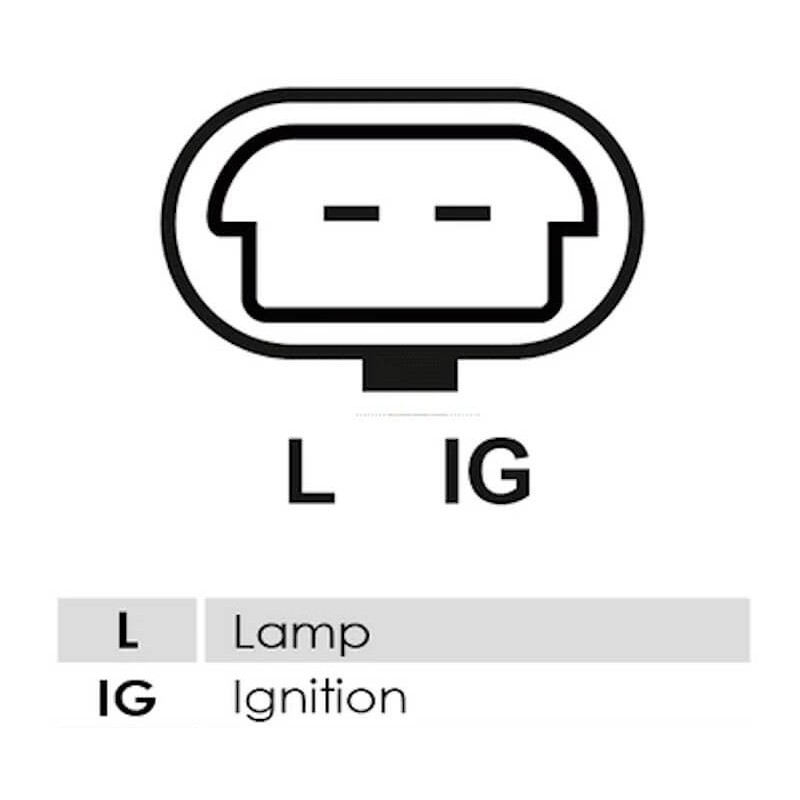

| o | Plug no. 1 | PL77 |
| Q | Type prise W | 6.30 |
generic brand
replacing
|
10443800 |
Alanko |
|---|---|
|
114664 |
Cargo |
|
12671 |
Lester |
|
12671N |
TSA |
|
12673 |
Lester |
|
12673N |
WAI |
|
185882 |
Sierra Marine |
|
2015333 |
Sando |
|
2085018 |
PIC |
|
2655300 |
Valeo |
|
2655300SEL |
+line |
|
2655301 |
Valeo |
|
285630 |
Elstock |
|
32085018 |
Boston Auto |
|
3612671 |
Romaine Electric |
|
3862613 |
Volvo |
|
3862665 |
Volvo |
|
3884950 |
Volvo |
|
3962665 |
Volvo |
|
40040014 |
JN |
|
40040056 |
JN |
|
425300 |
Valeo |
|
441341 |
Logistik |
|
443800 |
Alanko |
|
538118752 |
DRI |
|
553421RI |
DAS |
|
600113 |
Valeo |
|
600114 |
Valeo |
|
815526075 |
PSH |
|
89215724 |
Power Max |
|
90225514 |
Wilson |
|
90225514N |
Wilson |
|
A0002655300 |
Valeo |
|
A0002655301 |
Valeo |
|
A000V655300 |
Valeo |
|
A12671 |
Spider |
|
A135527 |
Short code |
|
A148370 |
Short code |
|
A159898 |
Short code |
|
A3616 |
AS-PL |
|
A3616S |
AS-PL |
|
A9538 |
Dixie |
|
ALT14311 |
Wood Auto |
|
ARE1203 |
Everkraft |
|
AVA0071 |
Arrowhead |
|
AVA1316 |
Quasar |
|
CA12671N |
Ace |
|
CAL15333 |
Casco |
|
CGB13081 |
Ainde |
|
DRA0404 |
Remy |
|
LRA03018 |
Lucas |
|
LRA3018 |
Lucas |
|
META12671 |
MET |
|
N12671 |
BBB Industries |
|
RF79012471 |
Road Force |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Do you have any questions?
The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.
The part number can be numeric or alphanumeric, and can be found on your part.
Once you've found the part number, enter it in the search bar at the top center of our site.
The result will be the replacement part matching your part number.
