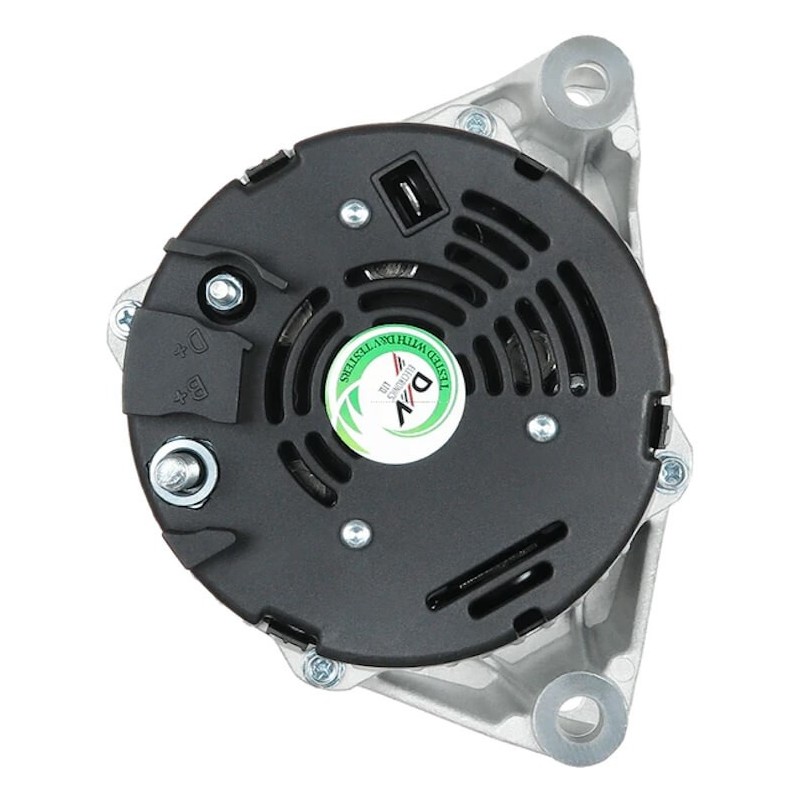

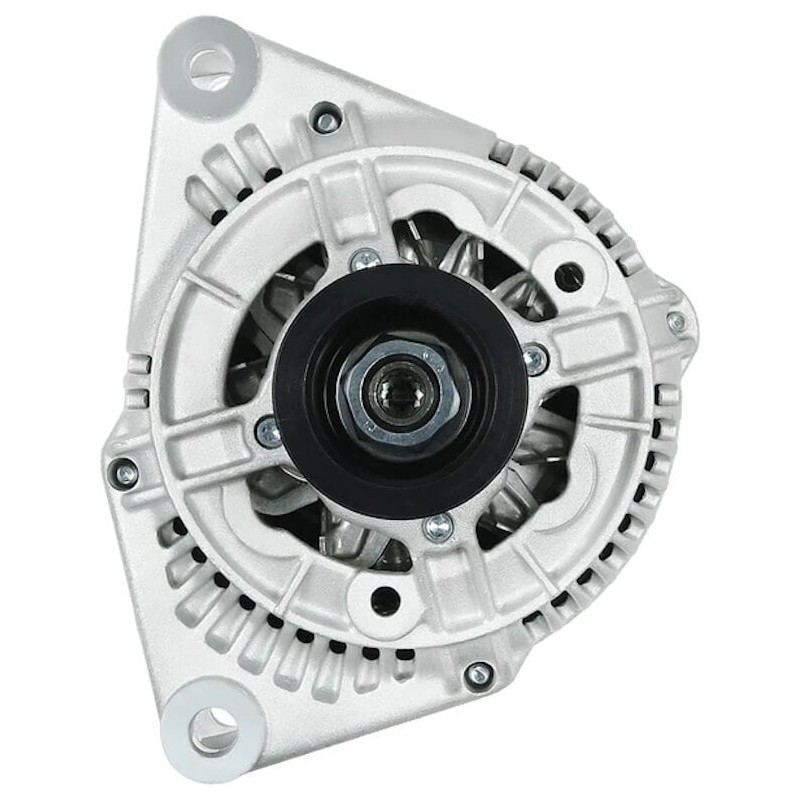

Alternator replacing BOSCH 0123335006 / 0123335002 / 0123320044

Information:

Rotation Cr

Amp 90

Voltage 14

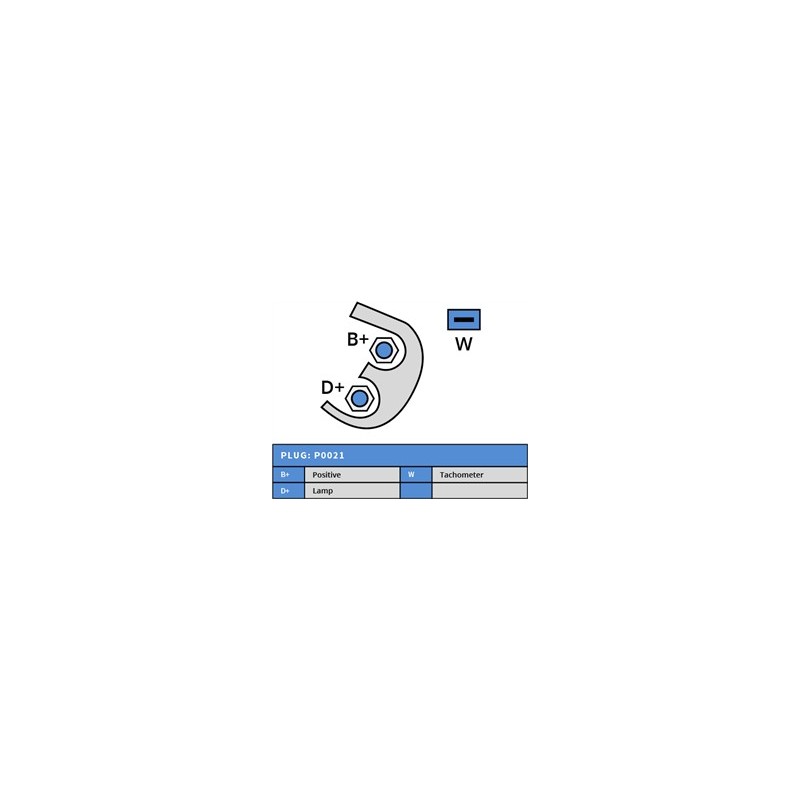

Plug type W

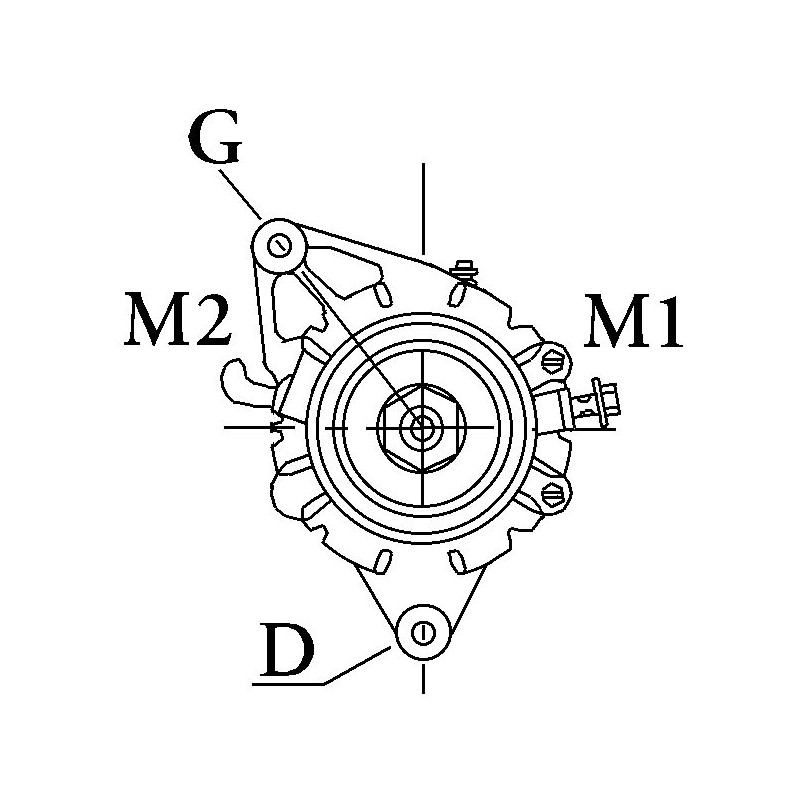

D = Bracket hole 11.00

G = Belt. adj. bracket hole 11.00

B = Width/holder arm 56.00

E = Belt. adj. brackethole pos. 50

H = Pulley dia. 47.00

A = Pulley dist. 92.00

Grooves/pulley 6

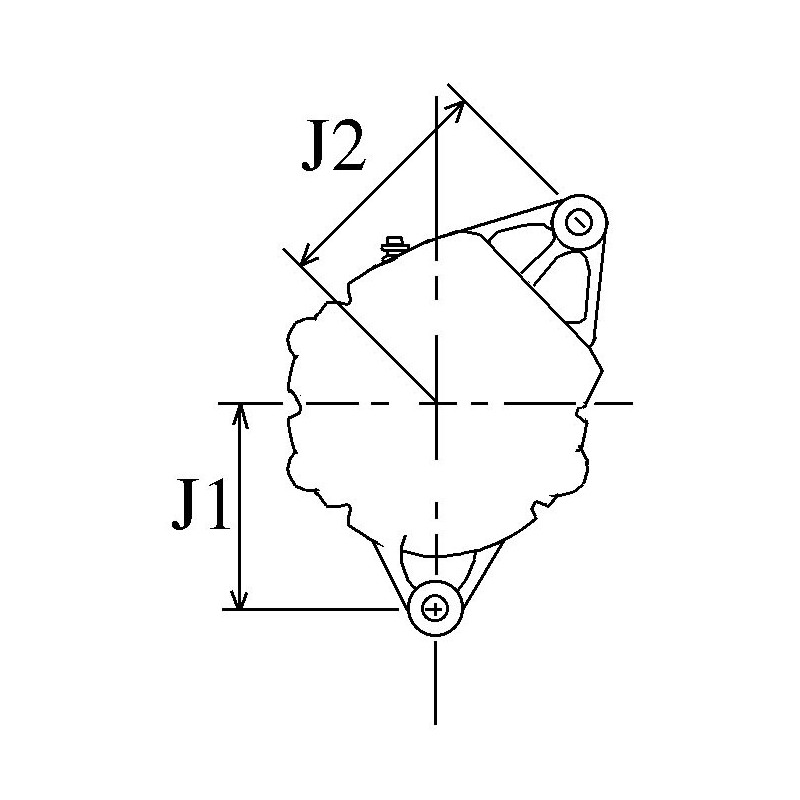

J = Radius 90.00

J = Radius 2 90.00

Position B + M8

Plug no. 1 PL_NA

Fan If

Pulley Serpentine Pulley

Tipo regulateur Ir

Info produit Bn

Tipo prise W 6.3

R = Total length mm 189.50

generic brand

= ISKRA AAK5501 / AAK5305 / 11.209.001 / 11.203.004

= MERCEDES-BENZ 0091540102 / 0091540202 / 0091545902 / 0101544602 / 0101545502 / 0101549902 / A0091540102 / A0091540202 / A0091545902 / A0101544602 / A0101545502 / A0101549902

                              NO CORE EXCHANGE NEEDED

                                               TWO YEARS WARRANTY
