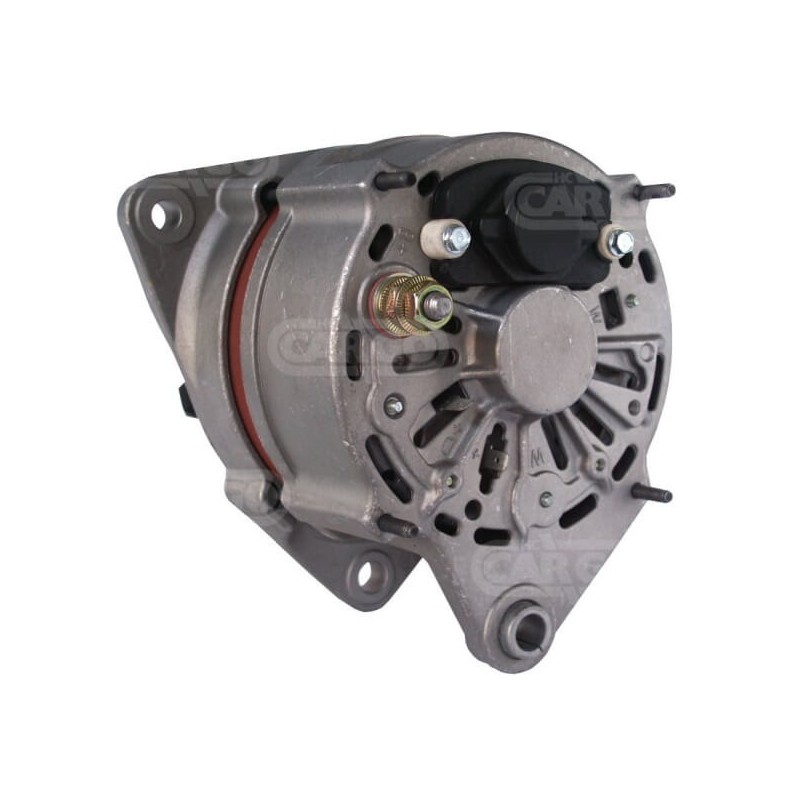

Alternator replacing 0120469028 / 0120469029 / 0120469847
Replacing | |
|---|---|
| 0120469848 | Bosch |
| 0120469893 | Bosch |
| 0120469936 | Bosch |
| 0120469937 | Bosch |
| 0120469940 | Bosch |
| 46406404 | Fiat |
| 7615310 | Fiat |
| 7638884 | Fiat |
| 7674683 | Fiat |
| 7674684 | Fiat |
| 7702650 | Fiat |
| 7702651 | Fiat |
| 7702652 | Fiat |
More info

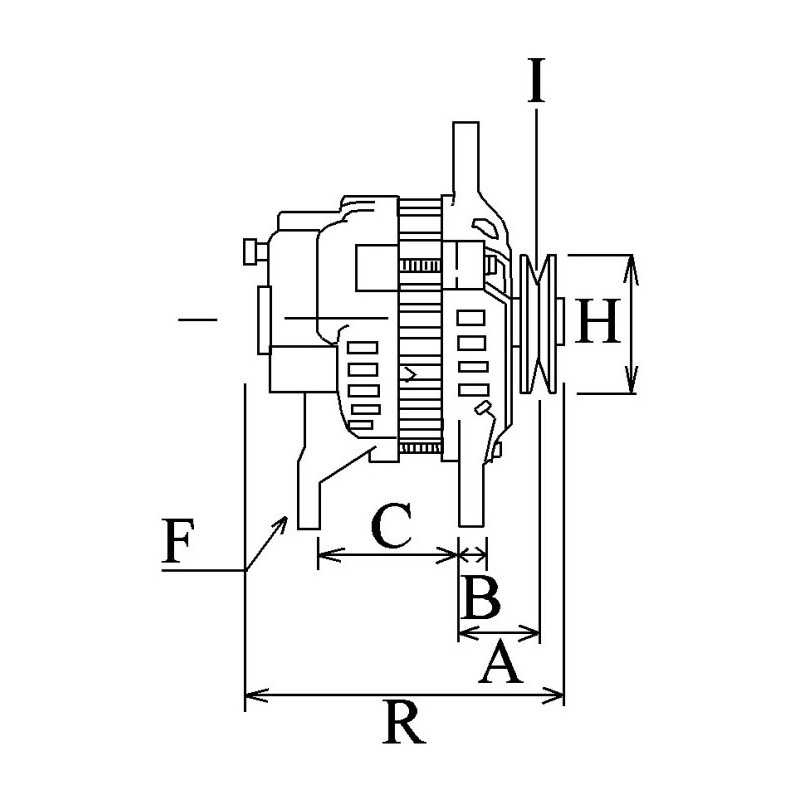

Physical information | ||
|---|---|---|
| A | Pulley dist. | 48.75 |
| B | Width/holder arm | 13.00 |
| C | Mount. bracket dist. | 82.00 |
| D | Bracket hole | 12.25 |
| E | Belt. adj. brackethole pos. | 10 |
| G | Belt. adj. bracket hole | 10.25 |
| H | Pulley dia. | 60.00 |
| I | Grooves/pulley | 5 |
| J | Radius | 93.50 |
| J | Radius 2 | 92.00 |
| K | B+ | M8 |
| K | Position/B+ in min. | 50 |
| N | Rotation | CW |
| O | Plug no. | PL_NA |
| R | Total length mm | 190.00 |
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 90 | |
generic brand
replacing
| 0120469028 | BOSCH |
| 0120469029 | BOSCH |
| 0120469847 | BOSCH |
| 0120469848 | BOSCH |
| 0120469893 | BOSCH |
| 0120469936 | BOSCH |
| 0120469937 | BOSCH |
| 0120469940 | BOSCH |
| 0986035720 | BOSCH |
| 112780 | CARGO |
| 20101561BN | REAL |
| 20101561RC | REAL |
| 2010165 | SANDO |
| 210212 | ERA |
| 28-2956 | ELSTOCK |
| 30712RI | KUHNER |
| 311267 | RHIAG |
| 4490 | CEVAM |
| 46406404 | FIAT |
| 505.020.085 | PSH |
| 6.3108.9 | IKA |
| 7615310 | FIAT |
| 7638884 | FIAT |
| 7674683 | FIAT |
| 7674684 | FIAT |
| 7702650 | FIAT |
| 7702651 | FIAT |
| 7774480 | FIAT |
| 7774481 | FIAT |
| 8EL730010-001 | HELLA |
| 944390357200 | MAGNETI MARELLI |
| A0478 | AS-PL |
| ALT10501 | WOODAUTO |
| ALT6790 | SIOM |
| ALTS210 | 3EFFE |
| ALTS210B | 3EFFE |
| CA712IR | HC PARTS |
| CAL10165 | CASCO |
| CAL10165AS | CASCO |
| CAL10165ES | CASCO |
| CAL10165GS | CASCO |
| CAL10165OS | CASCO |
| CAL10165RS | CASCO |
| CGB-82956 | AINDE |
| DRA5720 | DELCO |
| EAA-241340 | EAA |
| EAA-251584 | EAA |
| LRA01704 | LUCAS |
| LRA1704 | LUCAS |
| PRAS210 | 3EFFE |
| PRAS210B | 3EFFE |
| UD12216A | AS-PL |
| UNIT BOM 220-5369A | WAI / TRANSPO |
| 440859 | LOGISTIK |
