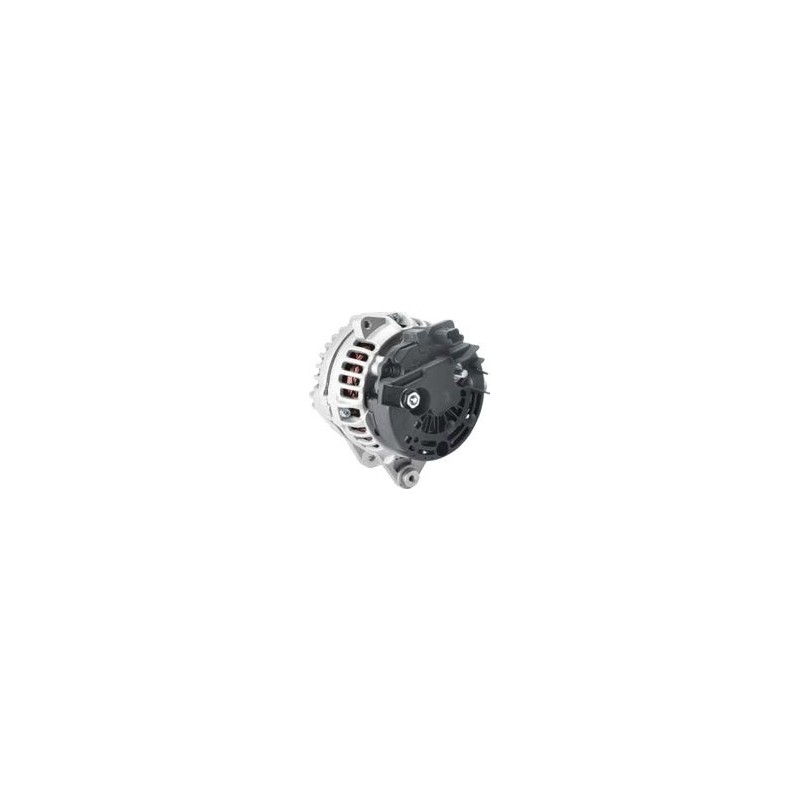

Alternator replacing BOSCH 0124325186 / 0124325139 / 0124325102

Information:

Voltage 14

Amp 90

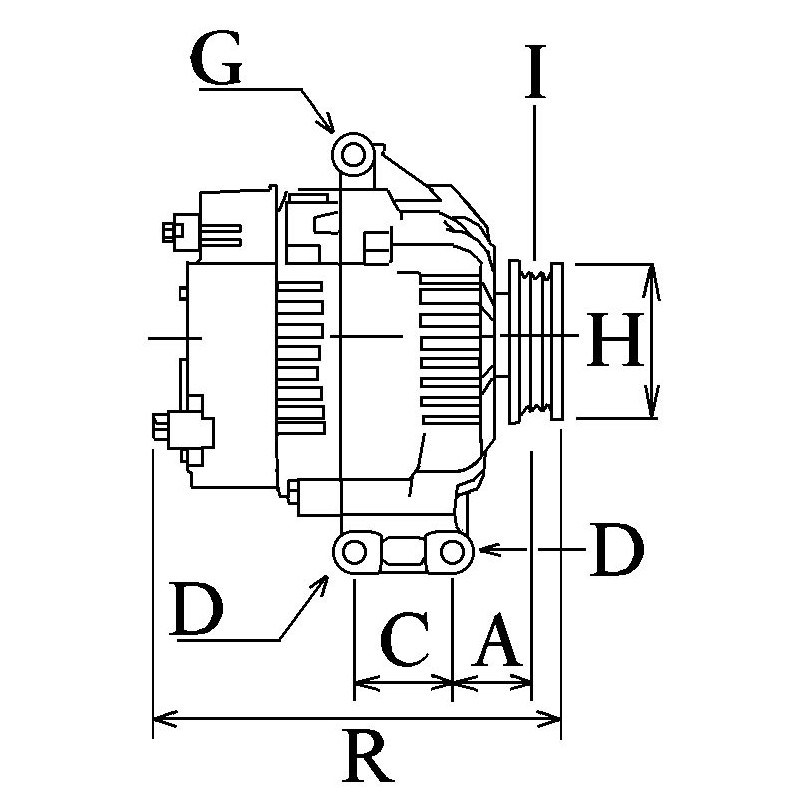

D = Bracket hole 8.70

G = Belt. adj. bracket hole 8.70

B = Width/holder arm 14.25

E = Belt. adj. brackethole pos. 45

C = Mount. bracket dist 61.00

H = Pulley dia. 57.00

A = Pulley dist. 32.00

Grooves/pulley 7

J = Radius 90.00

J = Radius 90.00

Position B + M8

Rotation Cr

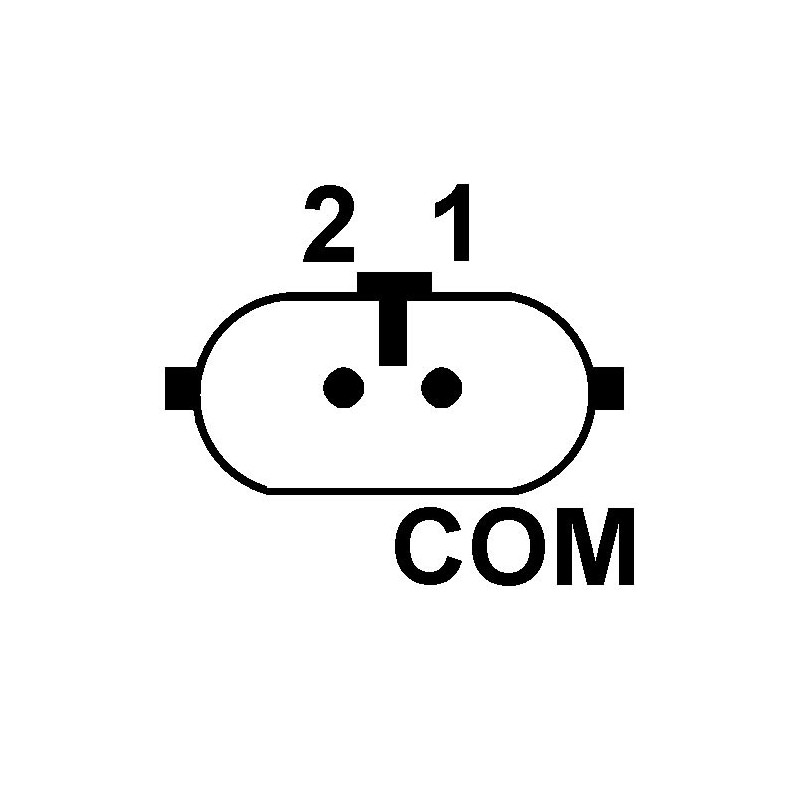

Plug no. 1 PL124

Fan If

Pulley Serpentine Pulley

R = Total length mm 182.00

Communication BSS

generic brand

replacing
