w116715

04801304AC Jeep
0986CN0689 Bosch ruil
0986UR0689 Bosch ruil
0986UR6292 Bosch ruil
11294 Lester
277593 Elstock
40171 CEVAM
4210000540 Denso
4210000541 Denso
4210000542 Denso
4210000543 Denso
4210000560 Denso
4727865AB Jeep
4801304AC Chrysler
Read more
€179.90 Tax included
Price may vary according to your VAT rate
Last items in stock Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Features

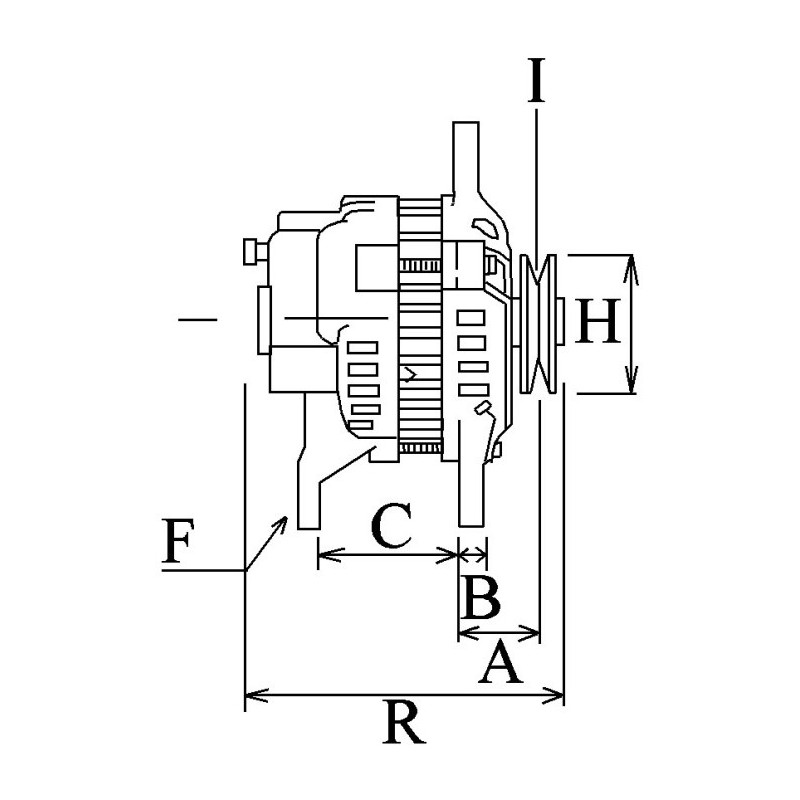

Physical information
A Pulley dist. 32.00
B Width/holder arm 14.00
C Mount. bracket dist. 60.00
D Bracket hole 11.50
E Belt. adj. brackethole pos. 45
G Belt. adj. bracket hole 11.00
H Pulley dia. 52.50
I Grooves/pulley 6
J Radius 83.00
J Radius 2 95.50
K B+ M8
K Position/B+ in min. 49
R Total length mm 157.00
Catalogue information
Pulley SP
Fan IF
Electrical information
Voltage 14
Amp 160

generic brand

replacing

04801304AC Jeep
0986CN0689 Bosch ruil
0986UR0689 Bosch ruil
0986UR6292 Bosch ruil
11294 Lester
277593 Elstock
40171 CEVAM
4210000540 Denso
4210000541 Denso
4210000542 Denso
4210000543 Denso
4210000560 Denso
4727865AB Jeep
4801304AC Chrysler
5340631402 DRI
835952140 PSH
AL6462X Bosch (USA)
AL6477N Bosch (USA)
AL6477X Bosch (USA)
ALT6442sa Electrolog
DRA1543 Remy
LRA03983 Lucas

Fits :

Brand Model Typ Year
CHRYSLER Grand Voyager 3.8 [EGL] 01/10/07
JEEP Wrangler 3.8 [EGT] 04.2007-12.2011
JEEP Wrangler 3.8 [EGT] 01/04/07
JEEP Wrangler 3.8 RWD [EGT] 10.2007-09.2010
