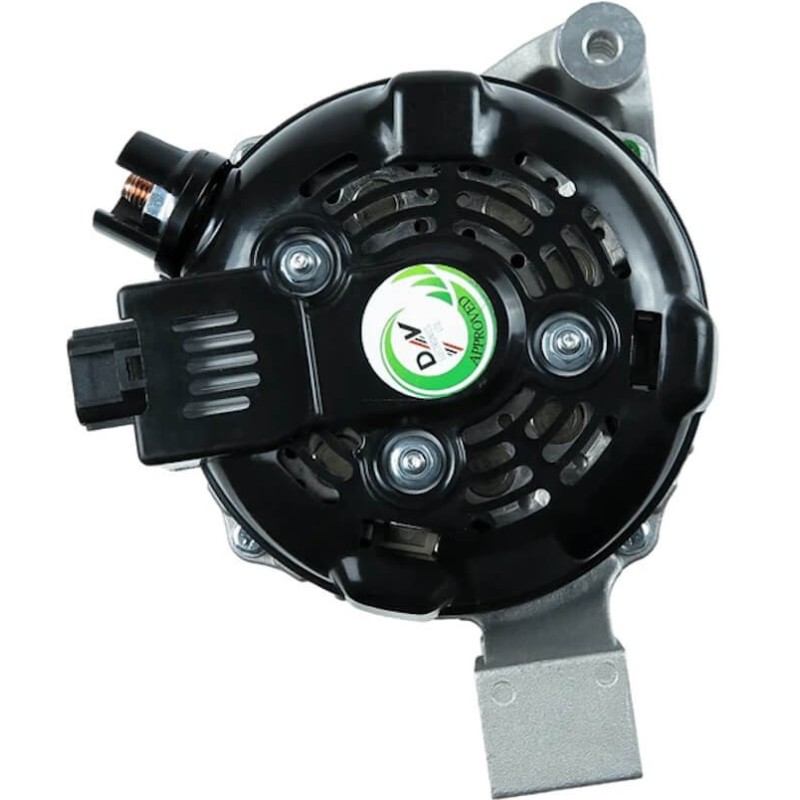

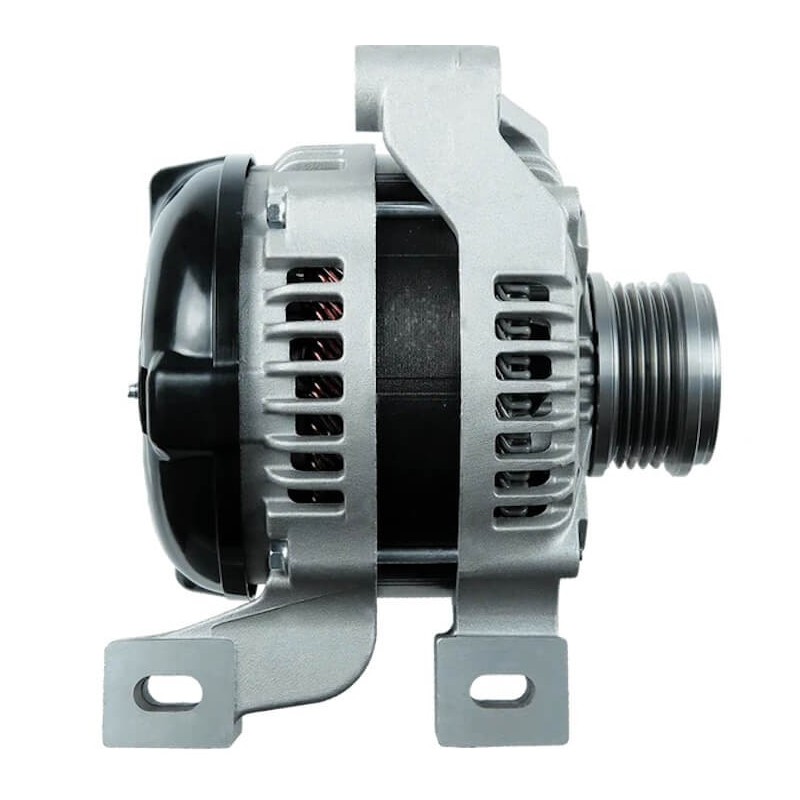

Alternator replacing 104210-4050 / 30667051A / 8602920 / 3M5T10300UA
| 2381621502 | DRI | |
| 286802 | Elstock | |
| 2905185 | PIC | |
| 30667051 | Volvo | |
| 30667051A | Volvo | |
| 3M5T103004A | Ford | |
| 3M5T10300UA | Ford | |
| 40183 | CEVAM | |
| 443155 | Valeo | |
| 815529150 | PSH | |
| 8602920 | Volvo |
More info
Electrical information | |
|---|---|
| Voltage | 14 |
| Amp | 150 |
Catalogue information | |
|---|---|
| Pulley | SP/FW |
| Fan | IF |
| Regulator type | IR |
| Vac. pump | No |
| Prod. info | BN |
Physical information | ||
|---|---|---|
| A | Pulley dist. | 34.00 |
| B | Width/holder arm | 33.00 |
| C | Mount. bracket dist. | 91.00 |
| D | Bracket hole | 17.5/8.20 |
| D | Bracket hole 2 | 17.00/8.50 |
| E | Belt. adj. brackethole pos. | 55 |
| G | Belt. adj. bracket hole | 8.00 |
| H | Pulley dia. | 55.00 |
| I | Grooves/pulley | 5 |
| J | Radius | 89.00 |
| J | Radius 2 | 88.80 |
| K | B+ | M8 |
| K | Position/B+ in min. | 50 |
| N | Rotation | CW |
| O | Plug no. 1 | pl184 |
| R | Total length mm | 172.00 |
| 0986UR0553 | Bosch ruil |
| 1042104050 | Denso |
| 1042104050OR | +line |
| 1042104050SEL | +line |
| 1042104051 | Denso |
| 11093 | Lester |
| 12090635 | EuroTec |
| 2381621502 | DRI |
| 286802 | Elstock |
| 2905185 | PIC |
| 30667051 | Volvo |
| 30667051A | Volvo |
| 3M5T103004A | Ford |
| 3M5T10300UA | Ford |
| 40183 | CEVAM |
| 443155 | Valeo |
| 815529150 | PSH |
| 8602920 | Volvo |
| 86029200 | Volvo |
| 9090700 | Friesen |
| 9090700F | Friesen |
| 931426 | EDR |
| AL9356X | Bosch (USA) |
| DRA1426 | Remy |
| LRA03662 | Lucas |
Generic brand
Fits
| Brand | Model | Typ | Year | |
| VOLVO | V50 2.4 | [B5244S4] | 01.2004-12.2004 | |
| VOLVO | V50 2.4 | [B5244S5] | 01.2004-12.2004 | |
| VOLVO | V50 2.4 T5 | [B5254T3] | 01.2004-12.2004 | |
| VOLVO | V50 2.4 T5 | [B5254T7] | 01.2004-12.2004 | |
| VOLVO | V50 2.5 T5 AWD | [B5254T3] | 01.2004-12.2004 | |
| VOLVO | V50 2.5 T5 AWD | [B5254T7] | 01.2004-12.2004 | |
| VOLVO | S40 2.4 | [B5244S4] | 01.2004-12.2004 | |
| VOLVO | S40 2.4 | [B5244S5] | 01.2004-12.2004 | |
| VOLVO | S40 2.4 T5 | [B5254T3] | 01.2004-12.2004 | |
| VOLVO | S40 2.4 T5 | [B5254T7] | 01.2004-12.2004 |
