W116442

Alternator replacing 104210-6406 / DAN1127 / DRA1479 / LRA03710 / 0986CR6230 / 0986UR6230
BMW 12317605061 / 12317605061 / 760506105

NO CORE EXCHANGE NEEDED

                   TWO YEARS WARRANTY

Read more
€269.90 Tax included
Price may vary according to your VAT rate
Last items in stock Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Features

Electrical information
Voltage 14
Amp 210
Physical information
A Pulley dist. 50.00
B Width/holder arm 27.50
C Mount. bracket dist. 75.00
D Bracket hole 10.20
E Belt. adj. brackethole pos. 46
G Belt. adj. bracket hole 12.30
H Pulley dia. 49.00
I Grooves/pulley 6
J Radius 93.00
J Radius 2 93.00
K B+ M8
K Position/B+ in min. 3
N Rotation CW

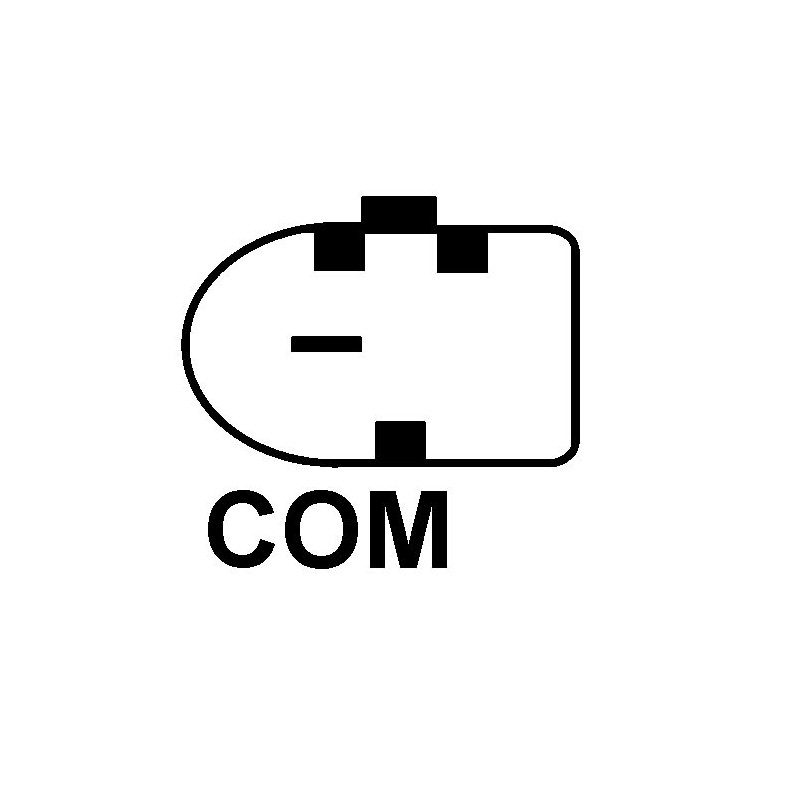

O Plug no. 1 PL125
R Total length mm 180.00
Replacing
104210-6400 Denso
104210-6401 Denso
104210-6402 Denso
104210-6403 Denso
104210-6404 Denso
104210-6405 Denso
104210-6406 Denso
12317605061 BMW
12317605479 BMW
7605061 BMW

generic brand

replacing

0210801150 Denso
0986CR6230 Bosch ruil
0986UR6230 Bosch ruil
1042106400 Denso
1042106400OR +line
1042106401 Denso
1042106402 Denso
1042106403 Denso
1042106404 Denso
1042106405 Denso
1042106406 Denso
12090626 EuroTec
12317605061 BMW
12317605479 BMW
215594210 PSH
4446 CEVAM
7605061 Fiat
760506105 BMW
7605479 Fiat
931479 EDR
AL9449X Bosch (USA)
DAN1127 Denso
DRA1479 Remy
LRA03710 Lucas
S760506102

for

Brand Model Typ Year
BMW X3 2.0 sDrive 20 i (F25)[N20B20A] 04.2014-08.2017
BMW 220 2.0 i (F22)[N20B20B] 01/10/13
BMW 428 2.0 i xDrive (F82)[N26B20A] 01/07/13
BMW Z4 2.0 sDrive 28 i (E89)[N20B20A] 09.2011-08.2016
BMW 428 2.0 i xDrive (F83)N20B20A] 01/01/14
BMW 220 2.0 i (F87)[N20B20B] 01/10/13
BMW 428 2.0 i xDrive (F83)[N20B20A] 01/01/14
BMW 428 2.0 i xDrive Gran Coupe (F36)[N20B20A] 01/03/14
BMW 428 2.0 i xDrive Gran Coupe (F36)[N26B20A] 01/03/14
BMW X3 2.0 xDrive 20 i (F25)[N20B20A] 10.2011-08.2017
BMW X3 2.0 xDrive 28 i (F25)[N20B20A] 04.2012-08.2017
BMW 328 2.0 i (F30)[N20B20A] 04.2011-10.2018
BMW 420 2.0 i (F32)[N20B20A] 01/11/13
BMW 328 2.0 i (F30)[N26B20A] 04.2011-10.2018
BMW 420 2.0 i (F32)[N20B20B] 01/11/13
BMW 328 2.0 i (F31)[N20B20A] 07.2012-06.2015
BMW 420 2.0 i (F82)[N20B20A] 01/11/13
BMW 328 2.0 i (F80)[N20B20A] 04.2011-10.2018
BMW 420 2.0 i (F82)[N20B20B] 01/11/13
BMW 328 2.0 i (F80)[N26B20A] 04.2011-10.2018
BMW 420 2.0 i Gran Coupe (F36)[N20B20B] 01/03/14
BMW 420 2.0 i xDrive (F32)[N20B20A] 01/11/13
BMW 328 2.0 i Gran Turismo (F34)[N20B20A] 08.2012-02.2015
BMW 420 2.0 i xDrive (F32)[N20B20B] 01/11/13
BMW 328 2.0 i Gran Turismo (F34)[N26B20A] 08.2012-02.2015
BMW 420 2.0 i xDrive (F82)[N20B20A] 01/11/13
BMW 320 2.0 i (F30)[N20B20A] 03.2012-10.2018
BMW 420 2.0 i xDrive (F82)[N20B20B] 01/11/13
BMW 320 2.0 i (F30)[N20B20D] 03.2012-10.2018
BMW 320 2.0 i (F31)[N20B20B] 11.2012-06.2015
BMW 328 2.0 i xDrive (F30)[N20B20A] 07.2012-08.2016
BMW 328 2.0 i xDrive (F30)[N26B20A] 07.2012-08.2016
BMW 320 2.0 i (F80)[N20B20A] 03.2012-10.2018
BMW 320 2.0 i (F80)[N20B20D] 03.2012-10.2018
BMW 328 2.0 i xDrive (F31)[N20B20A] 03.2013-06.2016
BMW 328 2.0 i xDrive (F34)[N26B20A] 07.2012-08.2016
BMW 320 2.0 i Gran Turismo (F34)[N20B20A] 03.2013-06.2016
BMW 328 2.0 i xDrive (F80)[N20B20A] 07.2012-08.2016
BMW 320 2.0 i Gran Turismo (F34)[N20B20B] 03.2013-06.2016
BMW 328 2.0 i xDrive (F80)[N26B20A] 07.2012-08.2016
BMW X1 2.0 sDrive 20 i (E84)[N20B20A] 09.2011-06.2015
BMW 328 2.0 i xDrive Gran Turismo (F34)[N20B20A] 03.2013-07.2016
BMW 328 2.0 i xDrive Gran Turismo (F34)[N26B20A] 03.2013-07.2016
BMW X4 2.0 xDrive 20 i (F26)[N20B20A] 04.2014-03.2018
BMW X4 2.0 xDrive 28 i (F26)[N20B20A] 04.2014-03.2018
BMW 320 2.0 i xDrive (F30)[N20B20A] 07.2012-10.2018
BMW 320 2.0 i xDrive (F30)[N20B20B] 07.2012-10.2018
BMW 528 2.0 i (F10)[N20B20A] 09.2011-10.2016
BMW 320 2.0 i xDrive (F31)[N20B20B] 03.2013-06.2015
BMW 520 2.0 i (F10)[N20B20A] 09.2011-10.2016
BMW 528 2.0 i (F11)[N20B20A] 09.2011-02.2017
BMW X1 2.0 xDrive 20 i (E84)[N20B20A] 09.2011-06.2015
BMW 320 2.0 i xDrive (F80)[N20B20A] 07.2012-10.2018
BMW 520 2.0 i (F10)[N20B20B] 09.2011-10.2016
BMW 528 2.0 i xDrive (F10)[N20B20A] 09.2011-10.2016
BMW 320 2.0 i xDrive (F80)[N20B20B] 07.2012-10.2018
BMW 520 2.0 i (F11)[N20B20A] 10.2010-02.2017
BMW 528 2.0 i xDrive (F11)[N20B20A] 09.2011-02.2017
BMW 320 2.0 i xDrive Gran Turismo (F34)[N20B20A] 11.2012-06.2016
BMW 428 2.0 i (F32)[N20B20A] 01/07/13
BMW X1 2.0 xDrive 28 i (E84)[N20B20A] 03.2011-06.2015
BMW 320 2.0 i xDrive Gran Turismo (F34)[N20B20B] 11.2012-06.2016
BMW 520 2.0 i (F11)[N20B20B] 10.2010-02.2017
BMW 428 2.0 i (F32)[N26B20A] 01/07/13
BMW 428 2.0 i (F33)[N20B20A] 01/10/13
BMW 428 2.0 i (F33)[N26B20A] 01/10/13
BMW 428 2.0 i (F82)[N20B20A] 01/07/13
BMW 428 2.0 i (F82)[N26B20A] 01/07/13
BMW 428 2.0 i (F83)[N20B20A] 01/10/13
BMW 428 2.0 i (F83)[N26B20A] 01/10/13
BMW 428 2.0 i Gran Coupe (F36)[N20B20A] 01/03/14
BMW 428 2.0 i Gran Coupe (F36)[N26B20A] 01/03/14
BMW 125 2.0 i (F20)[N20B20A] 03.2012-11.2017
BMW 428 2.0 i xDrive (F32)[N20B20A] 01/07/13
BMW 428 2.0 i xDrive (F32)[N26B20A] 01/07/13
BMW 428 2.0 i xDrive (F33)N20B20A] 01/01/14
BMW 125 2.0 i (F21)[N20B20A] 01/12/11
BMW 428 2.0 i xDrive (F33)[N20B20A] 01/01/14
BMW Z4 2.0 sDrive 18 i (E89)[N20B20A] 04.2013-08.2016
BMW 125 2.0 i (F21)[N20B20A] 01/03/13
BMW 428 2.0 i xDrive (F82)[N20B20A] 01/07/13
BMW Z4 2.0 sDrive 20 i (E89)[N20B20A] 09.2011-08.2016
