Alternator replacing 104210-6120 / 8X2310300CB / 8X2310300CB Jaguar 150A
012098 | Da Silva |
|---|---|
1042106120 | Denso |
1042106120RJ | RNL |
1042106120SEL | +line |
1042106121 | Denso |
1042106122 | Denso |
1042106123 | Denso |
1042110710 | Denso |
10444093 | Alanko |
115720 | Cargo |
12090622 | EuroTec |
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 150 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 14.00 |
| G | Belt. adj. bracket hole | 10.50 |
| B | Width/holder arm | 50.00 |
| E | Belt. adj. brackethole pos. | 9 |
| C | Mount. bracket dist | 47.50 |
| H | Pulley dia. | 57.50 |
| A | Pulley dist. | 22.00 |
| i | Grooves/pulley | 6 |
| j | Radius | 84.00 |
| j | Radius 2 | 86.00 |
| k | Position B + | M8 |
| n | Rotation | CW |

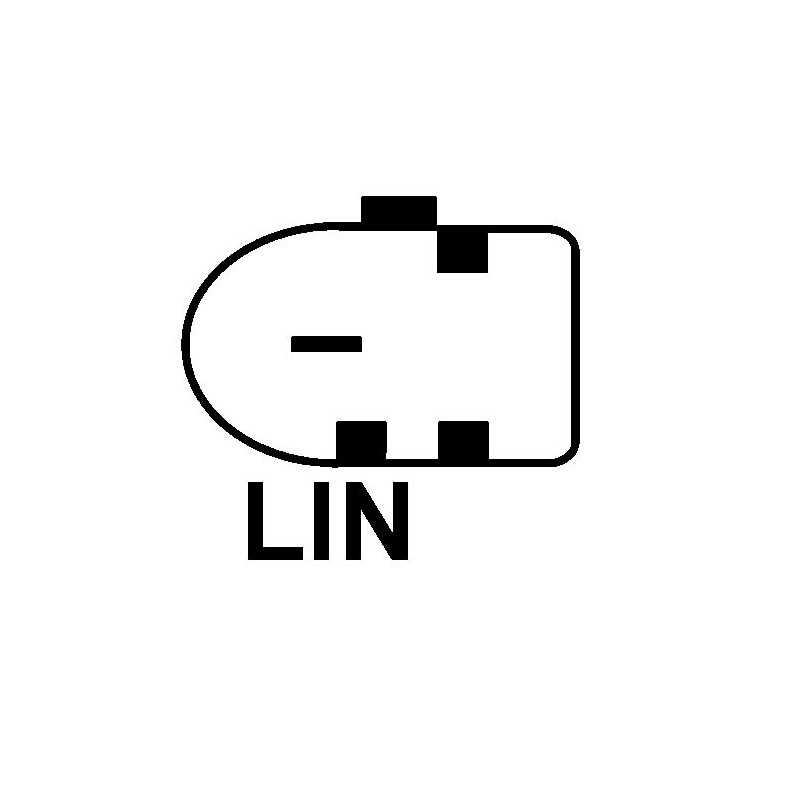

| o | Plug no. 1 | PL174 |
generic brand
replacing
Mounted on :
| Brand | Model | Typ | Year |
| JAGUAR | XF 3.0 D | [306DT] | 03.2009-04.2015 |
| JAGUAR | XF 3.0 D | [AJV6D] | 03.2009-04.2015 |
| JAGUAR | XF Sportbrake 2.2 D | [224DT] | 09.2012-04.2014 |
| JAGUAR | XF Sportbrake 3.0 D | [306DT] | 01/09/12 |
| JAGUAR | XF Sportbrake 3.0 D | [AJV6D] | 01/09/12 |
| JAGUAR | XJ 3.0 D | [AJV6D] | 10.2009-12.2015 |
| JAGUAR | XF 2.2 D | [224DT] | 04.2011-04.2015 |
| JAGUAR | XF 2.2 D | [224DT] | 05.2011-04.2015 |
| JAGUAR | XF 2.2 D | [224DT] | 03.2012-04.2015 |
| JAGUAR | XF 2.7 D | [AJD] | 03.2008-04.2015 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
