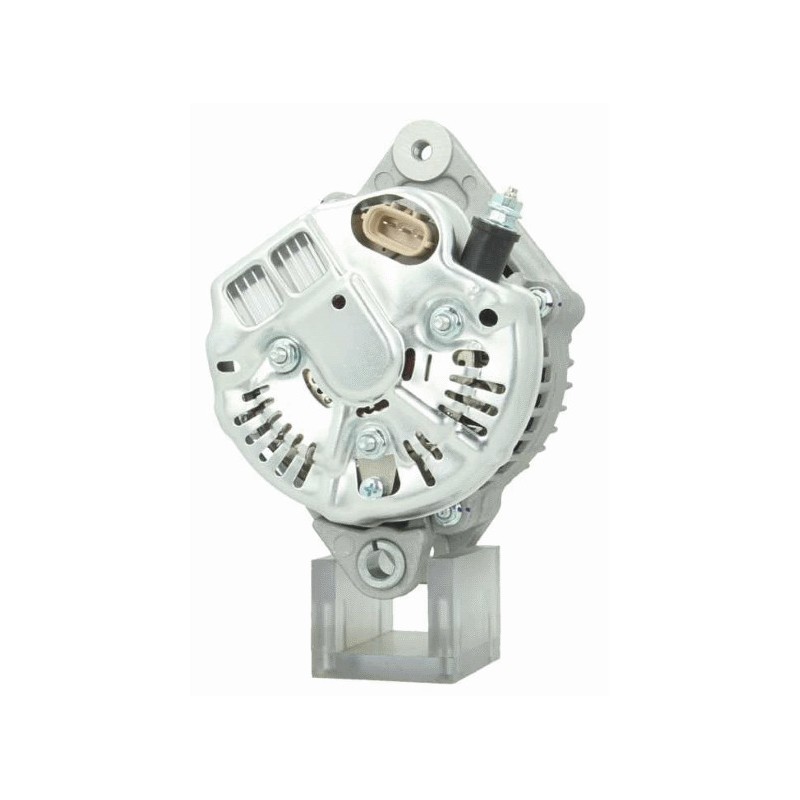

Alternator replacing 102211-5450 / DAN976 / 27060-97401
New alternator replacing
MAGNETI MARELLI 63377515 / MAN7515 / Electrolog ALT6201sa / DELCO REMY DRA0348 / LUCAS LRA02040 / Nipparts J5116029 / TWA TRA293
NO CORE EXCHANGE NEEDED
More info
Electrical information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 70 | |
Catalogue information | ||
|---|---|---|
| Pulley | SP | |
| Regulator type | IR | |
Physical information | ||
|---|---|---|
| A | Pulley dist. | 48.00 |
| B | Width/holder arm | 27.00 |
| C | Mount. bracket dist. | 39.50 |
| D | Bracket hole | 10.20 |
| E | Belt. adj. brackethole pos. | 60 |
| G | Belt. adj. bracket hole | M8 |
| H | Pulley dia. | 55.00 |
| I | Grooves/pulley | 4 |
| J | Radius | 74.00 |
| J | Radius 2 | 82.00 |
| K | B+ position | M6 |
| K | Position/B+ in min. | 7 |
| N | Rotation | CW |

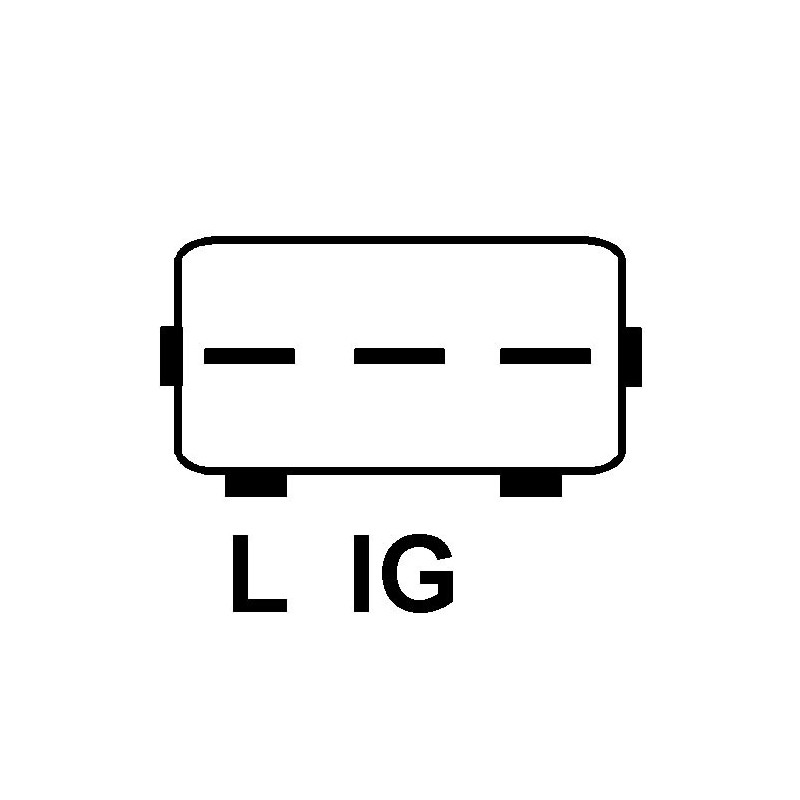

| O | Plug no. 1 | PL58 |
| R | Total length mm | 153.00 |
