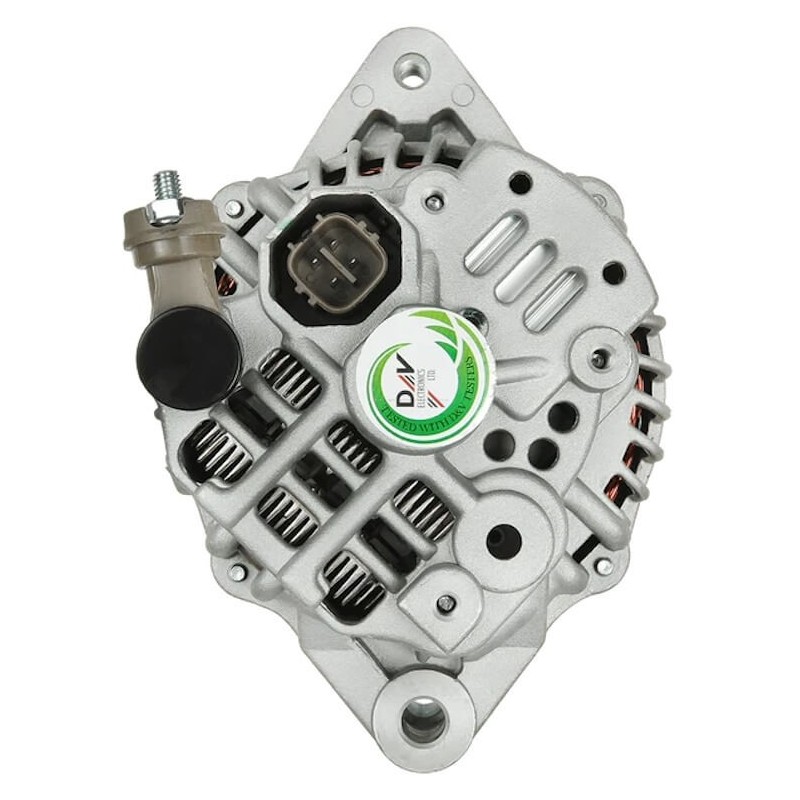

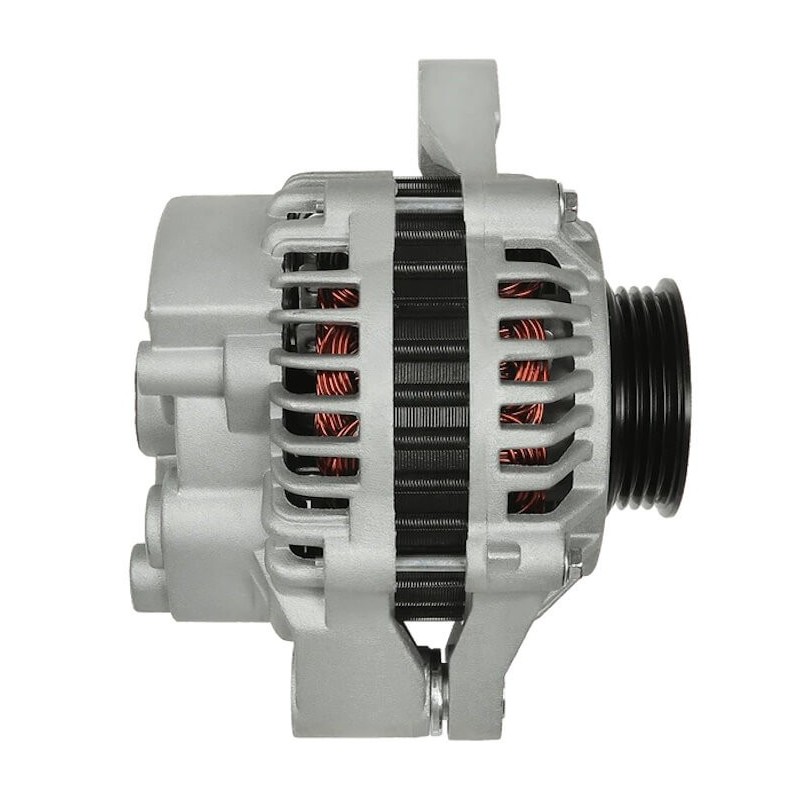

Alternator replacing A005TA0091 / A005TA0991 / A5TA0091 / A5TA5491 / AHGA24 / AHGA35
Alternator NEW replacing :
HONDA 06311-PEJ-505RM, 31100-P2E-A01, 31100-P2E-A01RM, 31100-P2E-A02, 31100-P2E-A02RM, 31100-PEJ-004, 31100-PEJ-004RM, AHGA24, AHGA25, AHGA35, AHGA44, MITSUBISHI A005TA0991, A005TA0991ZC, A005TA0992, A005TA4591, A005TA5491, A5TA0991, A5TA0991ZC, A5TA0992, A5TA4591, A5TA5491
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
| Voltage | 14 | |
| Amp. | 75 | |
| A | Pulley dist. | 90.25 |
| B | Width/holder arm | 59.50 |
| D | Bracket hole | 10.50 |
| E | Belt. adj. brackethole pos. | 60 |
| G | Belt. adj. bracket hole | M8 |
| H | Pulley dia. | 62.50 |
| I | Grooves/pulley | 4 |
| J | Radius | 80.00 |
| J | Radius 2 | 85.00 |
| K | Position B + | M6 |
| K | B+ position en min. | 51 |
| N | Rotation | Cr |

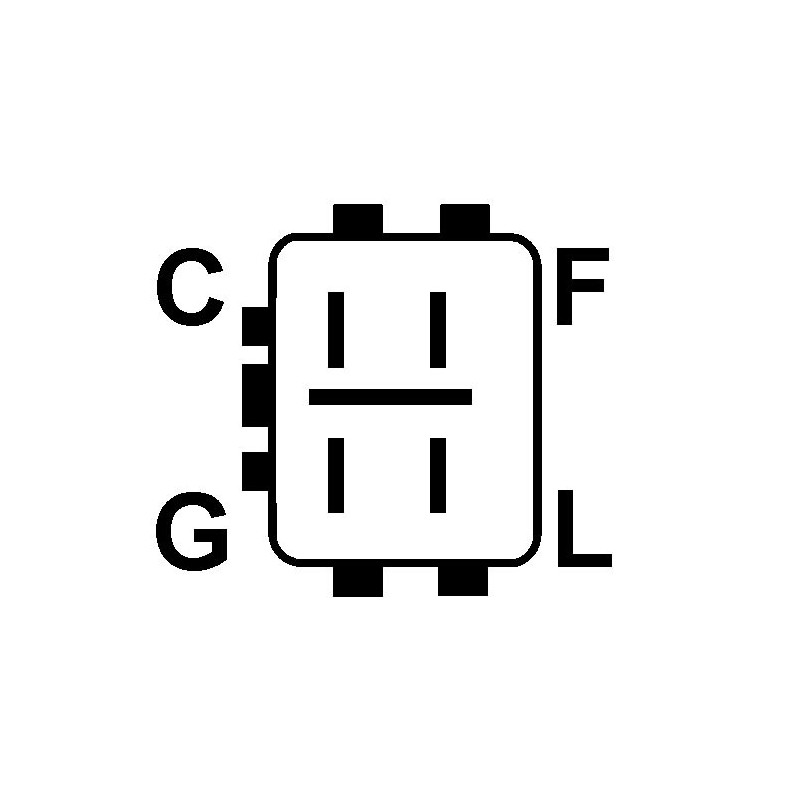

| O | Plug n° 1 | PL65 |
| R | Total length mm | 156.00 |
generic brand
replacing
| 0986AN0714 | Bosch ruil |
| 0986CN0830 | Bosch ruil |
| 0986CR0830 | Bosch ruil |
| 0986UN2003 | Bosch ruil |
| 0986UR0830 | Bosch ruil |
| 1012119230 | Denso |
| 1012119231 | Denso |
| 1012119232 | Denso |
| 1012119233 | Denso |
| 113035 | Cargo |
| 125519070 | PSH |
| 1CJU23 | Honda |
| 2104134 | Denso |
| 283765 | Elstock |
| 31100P2AA02 | Honda |
| 31100P2C0030 | Honda |
| 31100P2EA01 | Honda |
| 31100P2EA02 | Honda |
| 31100P2FA02 | Honda |
| 31100PEJ004 | Honda |
| 440102 | Valeo |
| 90273161 | Wilson |
| 90273241 | Wilson |
| A000TB4891 | Mitsubishi |
| A000TB4891B | Mitsubishi |
| A005TA0091 | Mitsubishi |
| A005TA0991 | Mitsubishi |
| A005TA0991ZC | Mitsubishi |
| A005TA0992 | Mitsubishi |
| A005TA4591 | Mitsubishi |
| A005TA4591ZC | Mitsubishi |
| A005TA4592 | Mitsubishi |
| A005TA5491 | Mitsubishi |
| A0TB4891 | Mitsubishi |
| A0TB4891B | Mitsubishi |
| A5TA0091 | Mitsubishi |
| A5TA0991 | Mitsubishi |
| A5TA0991ZC | Mitsubishi |
| A5TA0992 | Mitsubishi |
| A5TA4591 | Mitsubishi |
| A5TA4591ZC | Mitsubishi |
| A5TA4592 | Mitsubishi |
| A5tA5491 | Mitsubishi |
| AHA409 | ATK |
| AHGA24 | Honda |
| AHGA25 | Honda |
| AHGA35 | Honda |
| AHGA44 | Honda |
Mounted on :
| Civic | Civic | 1.5 | Unleaded | 1997 01 | 2001 02 | D15Z8 | 16V | 84 | 114 | Hayon | 1493 | 4 | MB3 | ||
| Civic | Civic | 1.5 | Unleaded | 1998 04 | 2001 02 | D15Z8 | 16V | 84 | 114 | Break | 1493 | 4 | |||
| Logo | Logo | 1.3 | Unleaded | 1999 03 | 2002 03 | D13B7 | i | 48 | 65 | Hayon | 1343 | 4 | Automatic Transmission |
