Alternator replacing 063341896010 / 63321658 / 63341658 / MAN1009 / A1601540301 / A1601540401 /
Alternator NEW replacing :
MAGNETI MARELLI 063341896010, 63321658, 63341658, MAN1009, MERCEDES-BENZ 160-154-03-01, 160-154-05-01, A1601540301, A1601540401, A1601540501, SMART 0002801V005, 0002801V006, 0003250V009, 0003250V010, 0003250V011, 2801V005000000, VALEO 437630
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 75 | |
Physical Information | ||
|---|---|---|

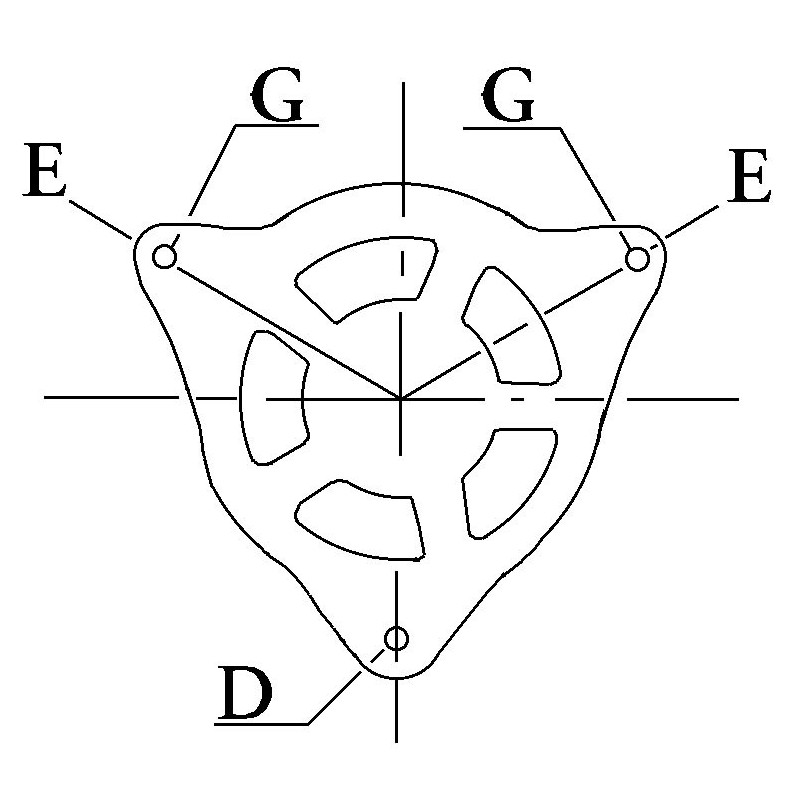

| D | Bracket hole | 10.30 |
| G | Belt. adj. bracket hole | 11.30 |

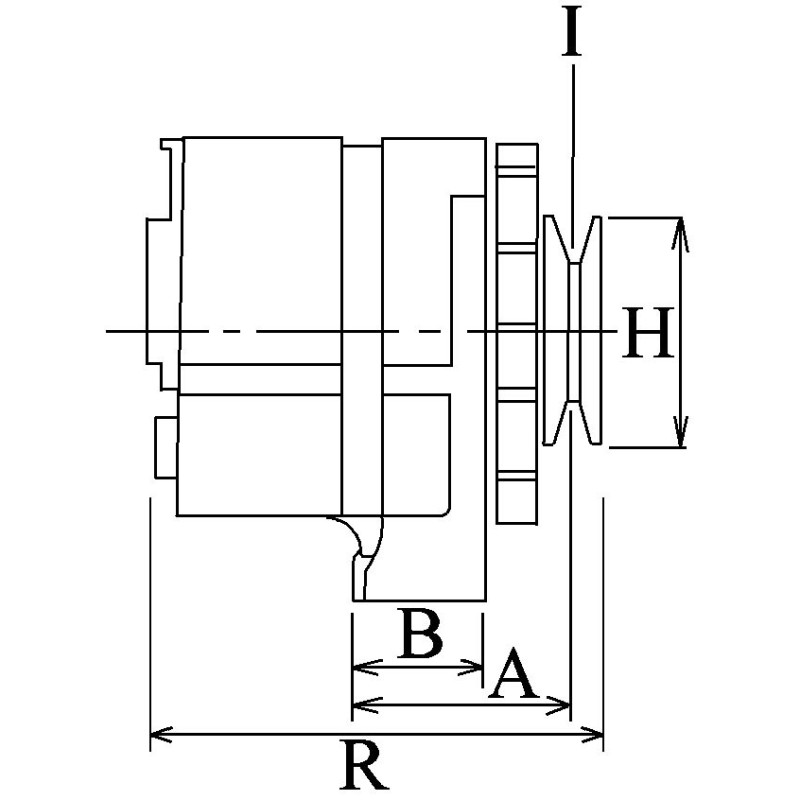

| B | Width/holder arm | 57.90 |
| E | Belt. adj. brackethole pos. | 4 |
| H | Pulley dia. | 58.00 |
| A | Pulley dist. | 90.00 |
| i | Grooves/pulley | 4 |

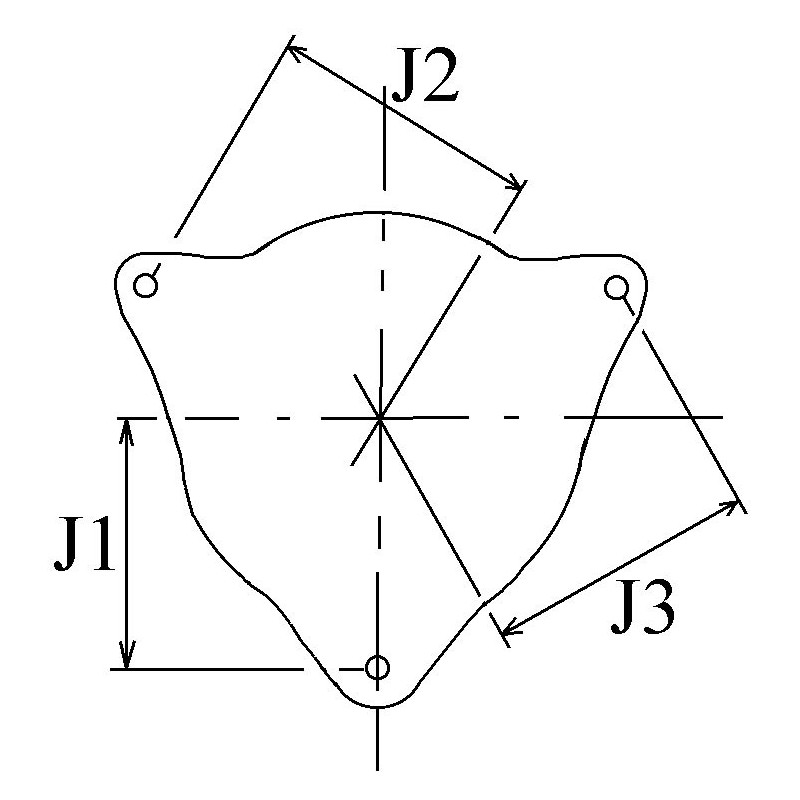

| j | Radius | 80.00 |
| j | Radius 2 | 80.00 |
| k | Position B + | M6 |
| n | Rotation | CW |

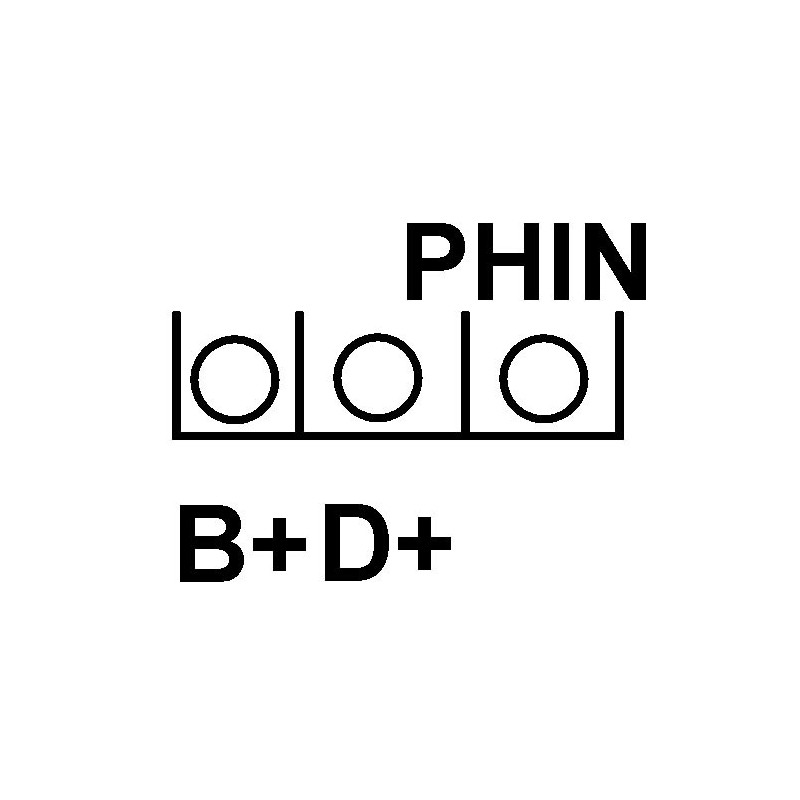

| o | Plug no. 1 | PL105 |
| R | Total length mm | 176.00 |
Replacing | |
|---|---|
| 0002801V005 | SMART |
| 0002801V006 | SMART |
| 0003250V009 | SMART |
| 0003250V010 | SMART |
| 0003250v011 | SMART |
| 1601540301 | MERCEDES BENZ |
| 1601540401 | MERCEDES BENZ |
| 1601540501 | MERCEDES BENZ |
| 1601540601 | MERCEDES BENZ |
| 63321658 | MAGNETI MARELLI |
| 63321702 | MAGNETI MARELLI |
| 63341658 | MAGNETI MARELLI |
| 63341702 | MAGNETI MARELLI |
| A1601540301 | MERCEDES BENZ |
| A1601540401 | MERCEDES BENZ |
| A1601540501 | MERCEDES BENZ |
| A1601540601 | MERCEDES BENZ |
| ca1734ir | HC-PARTS |
| Q0002801V005000000 | SMART |
| Q0002801V006000000 | SMART |
| Q0003250V009000000 | SMART |
| Q0003250V010000000 | SMART |
| Q0003250V011000000 | SMART |
| 437630 | VALEO |
Mounted on :
| Manufacturer | Model | Tipo | Year |
|---|---|---|---|
| SMART | Cabrio 0.6 | [M160.920] | 06.2002-01.2004 |
| SMART | Cabrio 0.7 | [M160.910] | 01.2003-01.2004 |
| SMART | City 0.6 | [M160.920] | 06.2002-01.2004 |
| SMART | City 0.7 | [M160.910] | 01.2003-01.2004 |
| SMART | Crossblafrom 0.6 | [M160.920] | 06.2002- |
| SMART | Fortwo 0.6 | [M160.910] | 01.2004-02.2007 |
| SMART | Fortwo 0.7 | [M160.910] | 01.2004- |
| SMART | Fortwo 0.7 | [M160.910] | 01.2004-01.2007 |
| SMART | Roadster 0.7 | [160.921] | 04.2003- |
| SMART | Roadster 0.7 | [160.922] | 04.2003- |
| SMART | Roadster 0.7 | [M160.921] | 06.2003- |
| SMART | Roadster 0.7 Brabus | [M160.923] | 12.2003- |
| SMART | SMART 0.6 | [M160.910] | 01.2001-01.2004 |
| SMART | SMART 0.6 | [M160.920] | 07.1998-01.2004 |
| SMART | SMART 0.6 | [M160.920] | 03.2000-01.2004 |
| SMART | SMART 0.6 | [M160.920] | 01.2001-01.2004 |
| SMART | SMART 0.6 | [M160E6ALB04] | 07.1998-01.2004 |
| SMART | SMART 0.6 | [M160E6ALB05] | 01.2001-01.2004 |
| SMART | SMART 0.6 | [M160E6ALBO3] | 03.2000-01.2004 |
