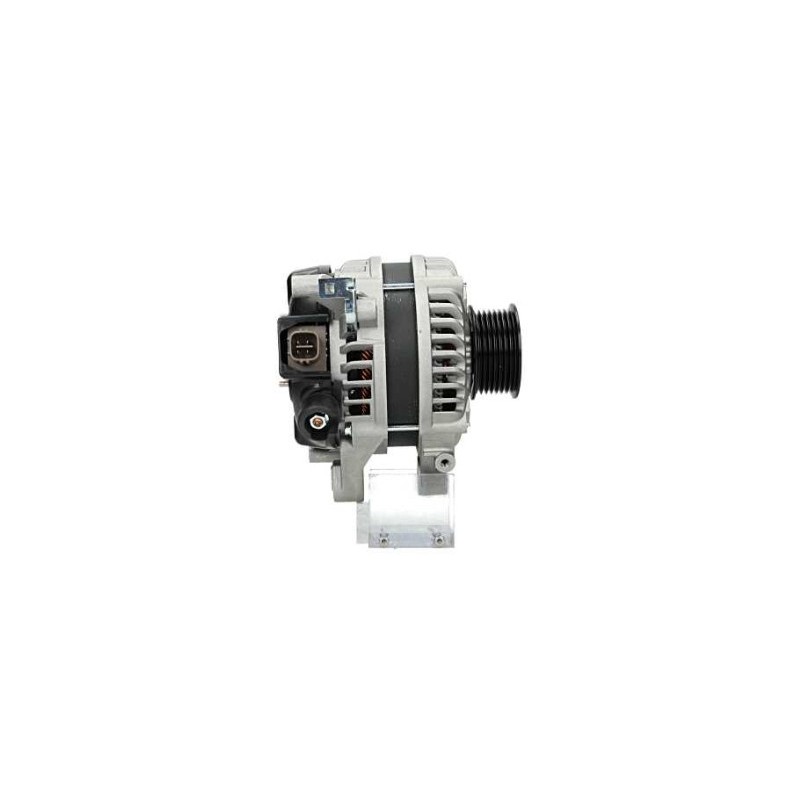

Alternator replacing DENSO 104210-5370 / HONDA 31100-RZP-G01
Alternator NEW replacing DENSO 104210-5370 / DAN1148 / HONDA 31100-RZP-G01
0986082410 / DRA0887 / LRA03491
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 105 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 9.00 |
| G | Belt. adj. bracket hole | 8.50 |
| B | Width/holder arm | 20.00 |
| E | Belt. adj. brackethole pos. | 13.00 |
| C | Mount. bracket dist | 38.00 |
| H | Pulley dia. | 60.00 |
| A | Pulley dist. | 45.00 |
| i | Grooves/pulley | 7 |
| j | Radius | 85.00 |
| j | Radius 2 | 86.50 |
| k | Position B + | M6 |
| n | Rotation | CW |

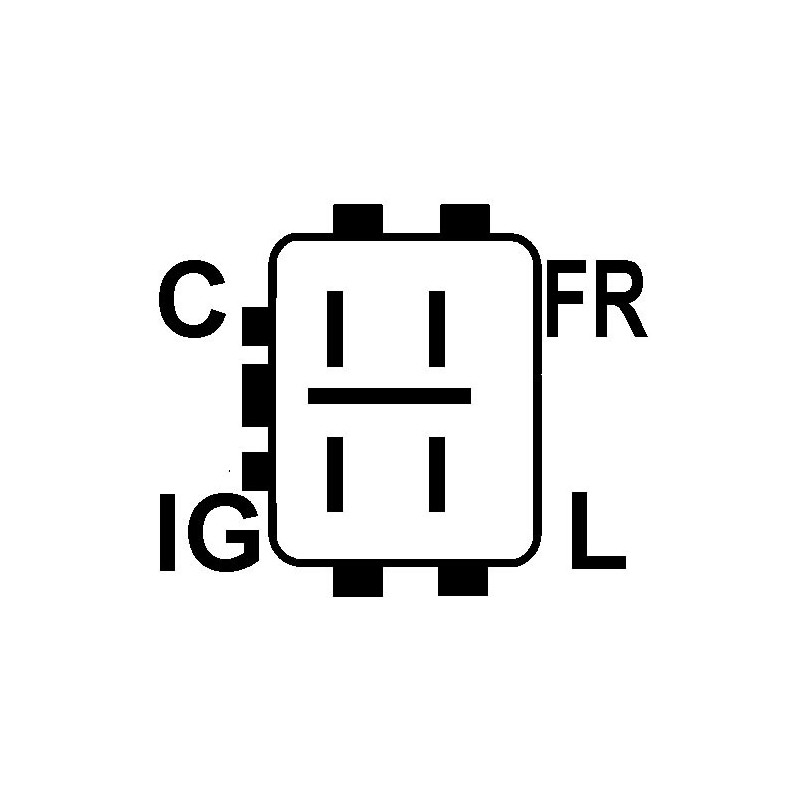

| o | Plug no. 1 | PL60 |
| R | Total length mm | 160.00 |
Replacing | |
|---|---|
| 104210-5370 | DENSO |
| 31100-RZP-G01 | HONDA |
| ca2078ir | HC-PARTS |
| CSF37 | HONDA |
| 0210801610 |
| 0986082410 |
| 1042105370 |
| 125556130 |
| 286601 |
| 31100RZPG01 |
| 930887 |
| ALT6238sa |
| CA2078IR |
| CSF37 |
| DAN1148 |
| DRA0887 |
| KTR251112260 |
| LRA03491 |
| TNA099 |
Generic brand
Mounted on : HONDA
HONDA
| Model | Model série | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Chassi type | Tipoe modèle | Engine in cm3 | Cylindres | Descrip- tion du type from |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Accord | Accord | 2.0 | Unleaded | 2008 07 | - | R20A3 | 115 | 156 | Break | 1997 | 4 | |||
| Accord | Accord | 2.0 | Unleaded | 2008 07 | - | R20A4 | i | 110 | 150 | 1997 | 4 | CU | ||
| Accord | Accord | 2.0 | Unleaded | 2008 07 | - | R20A3 | 115 | 156 | 1997 | 4 | ||||
| CR-V | CR-V | 2.0 | Unleaded | 2007 01 | - | R20A2 | i-VTEC | 110 | 150 | SUV | 1997 | 4 |
