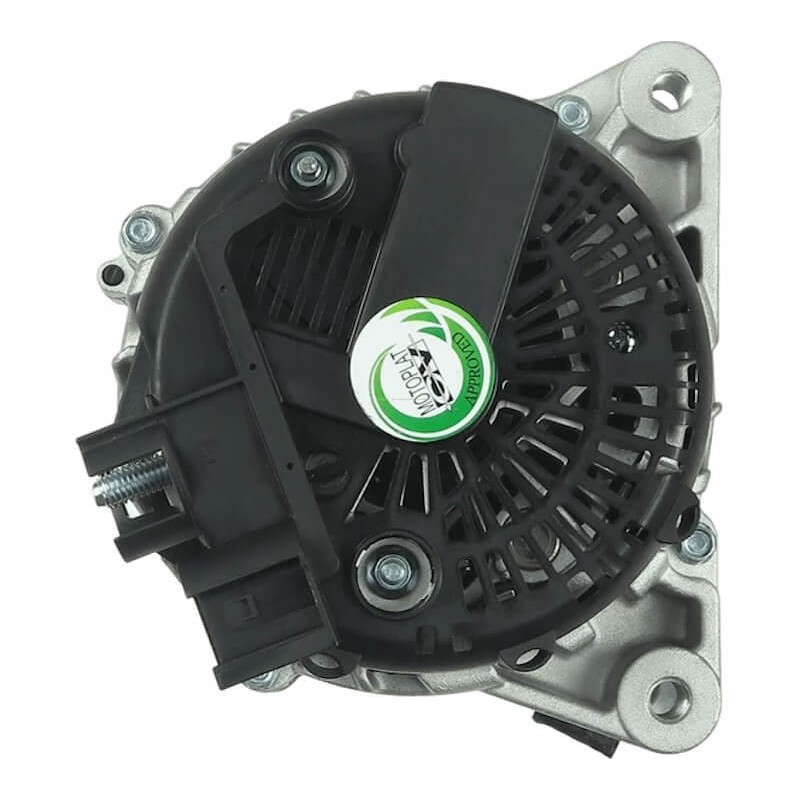

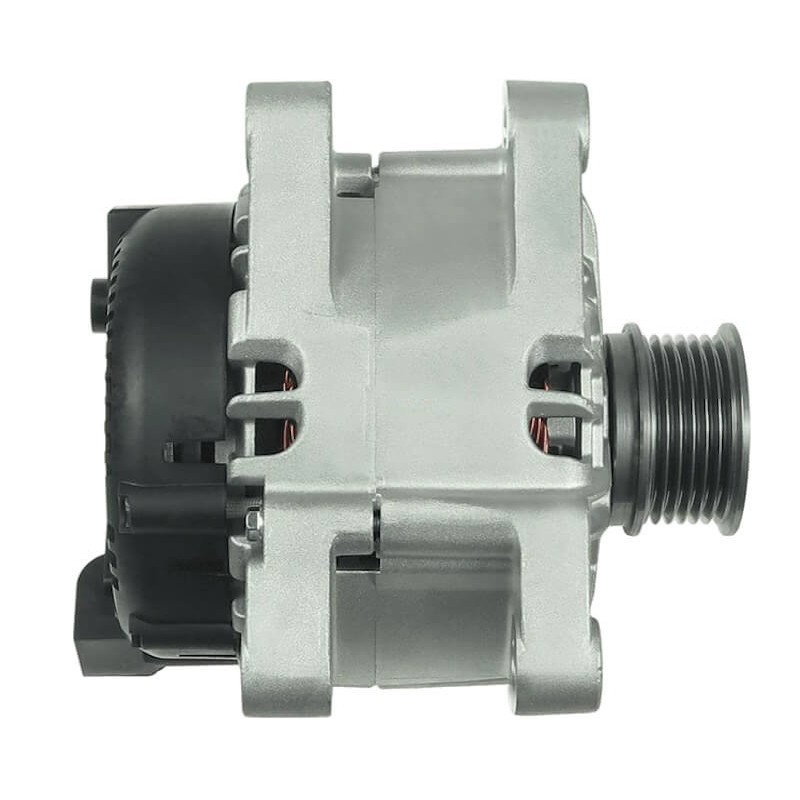

Alternator replacing TG12C079 / TG12C122 / TG12C127
Alternator replacing TG12C079 / TG12C122 / TG12C127
Alternator replacing TG12C079 / TG12C122 / TG12C127
Alternator replacing TG12C079 / TG12C122 / TG12C127
Alternator replacing TG12C079 / TG12C122 / TG12C127
Alternator replacing TG12C079 / TG12C122 / TG12C127
Alternator replacing TG12C079 / TG12C122 / TG12C127
Previous
Next
Alternator replacing TG12C079 / TG12C122 / TG12C127
Alternator replacing TG12C079 / TG12C122 / TG12C127
Alternator replacing TG12C079 / TG12C122 / TG12C127
Alternator replacing TG12C079 / TG12C122 / TG12C127
Alternator replacing TG12C079 / TG12C122 / TG12C127
Alternator replacing TG12C079 / TG12C122 / TG12C127
Alternator replacing TG12C079 / TG12C122 / TG12C127

Alternator replacing TG12C079 / TG12C122 / TG12C127

W115459

063377595010 Magneti Marelli
0986083260 Bosch ruil
115459 Cargo
14201326 AES
14201451 AES
1685791 Ford
1704768 Ford
1889305 Ford
1904972 Ford
2051880 Ford
2251619 Valeo
2606436 Valeo
2606436A Valeo
2612518 Valeo
2612672A Valeo

Read more
€199.90 Tax included
Price may vary according to your VAT rate
Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Features

Information:

Electrical Information
Voltage 14
Amp 120
Insulated return Non
Physical Information
D Bracket hole 11,50
G Belt. adj. bracket hole 11,50
B Width/holder arm 21,00
E Belt. adj. brackethole pos. 47
C Mount. bracket dist 45,00
H Pulley dia. 53,50
A Pulley dist. 43,00
i Grooves/pulley 6
j Radius 90,00
j Radius 2 90,00
k Position B + M8
n Rotation CW

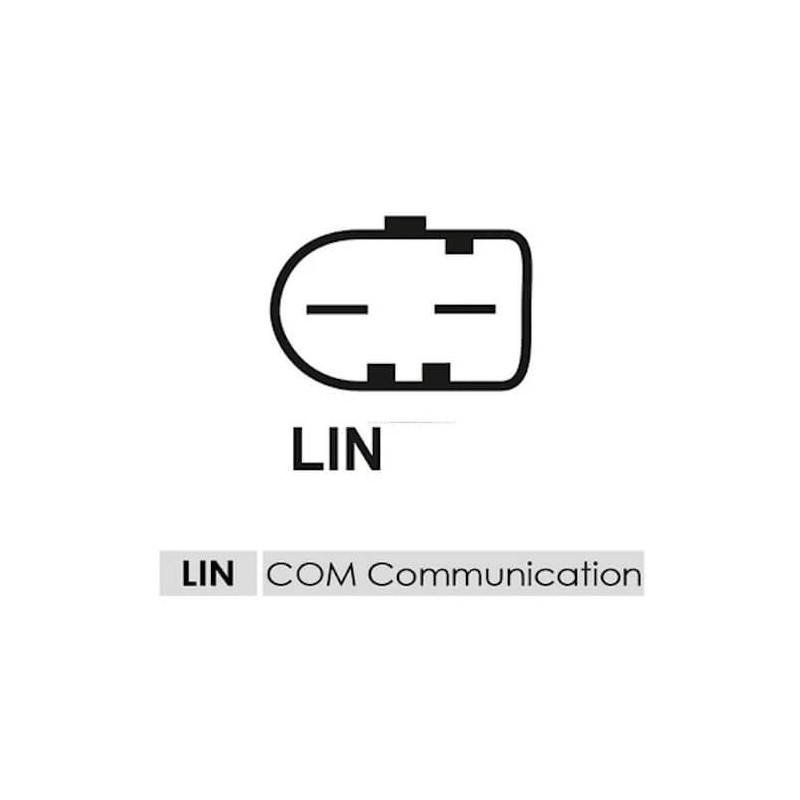

o Plug no. 1 PL137
D Trou from fixation support 2 10-1,5
G Belt. adj. bracket hole 2 2 10-1,5
R Total length mm 186,00
Un fil from branchement: (auto-excitation) Non
Replacing
1685791 FORD
1704768 FORD
2606436A VALEO
AV6N10300DB FORD
av6n10300dc FORD
TG12C079 VALEO
TG12C122 VALEO
TG12C127 VALEO
TG12C145 VALEO

generic brand

replacing

115459 CARGO
1704768 FORD
20179284OE REAL
20213N WAI / TRANSPO
210876 ERA
2251619 VALEO
28-6543 ELSTOCK
30659389 VOLVO
31285658 VOLVO
36001502 VOLVO
36001971 VOLVO
439910 VALEO
4862 CEVAM
553558RIV KUHNER
57326 EAI
595.584.120 PSH
9215449 POWERMAX
A3259 AS-PL
AEK3431 AUTOELECTRO
ALT14453 WOODAUTO
ALTF016 3EFFE
AV6N-10300-DA FORD
AV6N-10300-DB FORD
AV6N-10300-DC FORD
CAL15482 CASCO
CAL15482AS CASCO
CAL15482ES CASCO
CAL15482GS CASCO
CAL15482OS CASCO
CAL15482RS CASCO
DRA0986 DELCO
EAA-254728 EAA
LRA03431 LUCAS
LRA3431 LUCAS
RNLTG12C122 RNL
TG12C079 VALEO
TG12C122 VALEO
TG12C127 VALEO
UD90041A AS-PL
209459 ERA
PRAF016 3EFFE
440575 VALEO
2612672A VALEO
2606436A VALEO
2015482.1 SANDO
89215449 POWERMAX
595.584.120.505 PSH
CGB-86543 AINDE
ALT00613 ELECTROLOG
442276 LOGISTIK
A12VA0105AS SIDAT
A12VA0105A2 SIDAT
A12VA0105 SIDAT
5515137 MEAT & DORIA
1904972 OPEL
1685791 FORD
1757296 FORD
1889286 FORD
1889305 FORD
2051880 FORD
30659701 VOLVO
AV6N-10300-DD FORD
AV6N10300DD FORD
ET76-10300-AA FORD
ET7610300AA FORD
REAV6N-10300-DC FORD

                   Fits

Brand Model Typ Year
FORD C-Max 1.6 TDCi [T3DB] 01/01/10
FORD Fiesta 1.6 TDCi [TZJA] 01/01/10
FORD Transit Connect 1.6 TDCi [T1GA] 01/01/13
FORD Tourneo Courier 1.6 TDCi [T3CA] 01/01/14
FORD Fiesta 1.6 TDCi [TZJA] 01/01/12
FORD Fiesta 1.5 TDCi [UGJC] 01/01/12
FORD Transit Connect 1.6 TDCi [TZG.] 01/01/13
FORD Fiesta 1.6 TDCi [TZJB] 01/01/10
FORD Tourneo Courier 1.6 TDCi [T3CB] 01/01/14
FORD Transit Connect 1.6 TDCi [UBGA] 01/01/13
FORD Grand C-Max 1.5 TDCi [XWDA] 01/01/15
FORD Grand C-Max 1.5 TDCi [XWDB] 01/01/15
FORD Fiesta 1.6 TDCi [TZJB] 01/01/12
FORD Tourneo Connect 1.6 TDCi [T1GA] 01/01/13
FORD Grand C-Max 1.5 TDCi [XXDA] 01/01/15
FORD Focus 1.6 TDCi [NGDA] 01/01/11
FORD Grand C-Max 1.5 TDCi [XXDC] 01/01/15
FORD Fiesta 1.6 TDCi [UBJA] 01/01/12
FORD Tourneo Connect 1.6 TDCi [TZG.] 01/01/13
FORD Focus 1.6 TDCi [T.DA] 01/01/11
FORD Grand C-Max 1.6 TDCi [T1DA] 01/01/10
FORD Tourneo Connect 1.6 TDCi [UBGA 01/01/13
FORD Focus 1.6 TDCi [T.DB] 01/01/11
FORD Grand C-Max 1.6 TDCi [T1DB] 01/01/10
FORD C-Max 1.5 TDCi [AEDA] 01/01/15
FORD C-Max 1.5 TDCi [XWDA] 01/01/15
FORD C-Max 1.5 TDCi [XWDB] 01/01/15
FORD C-Max 1.5 TDCi [XXDA] 01/01/15
FORD C-Max 1.5 TDCi [XXDC] 01/01/15
FORD Grand C-Max 2.0 TDCi [TXDB] 01/01/11
FORD Focus 2.0 TDCi [TXDB] 01/01/11
FORD Grand C-Max 2.0 TDCi [TYDA] 01/01/11
FORD Focus 2.0 TDCi [TYDA] 01/01/11
FORD Grand C-Max 2.0 TDCi [UFDB] 01/01/11
FORD Grand C-Max 2.0 TDCi [UKDB] 01/01/11
FORD Focus 2.0 TDCi [UFDB] 01/01/11
FORD Focus 2.0 TDCi [UKDB] 01/01/11
FORD Transit Courier 1.5 TDCi 01/01/14
FORD C-Max 2.0 TDCi [TXDB] 01/01/10
FORD Fiesta 1.6 TDCi [HHJC] 01/01/12
FORD B-Max 1.5 TDCi [UGJC] 01/01/12
FORD C-Max 2.0 TDCi [TYDA] 01/01/10
FORD EcoSport 1.5 TDCi [UGJE] 01/01/13
FORD EcoSport 1.5 TDCi [XVJD] 01/01/13
FORD B-Max 1.5 TDCi [XVJA] 01/01/12
FORD C-Max 2.0 TDCi [UFDB] 01/01/10
FORD Focus 1.5 TDCi [XWD.] 01/01/14
FORD B-Max 1.5 TDCi [XVJC] 01/01/12
FORD C-Max 2.0 TDCi [UKDB] 01/01/10
FORD Fiesta 1.6 TDCi [HHJD] 01/01/12
FORD Transit Courier 1.6 TDCi [TZGA] 01/01/14
FORD Transit Courier 1.6 TDCi [TZGB] 01/01/14
FORD B-Max 1.6 TDCi [T3JB] 01/01/12
FORD Focus 1.5 TDCi [XXD.] 01/01/14
FORD Fiesta 1.6 TDCi [HHJE] 01/01/12
FORD Fiesta 1.6 TDCi [HHJF] 01/01/12
FORD Fiesta 1.6 TDCi [T3JA] 01/01/10
FORD C-Max 1.6 TDCi [T3DA] 01/01/10
FORD Fiesta 1.6 TDCi [T3JA] 01/01/12
VOLVO S40 1.6 D2 [D4162T] 01.2011-12.2012
VOLVO C30 1.6 D2 [D4162T] 01.2011-12.2013
VOLVO V50 1.6 D2 [D4162T] 01.2011-12.2012
