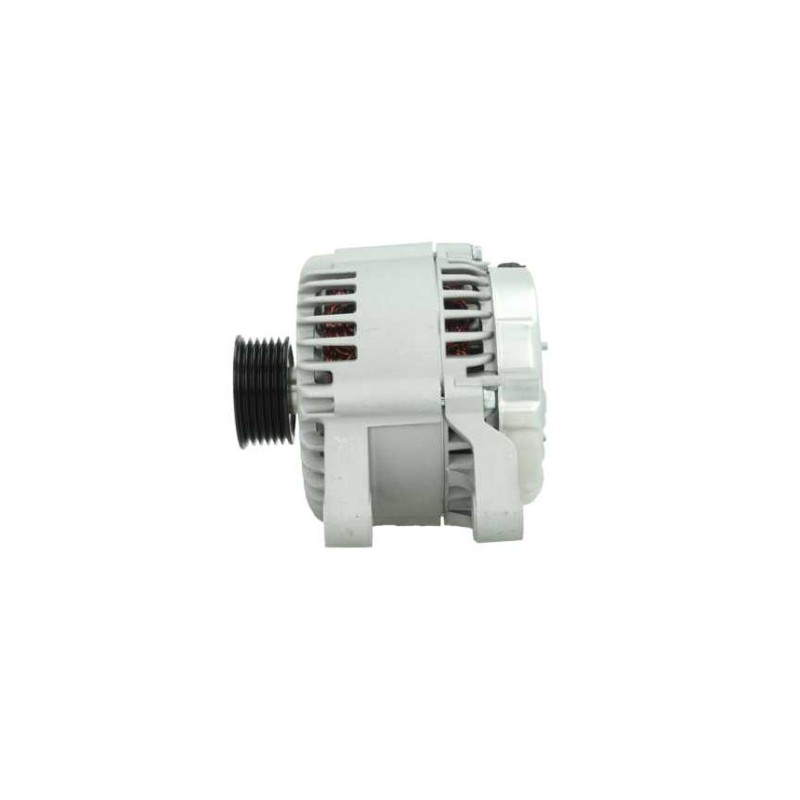

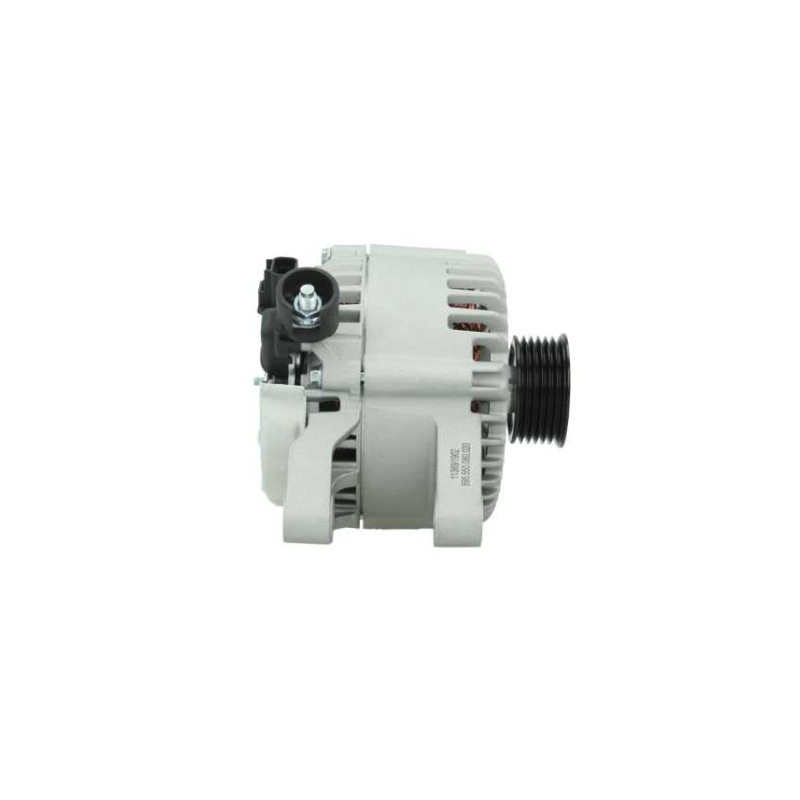

Alternator NEW replacing :
FORD 1140135 / 1464756 / 1464788 / 1477856 / 1477859 / 2s6t10300aa / 2S6T10300AB / 3S6T10300AA
VISTEON 2015001034
DRA4247 / F042A0H174 / LRA02338 / LRA02562 / 738187001
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
Information :
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 80 | |
| Insulated return | Non | |
Generic Brand
Physical Information | ||
|---|---|---|

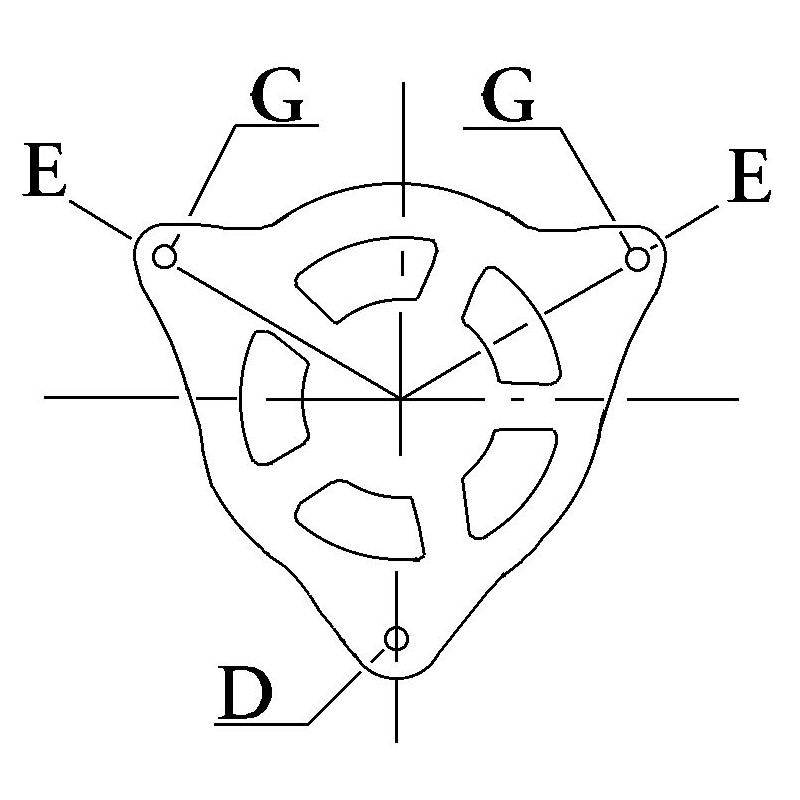

| D | Bracket hole | 10.50 |
| G | Belt. adj. bracket hole | 10.50 |
| B | Width/holder arm | 21.50 |
| E | Belt. adj. brackethole pos. | 12 |
| C | Mount. bracket dist | 45.80 |
| H | Pulley dia. | 54.00 |
| A | Pulley dist. | 42.50 |
| i | Grooves/pulley | 6 |
| j | Radius | 90.00 |
| j | Radius 2 | 90.00 |
| k | Position B + | M8 |
| n | Rotation | CW |

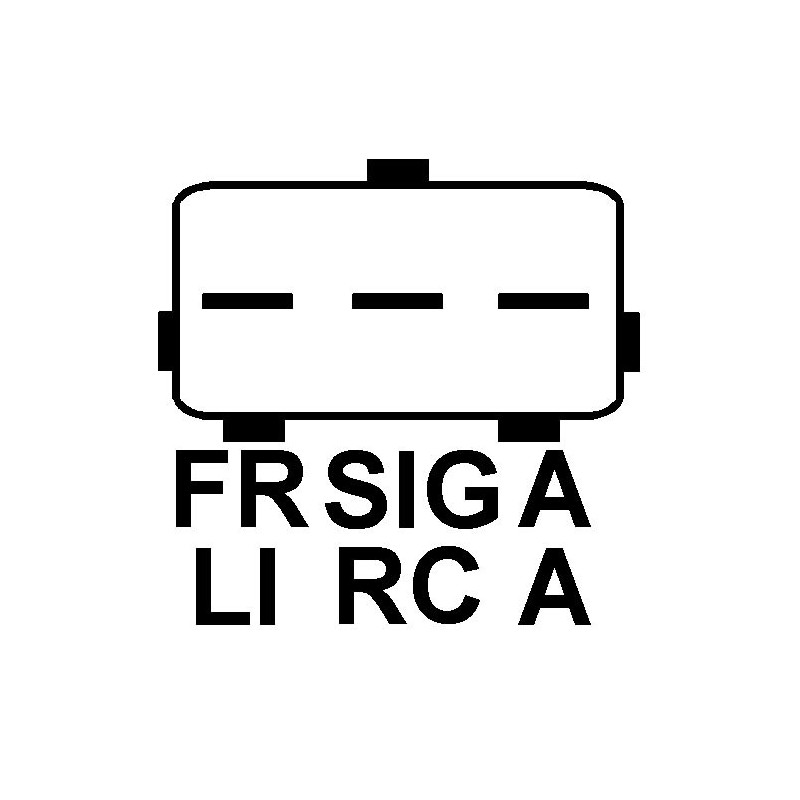

| o | Plug no. 1 | PL57 |
| R | Total length mm | 159.25 |
| Un fil from branchement: (auto-excitation) | Non | |
Replacing | |
|---|---|
| 1140135 | FORD |
| 1464756 | FORD |
| 1464788 | FORD |
| 1477856 | FORD |
| 1477859 | FORD |
| 1545138 | FORD |
| 20-150-01002 | VISTEON |
| 2s6t10300aa | FORD |
| 2S6T10300AB | FORD |
| 2S6T10300AC | FORD |
| 2S6T-AA | FORD |
| 3S6T10300AA | FORD |
| 3S6T10300AB | FORD |
| 3S6T10300AC | FORD |
| 3S6T10300AD | FORD |
| 3S6TAA | FORD |
| 3S6T-AC | FORD |
| Y401-18-300 | MAZDA |
generic brand
Mounted on FORD :
| Fiesta | Fiesta | 1.4 | Diesel | 2001 11 | 2008 06 | F6JA | TDCi | 50 | 68 | Hayon | 1399 | 4 | JH_, JD_ | |
| Fiesta | Fiesta | 1.4 | Diesel | 2001 11 | 2008 06 | F6JB | TDCi | 50 | 68 | Hayon | 1399 | 4 | JH_, JD_ | |
| Fiesta | Fiesta | 1.4 | Diesel | 2003 10 | - | F6JB | TDCi | 50 | 68 | Boîte/Trucksnette | 1399 | 4 | ||
| Fiesta | Fiesta | 1.4 | Diesel | 2003 10 | - | F6JA | TDCi | 50 | 68 | Boîte/Trucksnette | 1399 | 4 | ||
| Fusion | Fusion | 1.4 | Diesel | 2002 08 | - | F6JA | TDCi | 50 | 68 | Break | 1399 | 4 | ||
| Fusion | Fusion | 1.4 | Diesel | 2002 08 | - | F6JB | TDCi | 50 | 68 | Break | 1399 | 4 |
| Brand | Model | Tipo | Year |
| MAZDA | 2 1.4 CD | [F6JA] | after 04/2003 |
| MAZDA | 2 1.4 CD | [F6JA] | 04.2003-06.2007 |
| MAZDA | 2 1.4 CD | [F6JB] | 04.2003-06.2007 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
The reference number of your defective part is essential to determine the right replacement part. Each brand has its own nomenclature for authenticating its spare parts.
The part number can be numeric or alphanumeric, and can be found on your part.
Once you've found the part number, enter it in the search bar at the top center of our site.
The result will be the replacement part matching your part number.
