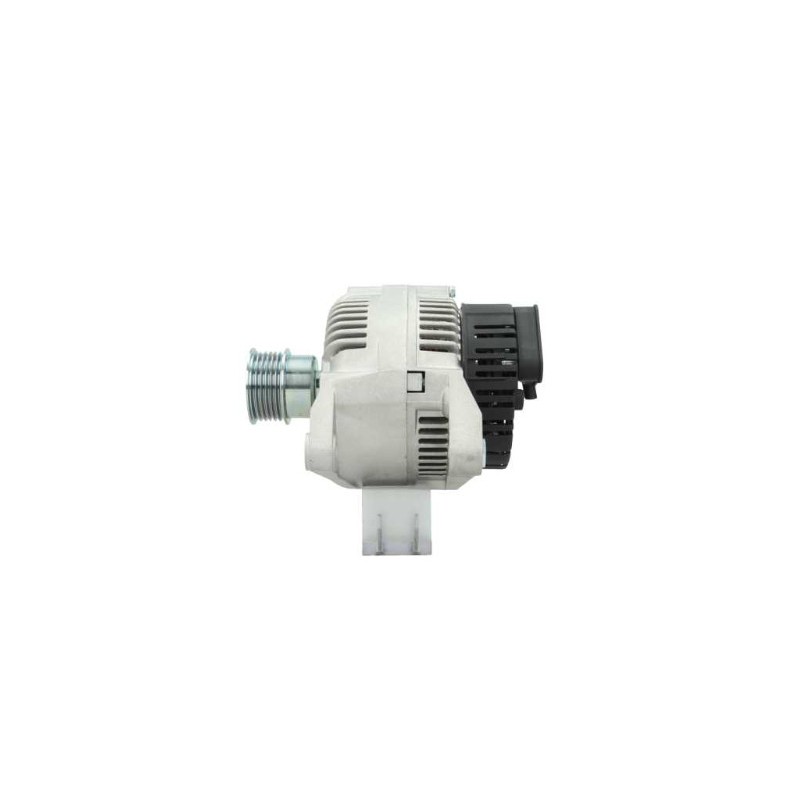

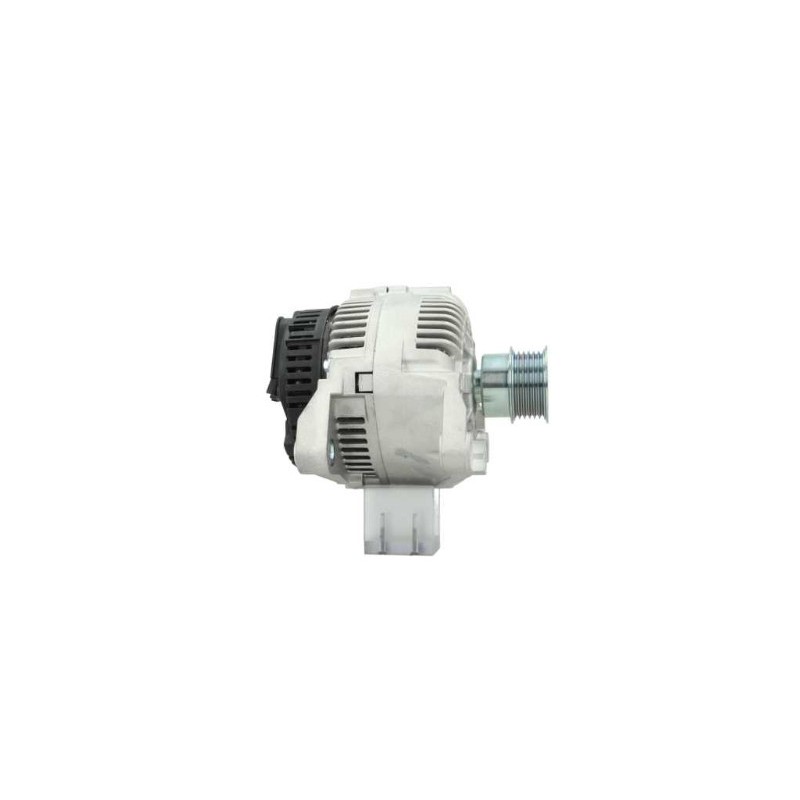

Alternator VALEO 2541697 / 2541697B / A13VI78
Alternator NEW brand VALEO 2541697 / 2541697B / A13VI78
= BMW 12311247288 / 12311247310 / 1247288
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Electrical Information | ||
|---|---|---|
| Voltage | 14 | |
| Amp | 90 | |
Physical Information | ||
|---|---|---|
| D | Bracket hole | 10.50 |
| G | Belt. adj. bracket hole | 10.50 |
| B | Width/holder arm | 19.65 |
| E | Belt. adj. brackethole pos. | 10 |
| C | Mount. bracket dist | 73.50 |
| H | Pulley dia. | 52.00 |
| A | Pulley dist. | 46.80 |
| i | Grooves/pulley | 6 |
| j | Radius | 90.00 |
| j | Radius 2 | 90.00 |
| k | Position B + | M8 |
| n | Rotation | Cr |
| o | Plug no. 1 | PL_NA |
| R | Total length mm | 207.50 |
Replacing | |
|---|---|
| 12311247288 | BMW |
| 12311247310 | BMW |
| 1247288 | BMW |
| 2541697 | VALEO |
| 2541697B | VALEO |
| a13vi78 | VALEO |
| ca1398ir | HC-PARTS |
Mounted on :
| odèle | Model série | Reference d origine du produit | Tipo of Gas | Start build | End built | Tipo engine | Engine Tipo | KW | Horse Power | Chassi type | Tipoe modèle | Engine in cm3 | Cylindres | Descrip- tion du type from |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3 | 316 | 1.6 | Unleaded | 1993 09 | 1999 04 | M43B16 | i | 75 | 102 | Coupé | 1596 | 4 | E36 | |
| 3 | 318 | 1.9 | Unleaded | 1995 07 | 2000 08 | M44B19 | Ti | 103 | 140 | Hayon | 1895 | 4 | E36 | |
| 3 | 318 | 1.9 | Unleaded | 1995 07 | 2000 08 | M44B19 (194S1) | Ti | 103 | 140 | Hayon | 1895 | 4 | E36 | |
| 3 | 318 | 1.9 | Unleaded | 1995 09 | 1999 04 | M44B19 | iS | 103 | 140 | Coupé | 1895 | 4 | E36 | |
| 3 | 318 | 1.8 | Unleaded | 1994 01 | 1999 04 | M43B18 | i | 85 | 115 | Décapotable | 1796 | 4 | E36 | |
| 3 | 316 | 1.6 | Unleaded | 1994 03 | 2000 08 | M43B16 | i | 75 | 102 | Hayon | 1596 | 4 | E36 | |
| 3 | 316 | 1.6 | Unleaded | 1993 07 | 1998 02 | M40B16 | i | 75 | 102 | 1596 | 4 | E36 | ||
| 3 | 318 | 1.9 | Unleaded | 1995 09 | 1999 04 | M44B19 (194S1) | iS | 103 | 140 | Coupé | 1895 | 4 | E36 | |
| 3 | 318 | 1.8 | Unleaded | 1995 07 | 1999 10 | M43B18 | i | 85 | 116 | Break | 1796 | 4 | E36 | |
| 3 | 318 | 1.9 | Unleaded | 1995 09 | 1998 02 | M44B19 | iS | 103 | 140 | 1895 | 4 | E36 |
| 3 | 316 | 1.6 | Unleaded | 1996 01 | 1999 10 | M43B16 | i | 75 | 102 | Break | 1596 | 4 | E36 | |
| 3 | 316 | 1.6 | Unleaded | 1993 07 | 1998 02 | M43B16 | i | 75 | 102 | 1596 | 4 | E36 | ||
| 3 | 318 | 1.8 | Unleaded | 1993 03 | 1997 09 | M42B18 | iS | 103 | 140 | 1796 | 4 | E36 | ||
| 3 | 318 | 1.8 | Unleaded | 1992 03 | 1995 10 | M42B18 | iS | 103 | 140 | Coupé | 1796 | 4 | E36 | |
| 3 | 318 | 1.8 | Unleaded | 1994 11 | 1995 08 | M42B18 | Ti | 103 | 140 | Hayon | 1796 | 4 | E36 | |
| 3 | 316 | 1.9 | Unleaded | 1998 12 | 2000 08 | M43B19 (194E1) | i | 77 | 105 | Hayon | 1895 | 4 | E36 | |
| 3 | 316 | 1.6 | Gasoline/gas | 1995 12 | 2000 08 | M43B16 | G | 75 | 102 | Hayon | 1596 | 4 | E36 | |
| 3 | 318 | 1.9 | Unleaded | 1995 09 | 1998 02 | M44B19 (194S1) | iS | 103 | 140 | 1895 | 4 | E36 | ||
| 3 | 318 | 1.8 | Unleaded | 1993 10 | 1998 02 | M43B18 | i | 85 | 115 | 1796 | 4 | E36 | ||
| 5 | 518 | 1.8 | Diesel | 1995 11 | 1996 06 | M43B18 | i | 85 | 115 | Break | 1796 | 4 | E34 |
<td class="col-no-wrap" style="padding:5px;float:none;line-height:1.4285
| 5 | 518 | 1.8 | Unleaded | 1989 08 | 1995 09 | M43B18 | i | 85 | 115 | 1796 | 4 | E34 | ||
| 5 | 518 | 1.8 | Unleaded | 1994 09 |
