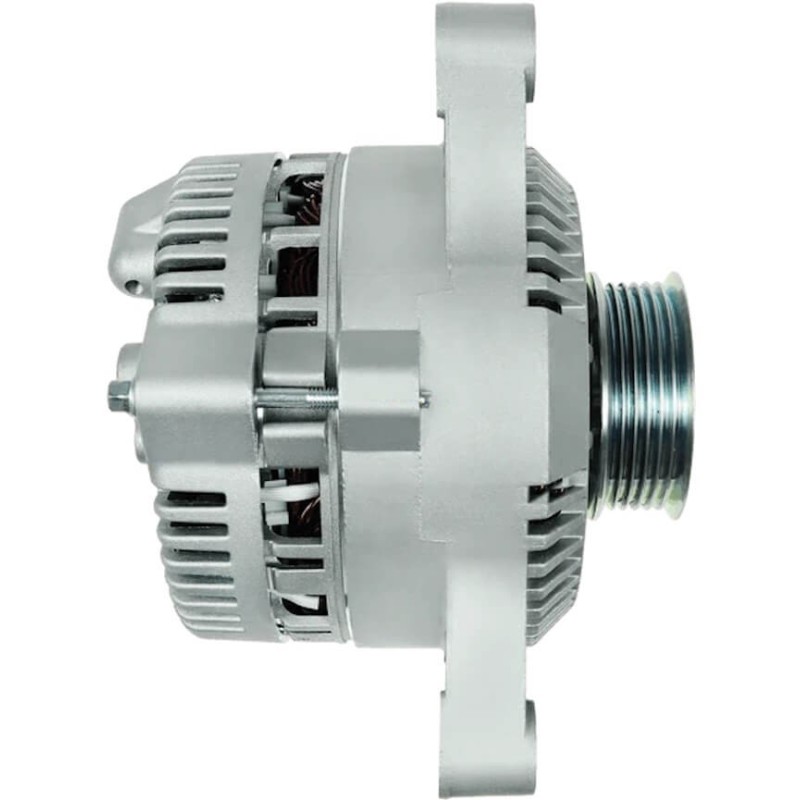

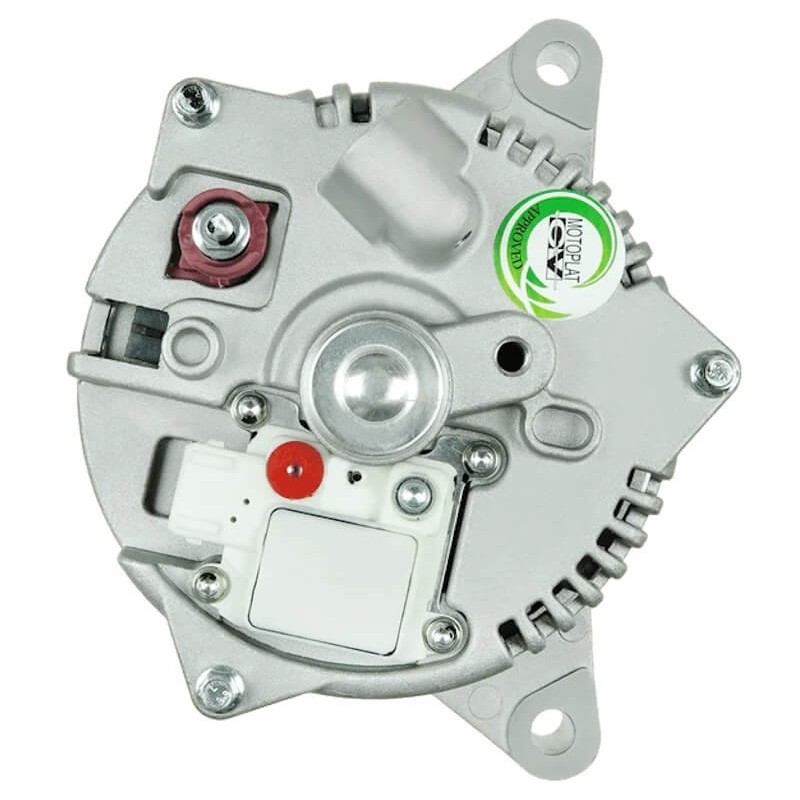

Alternator replacing 96BB-10300-AA / 96BB-10300-AB / 96BB-10300-AE / 96BB-10300-BA
Alternator for FORD / MERCURY
= FORD 1035755 / 1104931/ 96BB10300AA / 96BB10300AB
96BB10300BA / 96BB10300BB / 96BB10300BC
96BB10300BD / 96BB10300BE / F5PU10346BA
F5RU10300BA / F5RU10300BB / F5RU10300BC
F5RU10346BA / F5RU10346BC / F5RZ10346B
F5RZ10346BB / F5RZ10346BC / F6RU10300AA
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
More info
Information:
Voltage 14
Amp 130
D = Bracket hole 11.50
G = Belt. adj. bracket hole 11.50
B = Width/holder arm 25.75
E = Belt. adj. brackethole pos. 50
H = Pulley dia. 65.00
A = Pulley dist. 49.00
Grooves/pulley 6
J = Radius 104.70
J = Radius 104.65
Position B + M6
Rotation Cr

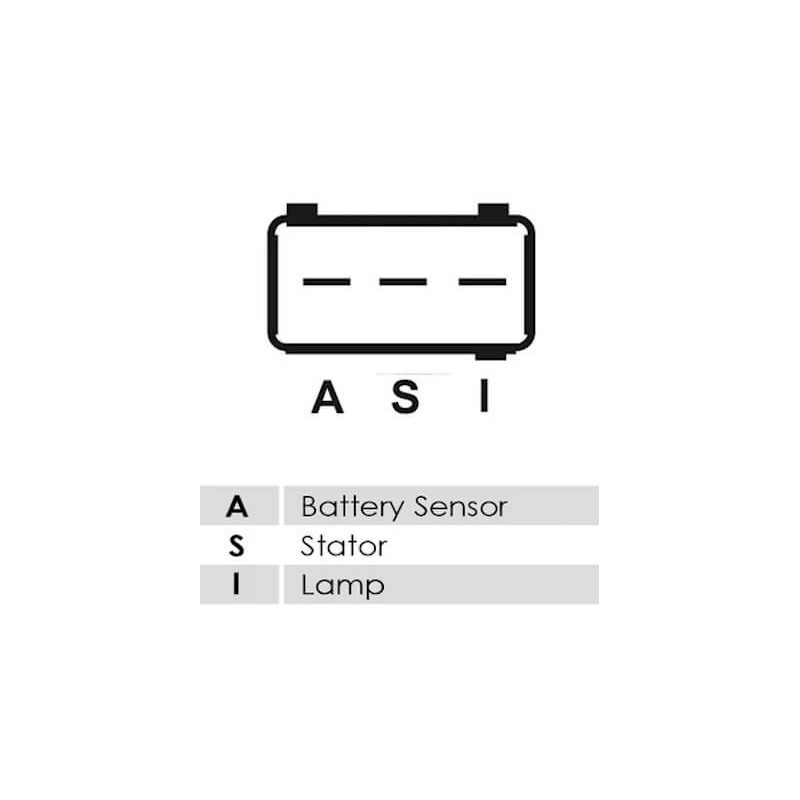

Plug no. 1 PL51
Fan If
Pulley Serpentine Pulley
Remarks Replacing: 3G séries.
R = Total length mm 169.00
generic brand
= FORD 1035755 / 1104931/ 96BB10300AA / 96BB10300AB
96BB10300BA / 96BB10300BB / 96BB10300BC
96BB10300BD / 96BB10300BE / F5PU10346BA
F5RU10300BA / F5RU10300BB / F5RU10300BC
F5RU10346BA / F5RU10346BC / F5RZ10346B
F5RZ10346BB / F5RZ10346BC / F6RU10300AA
F6RZ10346BB / GL347 / GL385 / GL416
GL481 / R96BB10300BA / XS9110300AB
fits:
FORD
| Cougar | Cougar | 2.5 | Unleaded | 2000 01 | 2001 12 | SGA | i | 151 | 205 | Coupé | 2495 | 6 | EC |
| Cougar | Cougar | 2.5 | Unleaded | 1998 08 | 2001 12 | LCBA | V6 24V | 125 | 170 | Coupé | 2544 | 6 | EC_ |
| Monfromo | Monfromo | 2.5 | Unleaded | 2000 06 | 2000 11 | SEB | 24V | 125 | 170 | Break | 2495 | 6 | BNP |
| Monfromo | Monfromo | 2.5 | Unleaded | 2000 06 | 2000 11 | SEC | 24V | 125 | 170 | Break | 2495 | 6 | BNP |
| Monfromo | Monfromo | 2.5 | Unleaded | 1994 07 | 1996 08 | SEA | i 24V | 125 | 170 | Break | 2544 | 6 | |
| Monfromo | Monfromo | 2.5 | Unleaded | 1996 09 | 2000 11 | SEA | 24V | 125 | 170 | 2544 | 6 | BFP | |
| Monfromo | Monfromo | 2.5 | Unleaded | 1996 09 | 2000 11 | SEA | 24V | 125 | 170 | Hayon | 2544 | 6 | BAP |
| Monfromo | Monfromo | 2.5 | Unleaded | 1996 09 | 2000 11 | SEA | 24V | 125 | 170 | Break | 2544 | 6 | BNP |
MERCURY
| Cougar | Cougar | 2.5 | Unleaded | 1999 01 | 2001 01 | 0 | 0 | 2450 | 6 | ||
| Cougar | Cougar | 2.5 | Unleaded | 2001 01 | 2001 01 | 0 | 0 | S | 2450 | 6 | |
| Cougar | Cougar | 2.5 | Unleaded | 2002 01 | 2002 01 | 0 | 0 | 2450 | 6 | ||
| Mystique | Mystique | 2.5 | Unleaded | 1995 01 | 1998 01 | 0 | 0 | GS | 2450 | 6 | |
| Mystique | Mystique | 2.5 | Unleaded | 1996 01 | 1998 01 | 0 | 0 | LS | 2450 | 6 | |
| Mystique | Mystique | 2.5 | Unleaded | 1995 01 | 1995 01 | 0 | 0 | Young America | 2450 | 6 | |
| Mystique | Mystique | 2.5 | Unleaded | 1999 01 | 2000 01 | 0 | 0 | 2450 | 6 |
NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
