Armature for starter Hitachi S114-800 / S114-800A / S114-800B / S114-800C
for starter HITACHI :
| s114-801A |
| s114-801B |
| s114-801C |
| s114-801D |
| s114-802A |
| s114-804 |
| s114-804A |
| s114-805 |
| s114-805A |
| s114-806 |
| s114-806A |
| s114-808 |
| s114-808A |
| s114-808B |
| s114-814 |
| s114-814A |
| s114-815 |
| s114-816 |
| s114-817 |
More info

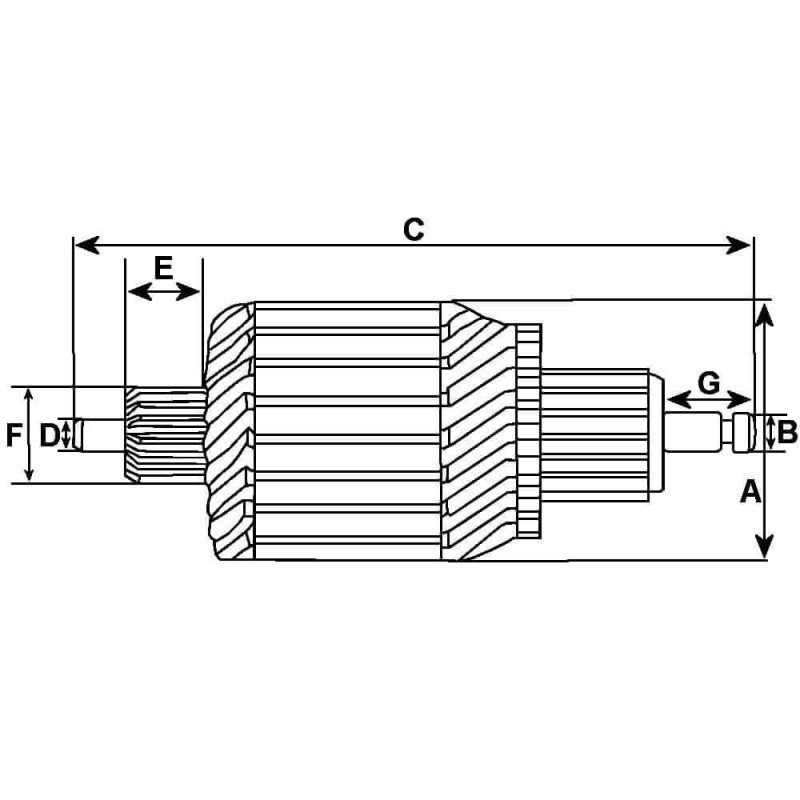

Physical information | ||
|---|---|---|
| A | Core thickness | 50.85 |
| I | Shaft dia. | 14.00 |
| C | Shaft length | 111.25 |
| Rotation | CW/CCW | |
| No./teeth | 8 | |
| E | Bar dist. | 1.80 |
| F | Bar length | 4.95 |
| G | Bar cross dist. | 36.35 |
| H | Height/bar lane | 17.95 |
| I | Height/bar | 4.90 |
| No./bars | 29 | |
Electrical information | ||
|---|---|---|
| Voltage | 12 | |
| Kw | 1.4 | |
for starter :
| S2001 | AS-PL | 11.139.334 | ISKRA / LETRIKA |
| S2002 | AS-PL | 11.139.401 | ISKRA / LETRIKA |
| S2023 | AS-PL | 8971502040 | ISUZU |
| S2027 | AS-PL | 8971502041 | ISUZU |
| S2037 | AS-PL | 8971502042 | ISUZU |
| s114-800 | HITACHI | 8971891180 | ISUZU |
| s114-800A | HITACHI | 8971891181 | ISUZU |
| s114-800B | HITACHI | 8973860620 | ISUZU |
| s114-801A | HITACHI | 8980147430 | ISUZU |
| s114-801B | HITACHI | 63280042 | MAGNETI MARELLI |
| s114-801C | HITACHI | 23300-0M302 | NISSAN |
| s114-801D | HITACHI | 23300-2J200 | NISSAN |
| s114-802A | HITACHI | 23300-2J201 | NISSAN |
| s114-804 | HITACHI | 23300-2J205 | NISSAN |
| s114-804A | HITACHI | 23300-2J206 | NISSAN |
| s114-805 | HITACHI | 23300-31U02 | NISSAN |
| s114-805A | HITACHI | 23300-5J201 | NISSAN |
| s114-806 | HITACHI | 23300-80F00 | NISSAN |
| s114-806A | HITACHI | 11923377010 | YANMAR |
| s114-808 | HITACHI | 12905277010 | YANMAR |
| s114-808A | HITACHI | 12969877010 | YANMAR |
| s114-808B | HITACHI | ||
| s114-814 | HITACHI | ||
| s114-814A | HITACHI | ||
| s114-815 | HITACHI | ||
| s114-816 | HITACHI | ||
| s114-817 | HITACHI | ||
| s114-817A | HITACHI | ||
| s114-818A | HITACHI | ||
| s114-827 | HITACHI | ||
| s114-829 | HITACHI | ||
| s114-829A | HITACHI | ||
| s114-829B | HITACHI | ||
| s114-831 | HITACHI | ||
| s114-839 | HITACHI | ||
| s114-840 | HITACHI | ||
| s114-843 | HITACHI | ||
| s114-844 | HITACHI | ||
| s114-862 | HITACHI | ||
| s114-869 | HITACHI | ||
| s114-903 | HITACHI | ||
| s114-903A | HITACHI | ||
| s114-905 | HITACHI | ||
| s114-906 | HITACHI | ||
| s114-925 | HITACHI | ||
| s114-932 | HITACHI | ||
| s114-938 | HITACHI |
generic brand
Replacing | ||
|---|---|---|
| 129698-77101 | Yanmar | |
| 137937 | HC-Cargo | |
| 2114-11111 | Hitachi | |
| 2114-11111 | Nissan | |
| 2114-21111 | Hitachi | |
| 2114-21111 | Yanmar | |
| 2114-21111 | Nissan | |
| 2114-51300 | Hitachi | |
| 23310-0M300 | Nissan | |
| 23310-31U00 | Nissan | |
