wa9083s

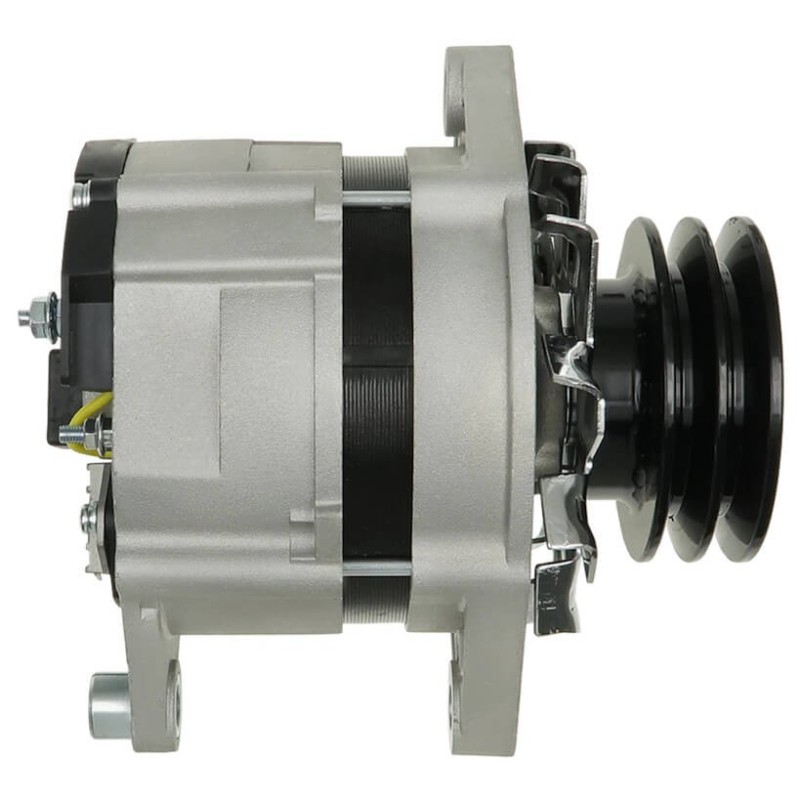

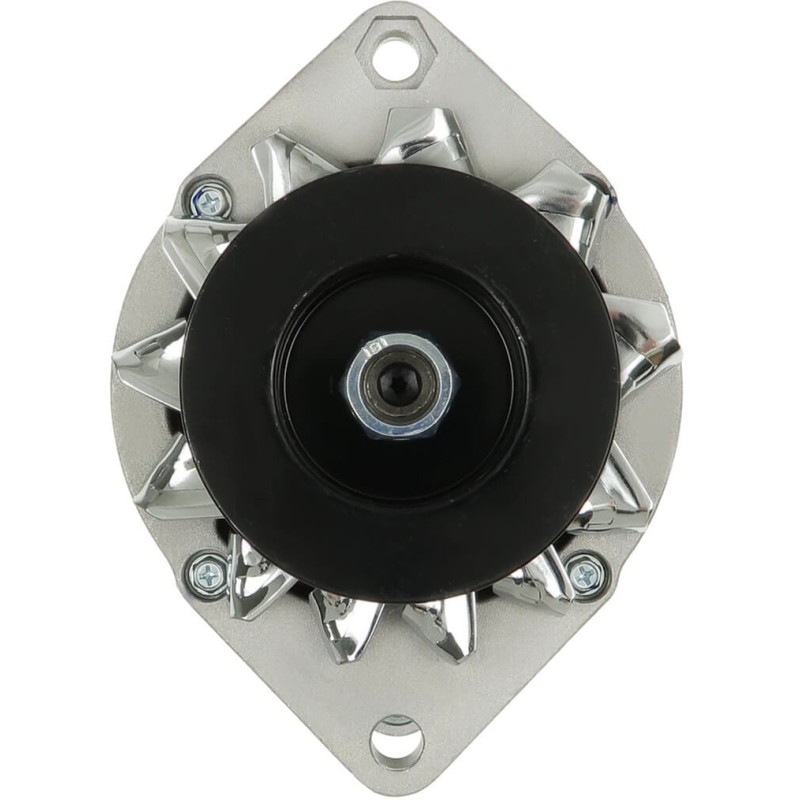

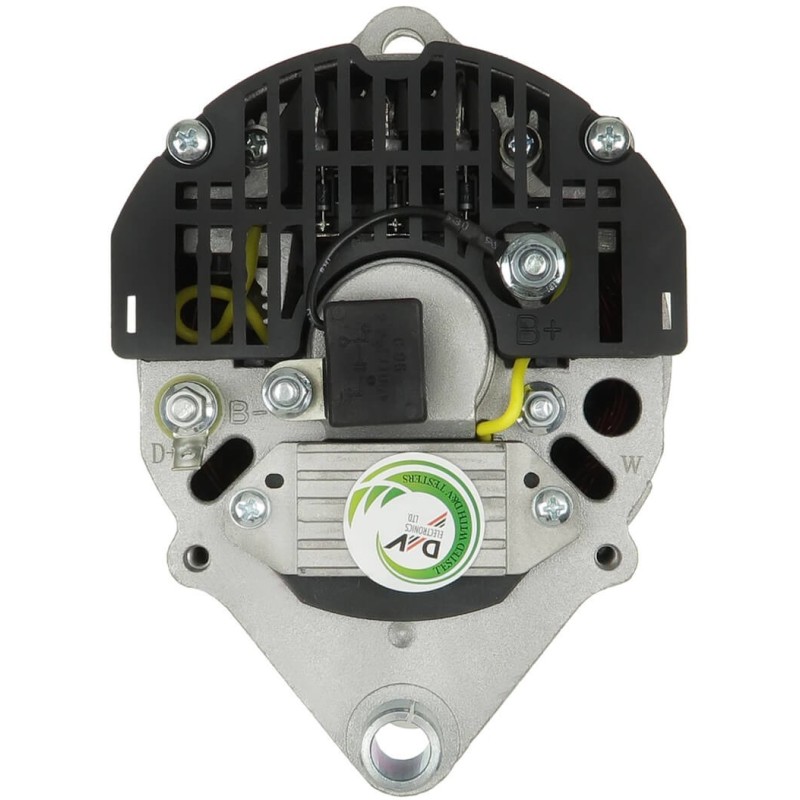

BRAND NEW 65-amp alternator with double pulley

Fitted on AGRIFULL / SAME / NEW HOLLAND agricultural tractors and LAVERDA combine harvesters

Also fits older cars such as the LANCIA Thema

Check against your original part number

Replaces

46231758 FIAT
4765931 FIAT
4765933 FIAT
4765934 FIAT
4787668 FIAT
4787671 FIAT
4798447 FIAT
4800504 FIAT
4808506 FIAT
4808510 FIAT
4808511 FIAT
4808517 FIAT
4808518 FIAT
4849157 FIAT
Read more
€119.90 Tax included
Price may vary according to your VAT rate
Fast delivery
Add product to favorites
2-year warranty
No instructions, no return of the old
Secure payments

Reference

11.201.329 ISKRA / LETRIKA
MG521 MAHLE
UD30209A AS-PL
C000900010060 AGCO
CAL21170GS CASCO
2029 CEVAM
0000004787671 FIAT
0000004849157 FIAT
0004765934 FIAT
2943925 FIAT
46231758 FIAT
4765931 FIAT
4765933 FIAT
4765934 FIAT
4787668 FIAT
4787671 FIAT
4798447 FIAT
4800504 FIAT
4808506 FIAT
4808510 FIAT
4808511 FIAT
4808517 FIAT
4808518 FIAT
4849157 FIAT
77452410 FIAT
AAK4155 ISKRA / LETRIKA
IA0329 ISKRA / LETRIKA
72735520 MAHLE
105.001.065.311 WAI
20119071OE REAL
282-30209 ROBERT'S
2021170.1 SANDO
90-15-6290 WILSON
MAHMG521 WOODAUTO
ALT79065 ELECTROLOG
294394900 DEUTZ
500322771 FIAT
556043RIM KUHNER
AIS170 AUTOTEAM
105.001.065.050 WAI
55574 EAI
113848 FARCOM
AG0152 GHIBAUDI
3110054 HENKEL PARTS
3110056 HENKEL PARTS
20021170OV ITAB AUTOMOTIVE
LEA0593 LE PART
LEA0618 LE PART
0120489212 BOSCH
574ST55 STARTCAR
12281N WAI
105.001.065.462 WAI
105.001.065.460 WAI
105.001.065.461 WAI
UD102250A AS-PL
A145.982 WAI
A129.658 WAI
2030113.1 SANDO
30709 KUHNER

Features

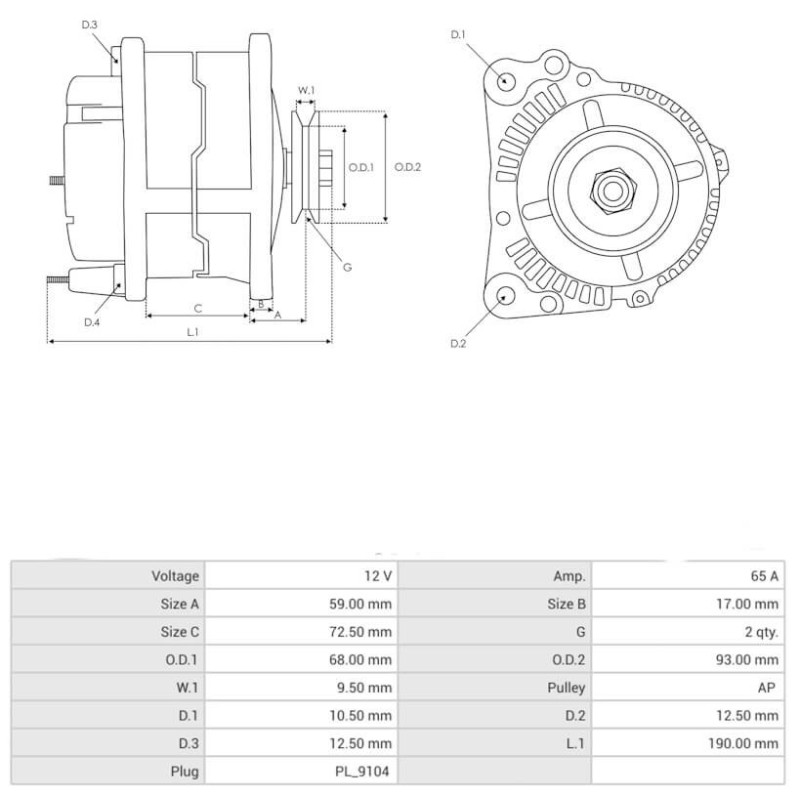

Specifications

Voltage [ V ] 12

Current [ A ] 65

Dimension A [ mm ] 59.00

Dimension B [ mm ] 17.00

Dimension C [ mm ] 72.50

G [ qty. ] 2

O.D.1 [ mm ] 68.00

O.D.2 [ mm ] 93.00

W.1 [ mm ] 9.50

Pulley AP

D.1 [ mm ] 10.50

D.2 [ mm ] 12.50

D.3 [ mm ] 12.50

L.1 [ mm ] 190.00

Plug PL_9104

Generic brand

Mounting on

Brand Model Typ Year
AGRIFULL 90 DT 4.9 8055.05.200 01/05/87
AGRIFULL 90 4.9 8055.05.200 01/05/87
AGRIFULL 100 5.4 8065.06.200 01/05/87
AGRIFULL 100 DT 5.4 8065.06.200 01/05/87
AGRIFULL 100 5.4 8065.06.300 01/05/87
AGRIFULL 100 DT 5.4 8065.06.300 01/05/87
AGRIFULL 110 5.9 8065.05.220 01/05/87
AGRIFULL 110 DT 5.9 8065.05.220 01/05/87
AGRIFULL F120 5.9 8065.05B.330 01/11/93
AGRIFULL F100 5.9 8065.06A.330 01/11/93
AGRIFULL 140 5.9 8065.25.000 01/05/87
AGRIFULL 140 DT 5.9 8065.25.000 01/05/87
ALFA ROMEO 75 (162_) 1.6 (162.B2B, 162.B2C) AR06100 05.1985 - 09.1989
ALFA ROMEO 75 (162_) 1.6 Cat (162.B2B, 162.B2C) AR61101 05.1989 - 02.1992
ALFA ROMEO 75 (162_) 2.0 TD (162.BD, 162.BG) VM80A 05.1985 - 09.1992
ALFA ROMEO 75 (162_) 2.4 TD (162B5) VM81A 01.1989 - 02.1992
FIAT DUCATO Panorama (280_) 1.9 D 149B1.000 02.1987 - 08.1990
FIAT DUCATO Platform/Chassis (290_) 1.9 TD 280A1.000 03.1989 - 03.1994
FIAT DUCATO Panorama (280_) 1.9 TD 280A1.000 03.1989 - 08.1990
FIAT DUCATO Van (290_) 1.9 TD 280A1.000 03.1989 - 03.1994
FIAT DUCATO Panorama (290_) 1.9 TD 280A1.000 07.1990 - 03.1994
FIAT 1000 1000S 8065.04.200 01.1976 - 12.1979
FIAT 90 110-90 8065.05.220 10.1986 - 12.1988
FIAT 90 115-90 8065.05.000 01.1984 - 12.1990
FIAT 90 115-90 8065.05.000 01.1984 - 12.1990
FIAT 1000 1180 8065.04.200 01.1979 - 12.1984
FIAT 1000 1180 8065.04.200 01.1979 - 12.1984
FIAT 1000 1280 8065.24.300 01.1979 - 12.1984
FIAT 90 130-90 8065.25.010 01.1984 - 12.1990
FIAT 1000 1300S CP3-100 01.1976 - 12.1979
FIAT 1000 1300S CP3-100 01.1976 - 12.1979
FIAT 90 140-90 8065.25.080 01.1984 - 12.1993
FIAT CROMA (154_) 2500 D 8144.67 12.1985 - 12.1989
FIAT CROMA (154_) 2500 TD (154.AE) 8144.91.2000 12.1985 - 08.1989
FIAT CROMA (154_) 2500 TD (154.LL, 154.PL) 8144.97 05.1989 - 08.1996
FIAT CROMA (154_) 2500 TD (154.LL, 154.PL) 8144.97.2400 05.1989 - 08.1996
FIAT CROMA (154_) 2500 TD (154.LL, 154.PL) 8144.97Y 05.1989 - 08.1996
FIAT CROMA (154_) 2500 TDE 8144.97S 12.1991 - 08.1996
FIAT 90 60-90 8035.05.214 01.1984 - 12.1992
FIAT 90 60-90 8035.05.215 01.1984 - 12.1992
FIAT 90 65-90 8045.06.213 01.1987 - 12.1992
FIAT 600 Serie 666 8045.02 01.1982 - 12.1986
FIAT 600 Serie 680 8045.02 01.1978 - 12.1984
FIAT 700 780 8045.04.270 01.1978 - 12.1984
FIAT 90 85-90 8045.25.210 01.1987 - 12.1992
FIAT 90 85-90 8045.25.310 01.1987 - 12.1992
FIAT 800 880 C03-130 01.1978 - 12.1980
FIAT 800 880/5 8055.04.200 01.1980 - 12.1984
FIAT F F 100 8065.05.210 01.1993 - 12.1996
FIAT F F 110 8065.05.220 01.1990 - 12.1993
FIAT F F 110 8065.05.300 01.1990 - 12.1993
FIAT F F 115 8065.05.000 01.1993 - 12.1996
FIAT F F 120 8065.05.000 01.1990 - 12.1993
FIAT F F 130 8065.25.010 01.1990 - 12.1996
FIAT F F 140 8065.25.080 01.1990 - 12.1996
FISSORE Rayton 4x4 2.4 TD HR492HIM 01/03/88
HURLIMANN H 6165 Master DT 1000.6WTI 01/05/91
HURLIMANN H 476 XF DT REV 3.0 1000.3WT 01/05/91
HURLIMANN H 6190 Master DT 6.0 1000.6WTIR 01.1992 - 12.2001
LAMBORGHINI 660 AGILE 3.0 1000.3A 01.1986 - 12.1997
LAMBORGHINI 775 F Plus 3.0 1000.3WT 01/05/91
LAMBORGHINI 115 Formula 6.0 1000.6W 01/12/89
LAMBORGHINI 135 Formula 6.0 1000.6WT 01/12/89
LAMBORGHINI 165 Racing 6.0 1000.6WTI 01/05/91
LAMBORGHINI 190 Racing 6.0 1000.6WTIR 01/01/92
LANCIA THEMA (834_) 2500 Turbo D (834D) 8144.91 11.1984 - 09.1988
LANCIA THEMA (834_) 2500 Turbo DS (834AE) 8144.97 06.1988 - 05.1992
LANCIA THEMA SW (834_) 2500 Turbo DS (834AE) 8144.97 06.1988 - 05.1992
LANCIA THEMA (834_) 2500 Turbo DS (834AM) 8144.97S 05.1988 - 07.1992
LANCIA THEMA SW (834_) 2500 Turbo DS (834AM) 8144.97S 05.1988 - 07.1992
LANCIA THEMA SW (834_) 2500 Turbo DS (834D) 8144.91 03.1987 - 09.1990
LANCIA THEMA (834_) 2500 Turbo DS (834FE, 834LE) 8144.97Y 05.1992 - 07.1994
LANCIA THEMA SW (834_) 2500 Turbo DS (834FE, 834LE) 8144.97Y 09.1992 - 07.1994
LAVERDA L 624 8.1 8361.25SR10 01/03/92
LAVERDA L 624 H 8.1 8361.25SR10 01/03/92
LAVERDA 3850 8.1 8361S10 01/01/91
LAVERDA L 521 H 8.1 8361SI10 01/03/92
LAVERDA L 521 I 8.1 8361SI10 01/03/92
LAVERDA 3790 8.1 8361SI10.00 01/06/85
MUZZI MDS 54 1000.4AT 01/01/89
MUZZI MDS 72 1056P 01/01/89
MUZZI MDS 90 1056PS 01/01/89
MUZZI MDS 110 1056PTI 01/12/86
MUZZI MDS 44 4.0 1000.4A 01/01/89
MUZZI MD 65 6.2 1056PT 07.1983 - 12.1988
NEW HOLLAND Series 90 100-90   01/01/93
NEW HOLLAND Series 90 110-90 8061.05 01/01/93
NEW HOLLAND Series 90 110-90 8065.E 01/01/93
NEW HOLLAND Series 90 140-90   01/01/93
NEW HOLLAND Series 90 160-90   01/01/93
NEW HOLLAND Series 90 180-90 8365.25.500 01/01/93
SAME Frutteto 60 DR 3.0 1000.3A 01/05/91
SAME Frutteto 75 2RM 3.0 1000.3AT 01/05/91
SAME Antares 100 6.0 1000.6A 03.1989 - 03.2004
SAME Antares 100 6.0 1000.6A 12.1989 - 01.2004
SAME Antares 130 6.0 1000.6A 12.1989 - 01.2004
SAME Antares 130 6.0 1000.6AT 12.1989 - 01.2004
SAME Antares 100 6.0 1000.6AT 12.1989 - 01.2004
VM HR 1.8 329SHTR 01/01/86
