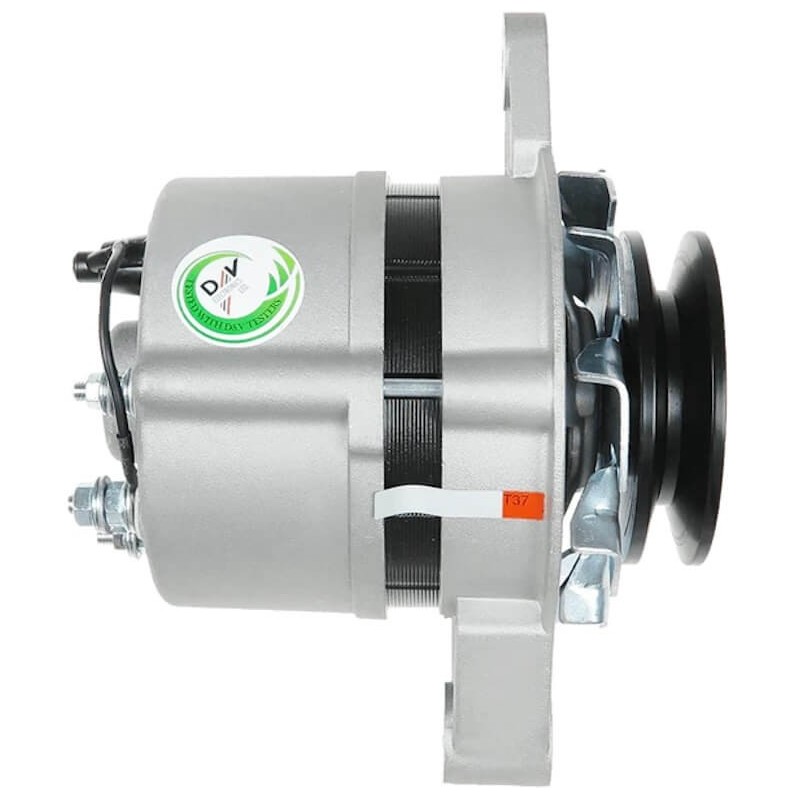

Alternator replacing ISKRA 11.201.095 / AAG1310 / IA0095

Information:

Voltage 14

Amp 33

borne w

D = Bracket hole 9.90

G = Belt. adj. bracket hole 7.95

B = Width/holder arm 27.10

E = Belt. adj. brackethole pos. 60

H = Pulley dia. 79.80

A = Pulley dist. 58.00

Grooves/pulley 1

J = Radius 83.30

J = Radius 86.75

Position B + M6

Rotation Cr

Plug no. 1 PL22

Fan Ef

Pulley Pulley

Replacing :

LUCAS 23865, 23865A, 23880, 23880A, 24019, 24019A, 24022, 24022A, 24087, 24087A/D, 24087B,
MAGNETON 9-515-020
MASSEY FERGUSON 1897-264-M91
MOTOROLA 9AR2547F, 9AR2548F, 9AR2549F
VALEO 510-038, 510-039, 510-040

= DELCO REMY DRA3458

=  LUCAS LRA361

= ISKRA IA0095  / AAG1310

= HELLA 8EL725896001

= MOTOROLA 9AR2547
= 5174SP / 66021583 / 705001033 / 9120143200 / 9120143201

fitsMASSEY FERGUSON :

- mf135.4 engine ADA.203 from 01/66 to 12/81

- mf140 / mf145 / mf148 after 04/1981

- mf152 / mf154 / mf154c engine perkins after 04/1981

- mf165 / mf168 engine perkins front 04/1981

- mf174 / mf174c engine perkins front 04/1981

- mf175 / mf178 engine perkins 4.248 / 4.300Starting 01/1970

- mf185 / mf188 engine perkins 4.248 / 4.300Starting 01/1970

- mf188 engine perkins 4.248 / 4.300Starting 01/1970

- mf194 engine perkins front 04/1982

- mf200 / mf200b engine perkins from /69 to 12/72

 - mf2203 / mf2205Starting 01/69

- mf250 / mf255Starting 01/77

- mf260 / mf265Starting 01/1975

- mf2620 / mf2640 / mf2645Starting 01/1984

- mf390 / mf398 / mf399Starting 01/1983

- mf4500Starting 01/73

- mf50 engine A4.236Starting 01/1977

- mf535Starting 01/1977

- mf5500Starting 01/1971

NO CORE EXCHANGE NEEDED
TWO YEARS WARRANTY
